Xerox PHASER 3635 Service Manual

5-12
Phaser 3635MFP
PL 5.30
Draft 4
Parts List

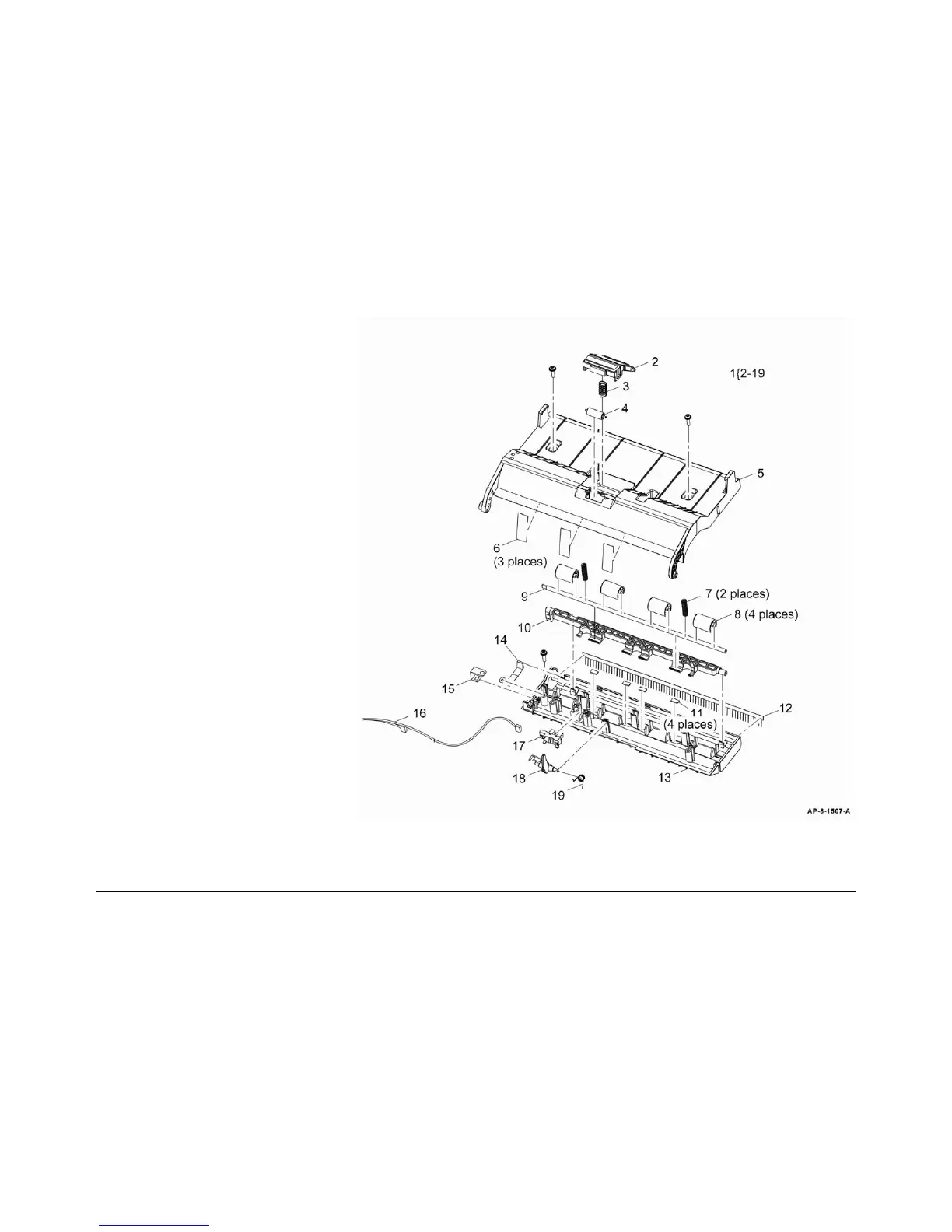

PL 5.30 DADF (5 of 7)
Item Part Description
1 022N02359 Feed assembly (Complete) (REP
5.4)
2 003N01030 Retard pad assembly
3 – Retard pad spring (P/O PL 5.30
Item 1)
4 – Feed roll idler (P/O PL 5.30 Item 1)
5 – Upper cover (P/O PL 5.30 Item 1)
6 – Mylar (P/O PL 5.30 Item 1)
7 – Exit idler spring (P/O PL 5.30 Item
1)
8 – Exit idler (P/O PL 5.30 Item 1)
9 – Exit idler shaft (P/O PL 5.30 Item 1)
10 – Exit idler lifting bracket (P/O PL
5.30 Item 1)
11 – Upper damper (P/O PL 5.30 Item 1)
12 – Static eliminator (P/O PL 5.30 Item
1)
13 – Lower cover (P/O PL 5.30 Item 1)
14 – Ground strip (P/O PL 5.30 Item 1)
15 – Ground strip (P/O PL 5.30 Item 1)
16 – Document detect sensor harness
(P/O PL 5.30 Item 1)
17 130N01274 Document detect sensor (Q05-100)
18 – Document detect sensor actuator
(P/O PL 5.30 Item 1)
19 – Document detect sensor actuator
spring (P/O PL 5.30 Item 1)
