5-23

Phaser 3635MFP

PL 8.25

Parts List

Draft 4

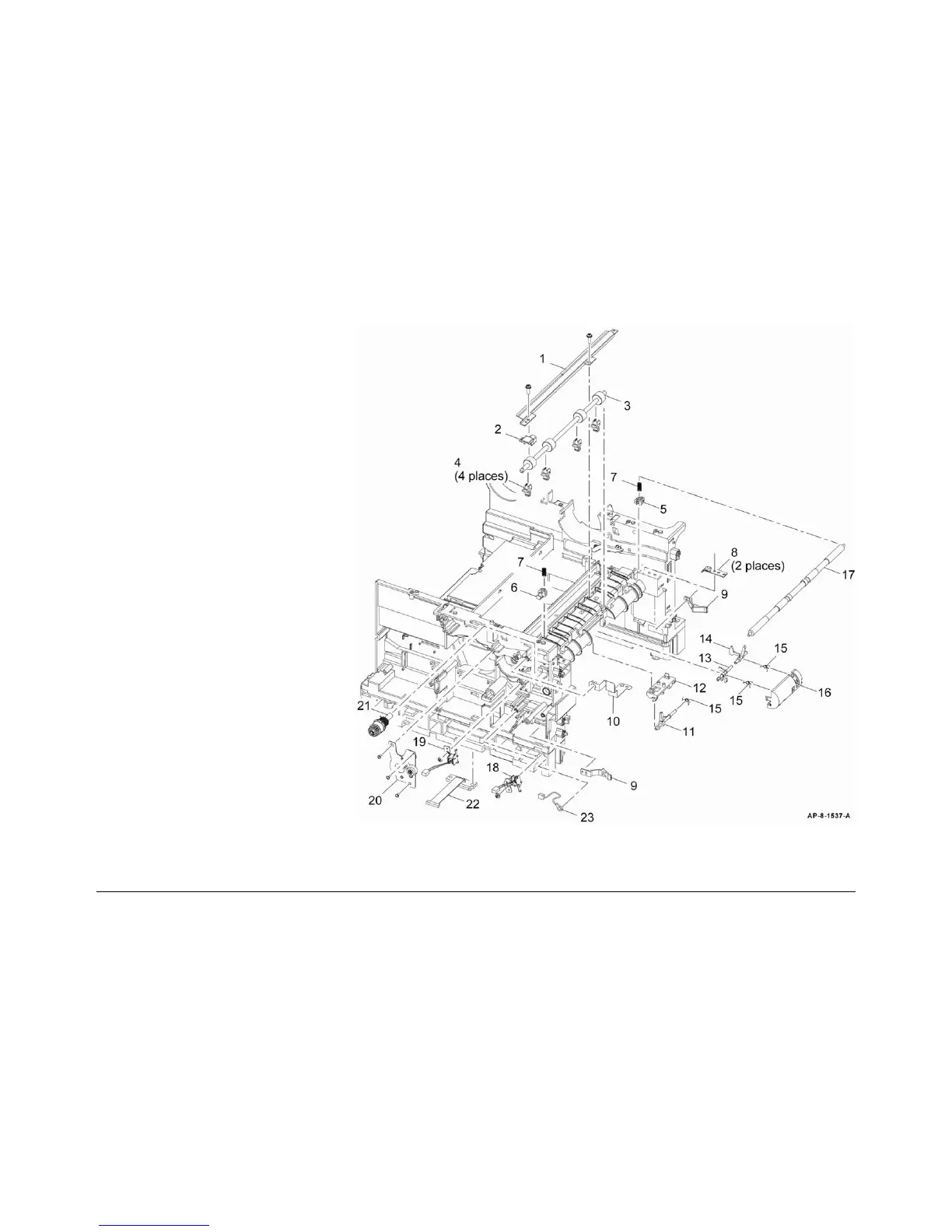

PL 8.25 Registration Rolls

Item Part Description

1 – Grounding plate (Not Spared)

2 – Grounding plate block (Not Spared)

3 – Registration roll (Not Spared)

4 – Feed roll holder (Not Spared)

5 – Rear feed roll holder (Not Spared)

6 – Front feed roll holder (Not Spared)

7 – Feed roll spring (Not Spared)

8 – Idler roll securing bracket (Not

Spared)

9 – Release latch (Not Spared)

10 – Ground strip (Not Spared)

11 – Feed sensor actuator (Not Spared)

12 – Feed sensor actuator housing (Not

Spared)

13 – Duplex jam 1 sensor actuator (Not

Spared)

14 – Registration sensor actuator (Not

Spared)

15 – Actuator spring (Not Spared)

16 – Actuator housing (Not Spared)

17 – Registration roll idler (Not Spared)

18 121N01162 Registration solenoid (SOL08-850)

(REP 7.2)

19 121N01163 Tray 1 pickup solenoid (SOL08-

810) (REP 7.2)

20 – Feed bracket (Not Spared)

21 005N01031 Registration roll clutch (REP 8.1)

22 – Tray 2 connector (Not Spared)

23 – Thermistor 2 (Not Spared) (NOTE)

NOTE: Shown for reference only. For future use.
