Xerox PHASER 3635 Service Manual

5-18
Phaser 3635MFP
PL 7.15
Draft 4
Parts List

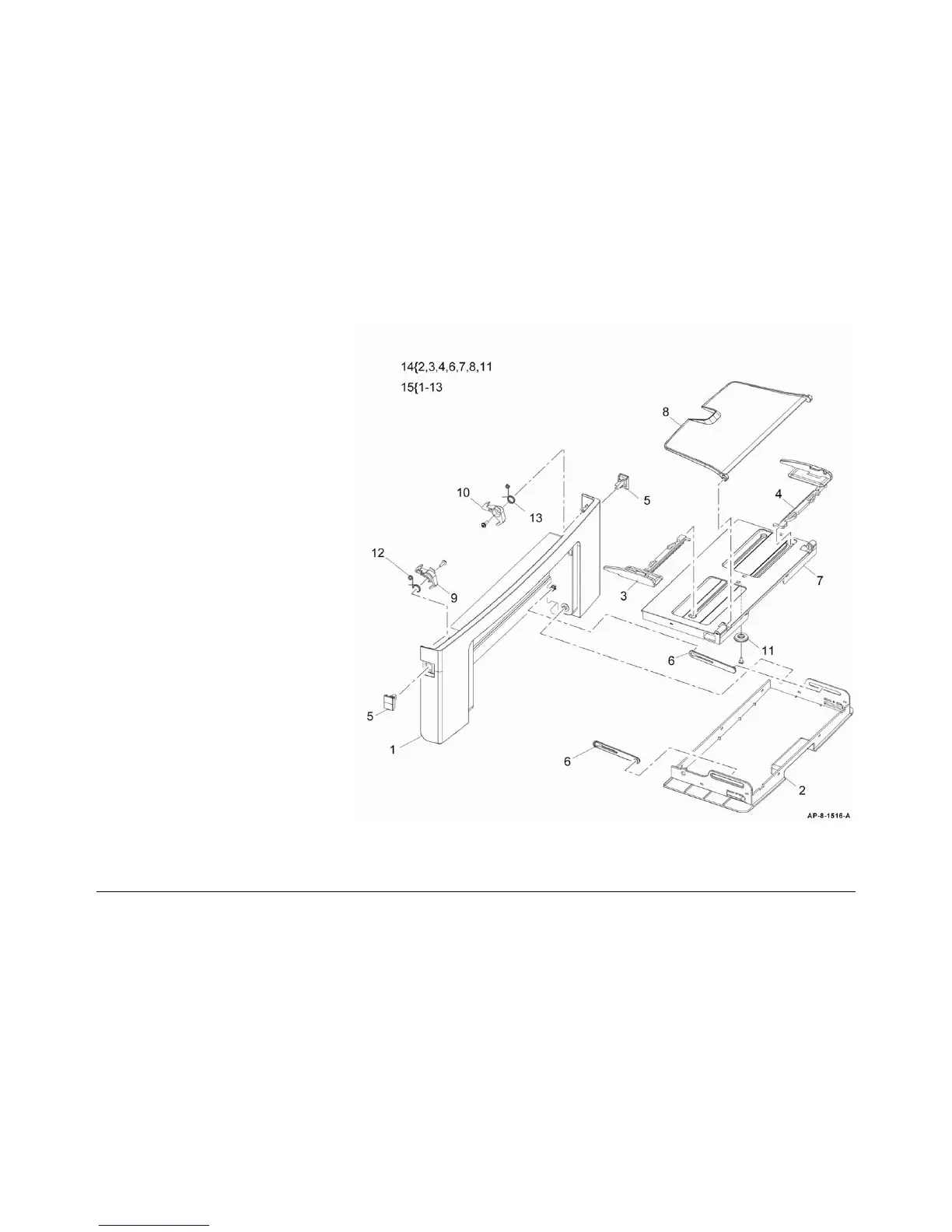

PL 7.15 Front Cover Assembly
Item Part Description
1 – Front cover (P/O PL 7.15 Item 15)
2 – Lower bypass tray cover (P/O PL
7.15 Item 15)
3 – Front document guide (P/O PL 7.15
Item 15)
4 – Rear document guide (P/O PL 7.15
Item 15)
5 – Release latch (P/O PL 7.15 Item
15)
6 – Link arm (P/O PL 7.15 Item 15)
7 – Upper bypass tray cover (P/O PL
7.15 Item 15)
8 – Tray extension (P/O PL 7.15 Item
15)
9 – Front catch (P/O PL 7.15 Item 15)
10 – Rear catch (P/O PL 7.15 Item 15)
11 – Pinion gear (P/O PL 7.15 Item 15)
12 – Front catch spring (P/O PL 7.15
Item 15)
13 – Rear catch spring (P/O PL 7.15
Item 15)
14 – Bypass tray (P/O PL 7.15 Item 15)
15 002N02718 Front cover assembly (Complete)
