4-25
Phaser 3635MFP
REP 7.5
Repairs and Adjustments
Draft 4
REP 7.5 Bypass Paper Empty Sensor
Parts List on PL 7.10
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Remove the DADF, PL 5.10 Item 1.
2. Remove the UI assembly, REP 2.1.
3. Remove the scanner assembly, REP 14.1.
4. Remove the left cover, right cover and rear cover, REP 28.1.
5. Remove the front cover assembly, PL 28.10 Item 7.
6. Remove the outbin assembly, REP 28.2.
7. Remove the front mid cover, REP 28.3.
8. Remove the bypass paper empty sensor, Figure 1.

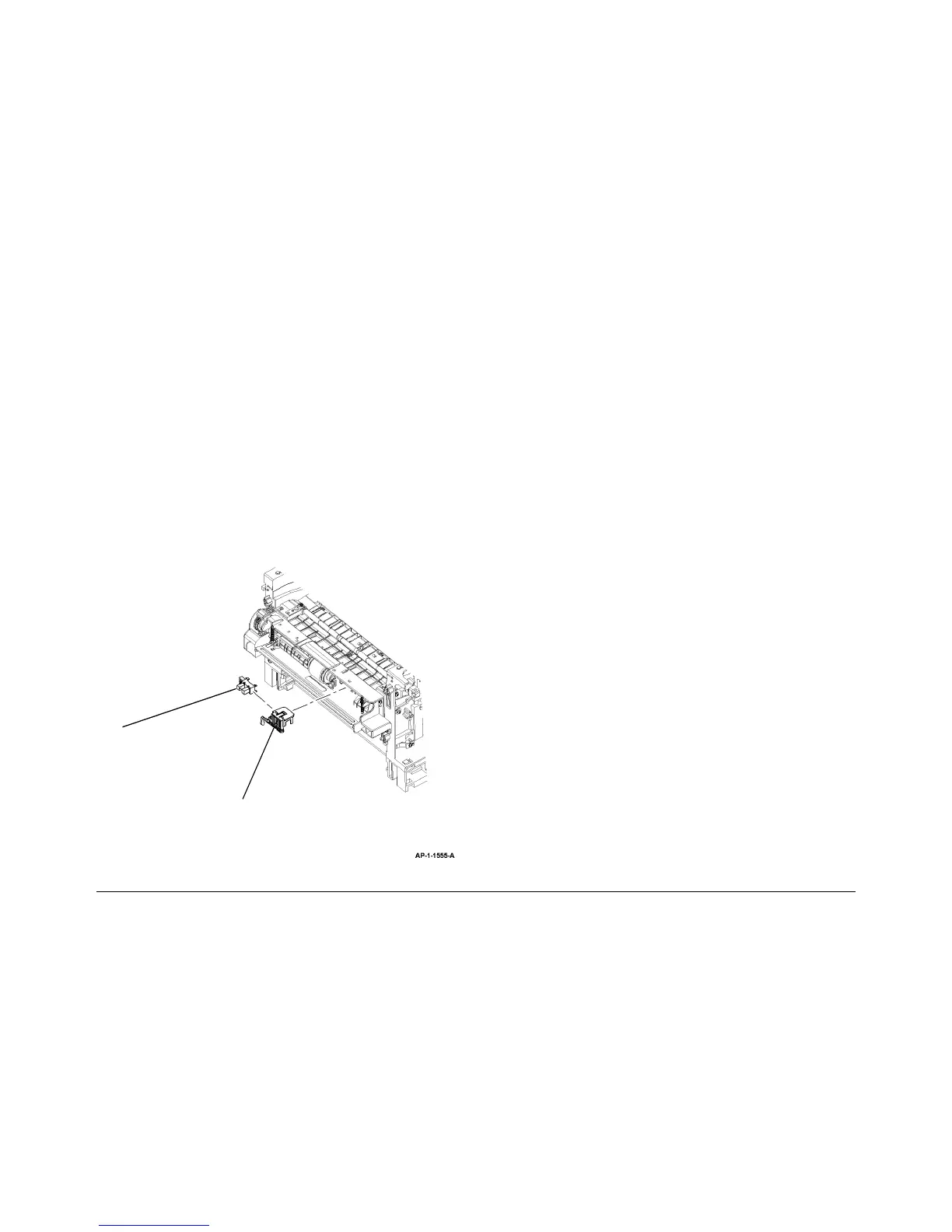

Figure 1 Sensor removal
Replacement
1. Replacement is the reverse of the removal procedure.
2. If the harness is tight it may be necessary to remove the bypass feed assembly (REP 7.1)
to allow sufficient slack to reinsnstall the sensor.
1
Remove the sensor bracket
2
Remove the bypass paper
empty sensor
