Xerox PHASER 3635 - REP 10.4 Exit Roll and Exit Idler Assemblies

4-33
Phaser 3635MFP
REP 10.3, REP 10.4
Repairs and Adjustments
Draft 4

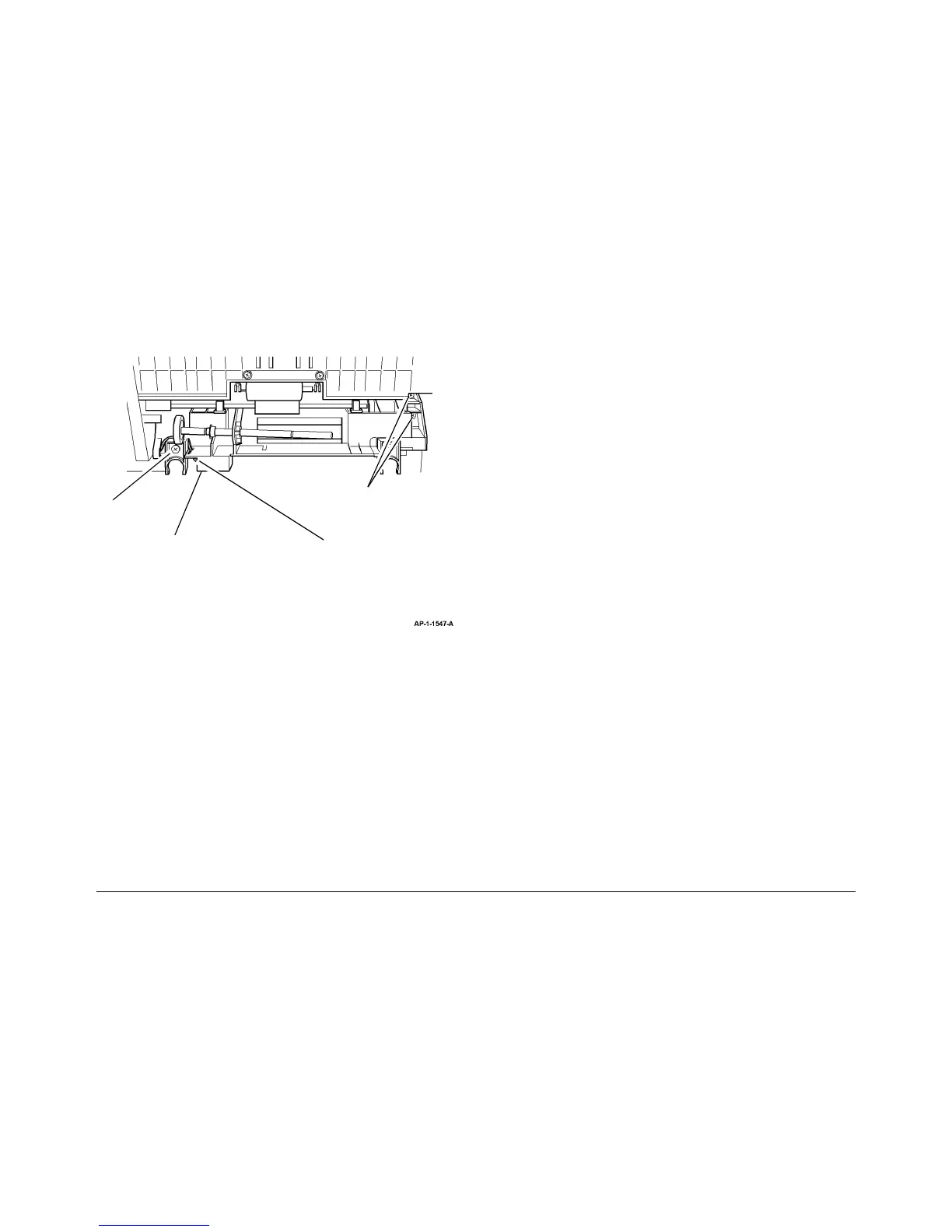

Figure 2 Front duplex guide assembly removal
9. If necessary remove the tray 1 paper empty sensor, PL 10.22 Item 1 from the front duplex
guide.
Replacement
1. Replacement is the reverse of the removal procedure.
REP 10.4 Exit Roll and Exit Idler Assemblies
Parts List on PL 10.25
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Remove the DADF, PL 5.10 Item 1.
2. Remove the left cover, right cover and rear cover, REP 28.1.
3. Remove the UI assembly, REP 2.1.
4. Remove the scanner assembly, REP 14.1.
5. Remove the exit cover assembly, PL 28.10 Item 2.
6. Remove the exit roll, PL 10.25 Item 22.
7. Remove the idler assembly, PL 10.25 Item 21 if required.
Replacement
1. Replacement is the reverse of the removal procedure.
2
Remove 2 screws.
1
Remove the
clamp.
3
Disconnect the
connector.
4
Remove the front duplex
guide assembly.
