Xerox PHASER 3635 Service Manual

5-13
Phaser 3635MFP
PL 5.35
Parts List
Draft 4

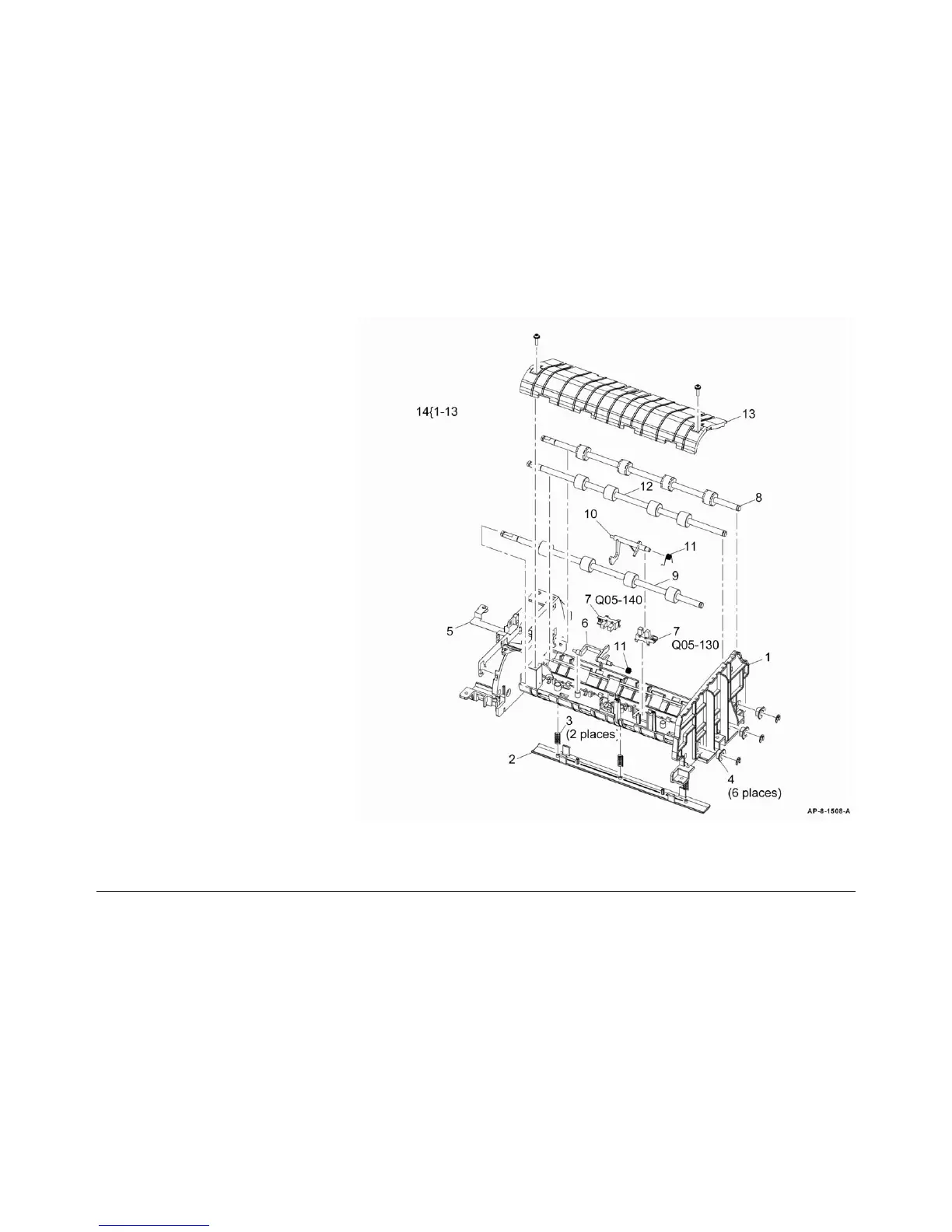

PL 5.35 DADF (6 of 7)
Item Part Description
1 – Transport assembly frame (P/O PL
5.35 Item 14)
2 – White bar plate (P/O PL 5.35 Item
14)
3 – White bar plate spring (P/O PL 5.35
Item 14)
4 – Bearing (P/O PL 5.35 Item 14)
5 – Ground strip (P/O PL 5.35 Item 14)
6 – Scan sensor actuator (P/O PL 5.35
Item 14)
7 130N01274 Registration sensor (Q05-130)
(REP 5.3), Scan sensor (Q05-140)
(REP 5.3)
8 – Exit roll (P/O PL 5.35 Item 14)
9 – Registration roll (P/O PL 5.35 Item
14)
10 – Registration sensor actuator (P/O
PL 5.35 Item 14)
11 – Registration sensor actuator spring
(P/O PL 5.35 Item 14)
12 – Scan roll (P/O PL 5.35 Item 14)
13 – Upper cover (P/O PL 5.35 Item 14)
14 022N02360 Transport assembly (Complete)
(REP 5.4)
