Xerox PHASER 3635 Service Manual

5-16
Phaser 3635MFP
PL 7.10
Draft 4
Parts List

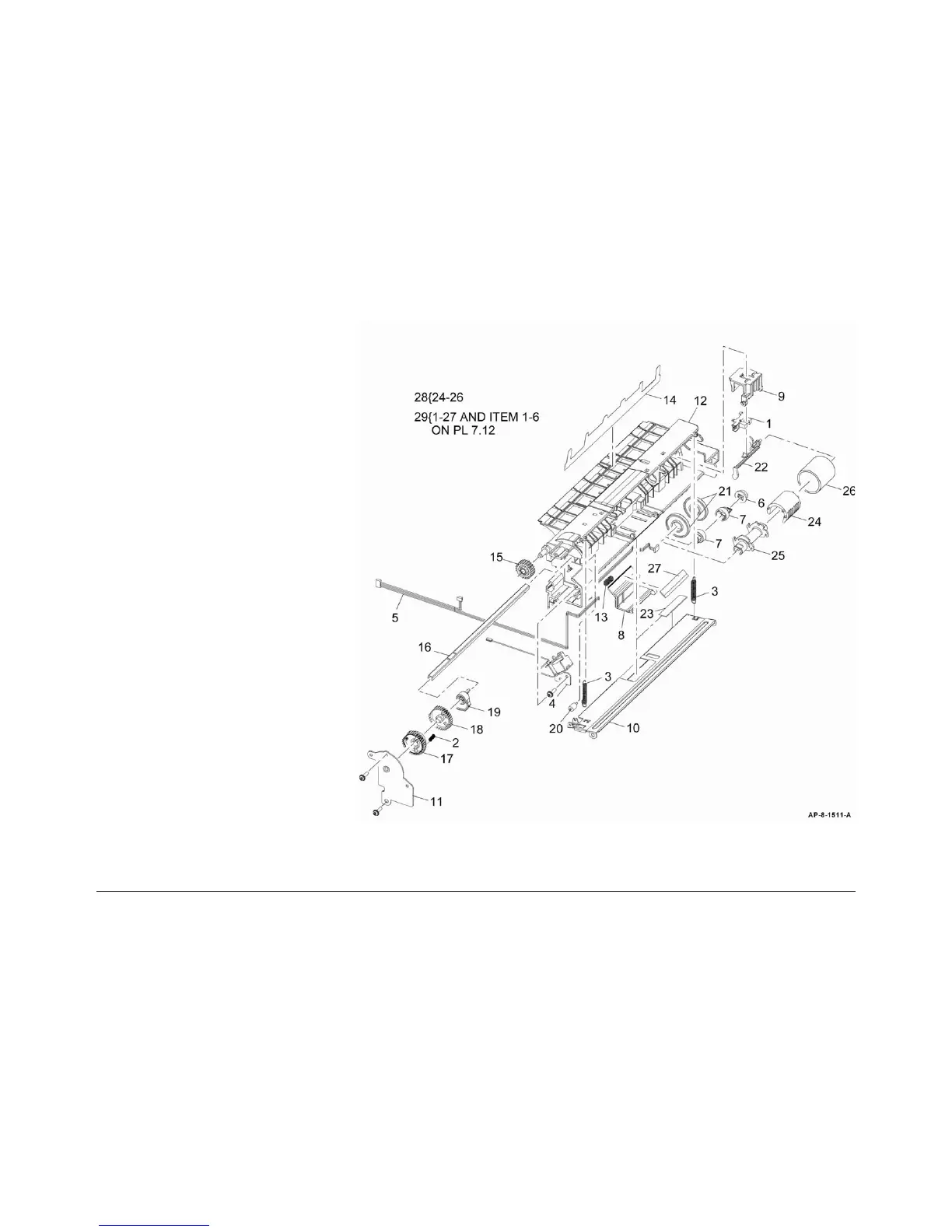

PL 7.10 Bypass Feed Assembly (1 of
2)
Item Part Description
1 130N01274 Bypass paper empty sensor (Q07-
510) (REP 7.5)
2 – Clutch spring (P/O PL 7.10 Item 29)
3 – Baffle lift spring (P/O PL 7.10 Item
29) (MEXICO)
4 – Bypass feed solenoid (SOL08-500)
(P/O PL 7.10 Item 29)
5 – Bypass paper empty sensor
harness (P/O PL 7.10 Item 29)
(REP 7.1)
6 – Bush (P/O PL 7.10 Item 29)
7 – Locking collar (P/O PL 7.10 Item
29)
8 – Retard pad holder (P/O PL 7.10
Item 29)
9 – Sensor bracket (P/O PL 7.10 Item
29)
10 – Baffle (P/O PL 7.10 Item 29)
11 – Pickup bracket (P/O PL 7.10 Item
29)
12 – Frame (P/O PL 7.10 Item 29)
13 – Spring (P/O PL 7.10 Item 29)
14 – Guide mylar (P/O PL 7.10 Item 29)
15 – Idler gear (P/O PL 7.10 Item 29)
16 – Pickup shaft (P/O PL 7.10 Item 29)
17 – Clutch (rear) (P/O PL 7.10 Item 29)
18 – Clutch (front) (P/O PL 7.10 Item 29)
19 – Pickup cam (P/O PL 7.10 Item 29)
20 – Cam roll (P/O PL 7.10 Item 29)
21 – Pickup idler (P/O PL 7.10 Item 29)
22 – Bypass paper empty sensor
actuator (P/O PL 7.10 Item 29)
23 – Lower retard pad (P/O PL 7.10 Item
29)
24 – Pickup rubber outer shaft (P/O PL
7.10 Item 29)
25 – Pickup rubber inner shaft (P/O PL
7.10 Item 29)
26 130N01534 Pickup rubber
27 – Retard pad (P/O PL 7.10 Item 29)
(NOTE)
28 – Bypass pickup roll assembly (P/O
PL 7.10 Item 29) (NOTE) (REP 7.3)
29 050N00520 Bypass feed assembly (Complete)
(REP 7.1)
NOTE: HFSI. To reset the HSFI count go to GP 16.
