Xerox PHASER 3635 Service Manual

4-16
Phaser 3635MFP
REP 5.4
Draft 4
Repairs and Adjustments

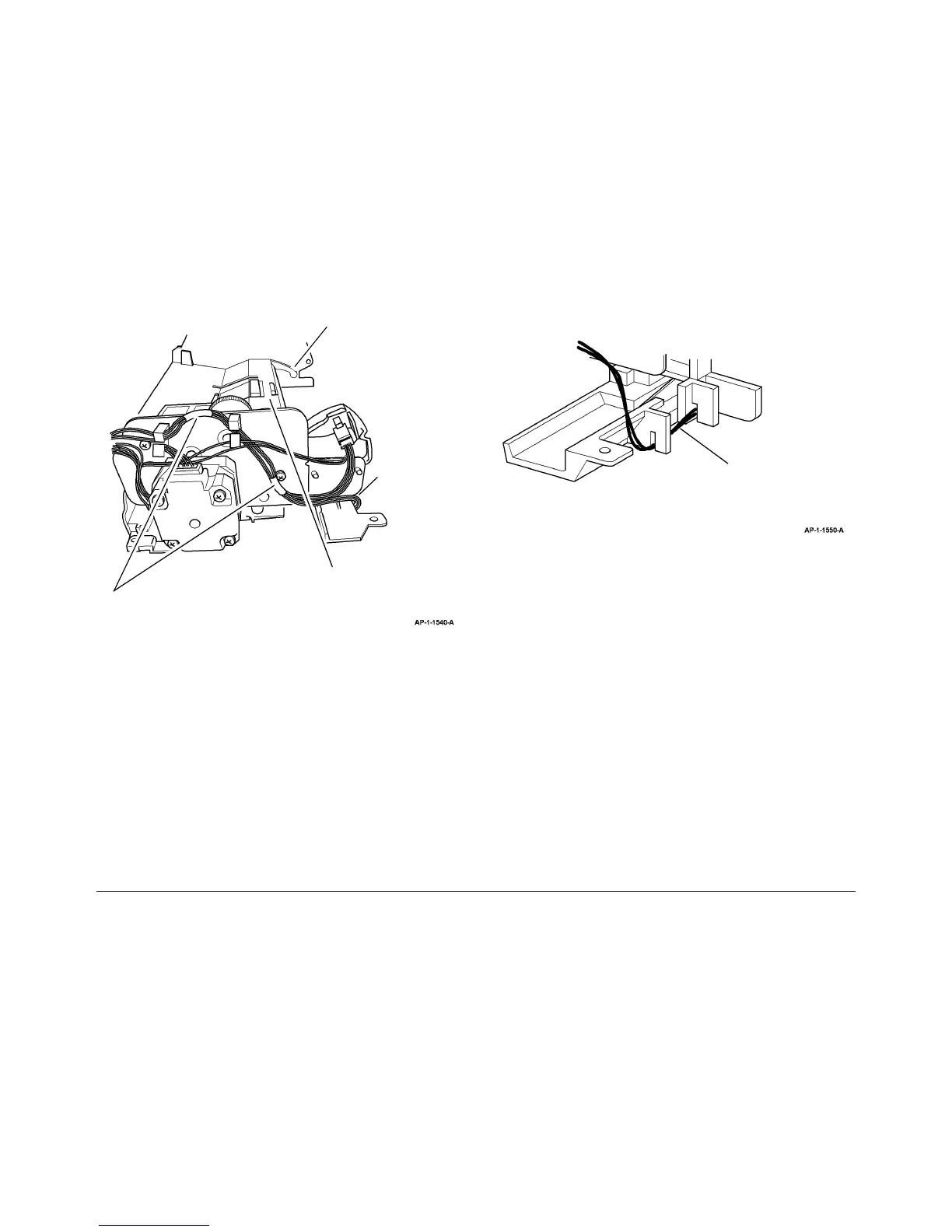

Figure 2 Feed assembly removal
Replacement
WARNING
Ensure all ground leads are connected.
1. Replacement is the reverse of the removal procedure. Make sure the document detect
sensor harness is routed correctly before reinstalling the feed assembly, refer to Figure 2
and Figure 3.
Figure 3 Harness routing
2
Separate the harnesses.
3
Remove the feed assembly.
1
Separate the feed assembly
from the transport assembly by
flexing the hinges.
Document detect
sensor harness
Document detect
sensor harness

Xerox PHASER 3635 Specifications

General

Print Technology	Laser
Print Speed	35 ppm
Print Resolution	Up to 1200 x 1200 dpi
Standard Paper Capacity	550 sheets
ADF Capacity	50 sheets
Duplex Printing	Yes
Scanner Type	Flatbed with ADF
Functions	Print, Copy, Scan, Fax
Processor	360 MHz
Connectivity	Ethernet
Maximum Paper Size	8.5 x 14 inches
Scanner Resolution	Up to 600 x 600 dpi
Network Connectivity	Ethernet
Display	7-inch color touchscreen
Weight	49 lbs
