Xerox WorkCentre 3225 User Manual

June 2014
4-44
Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.31
Repairs

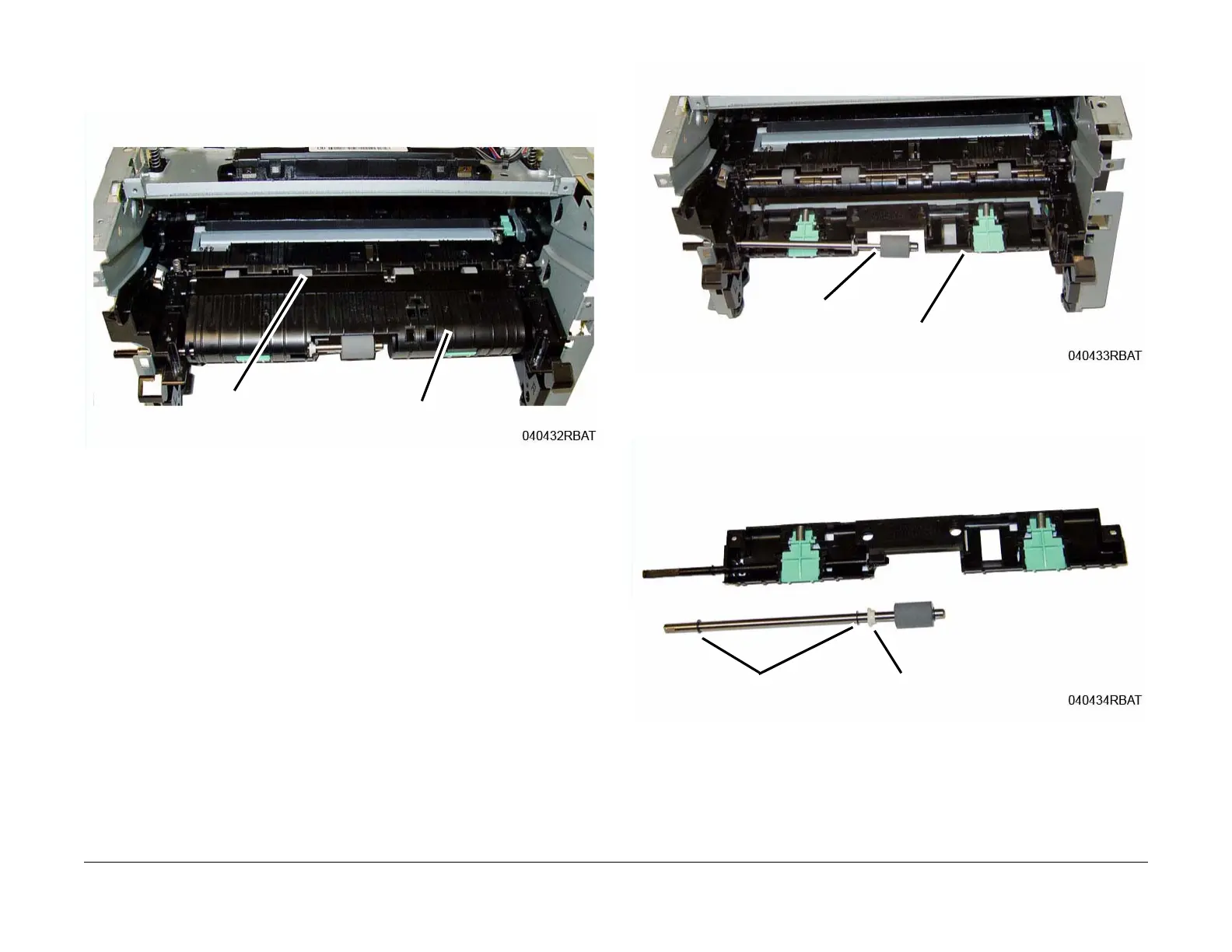

10. Remove the following (Figure 8):
a. Lift the Pinch Rolls and Paper Guide out of the printer.
b. Remove the Feed Assembly upper half.
Figure 8 Registration Pinch Rolls and Paper Guide
11. Remove the following (Figure 9):
a. The Feed Assembly lower half.
b. The Drive Roll from the lower half.
Figure 9 Feed Assembly Lower Half
12. Remove the Snap Rings and Bushing from the Drive Roll Shaft (Figure 10).
Figure 10 Drive Roll
Pinch Rolls &
Paper Guide
Upper Half
Drive Roll
Lower Half
Snap Rings Bushing

Xerox WorkCentre 3225 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 600 x 600 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Memory	128 MB
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Paper Output Capacity	120 sheets
Duplex Printing	Manual
Copy Resolution	Up to 600 x 600 dpi
First Copy Out Time	As fast as 10 seconds
Maximum Number of Copies	99 copies
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Weight	11.4 kg
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	Letter, Legal, A4, A5, B5
Operating System Compatibility	Windows, Mac, Linux
Fax Transmission Speed	Approx. 3 seconds per page
