Xerox WorkCentre 3225

June 2014
4-52
Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.34
Repairs
15. Remove the following (Figure 12):
Wire harness guide (2 screws).
High voltage contact guide (2 screws).

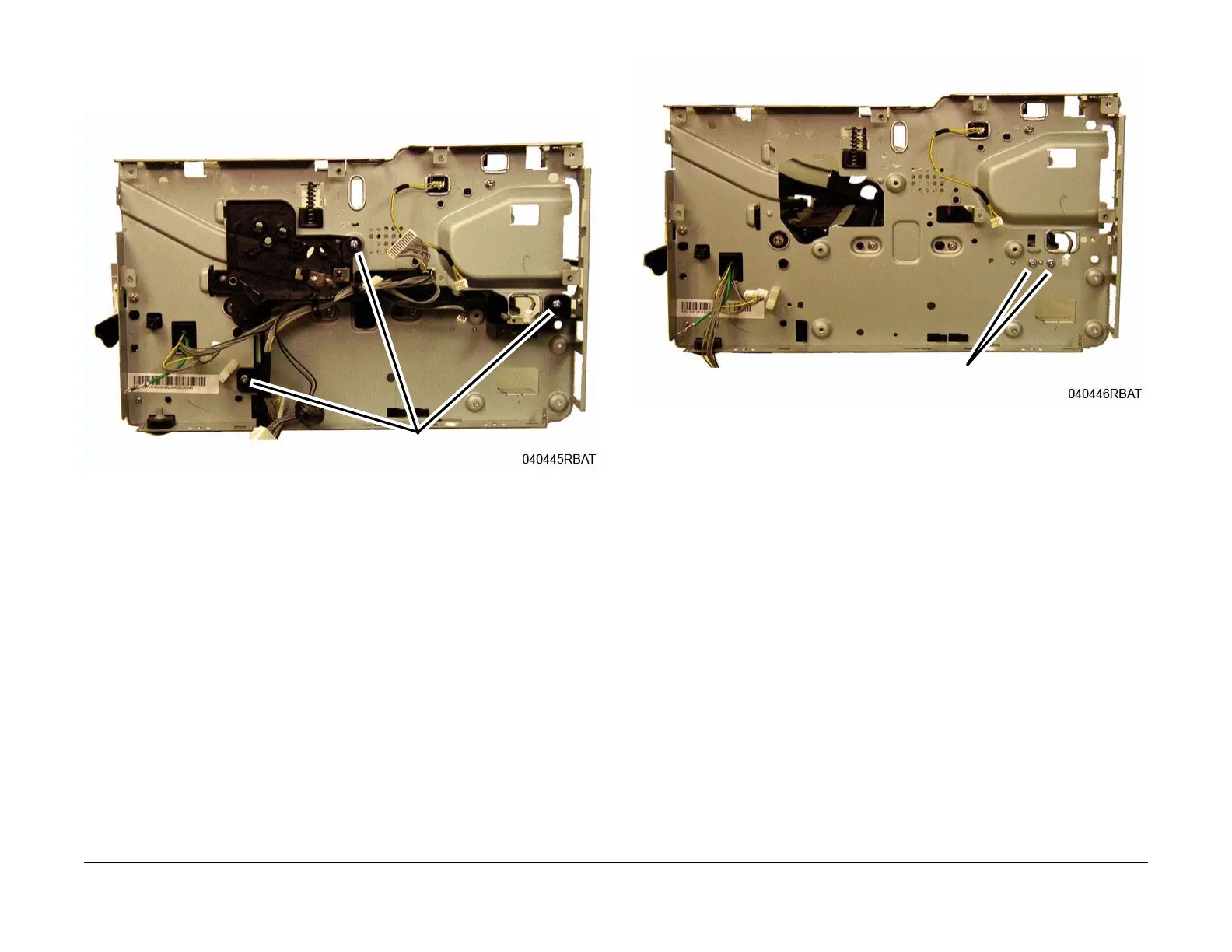

Figure 12 Wire Guides and HV Contact Guide
16. Remove the Exit Sensor Plate screws (2) from the Right Frame (Figure 13).
Figure 13 Exit Sensor Plate Screws
Screws
Screws
