REP 1.34
Repairs
13. Remove the PWB’s (3), disconnect the connectors (Figure 9):
a. The HVPS PWB (6 screws), and remove the Spring Contacts (4) from the high volt-
age contact guide.
b. Remove the LVPS PWB (6 screws), and the insulation (black) pad behind the PWB.
c. Remove the Main PWB (5 screws)

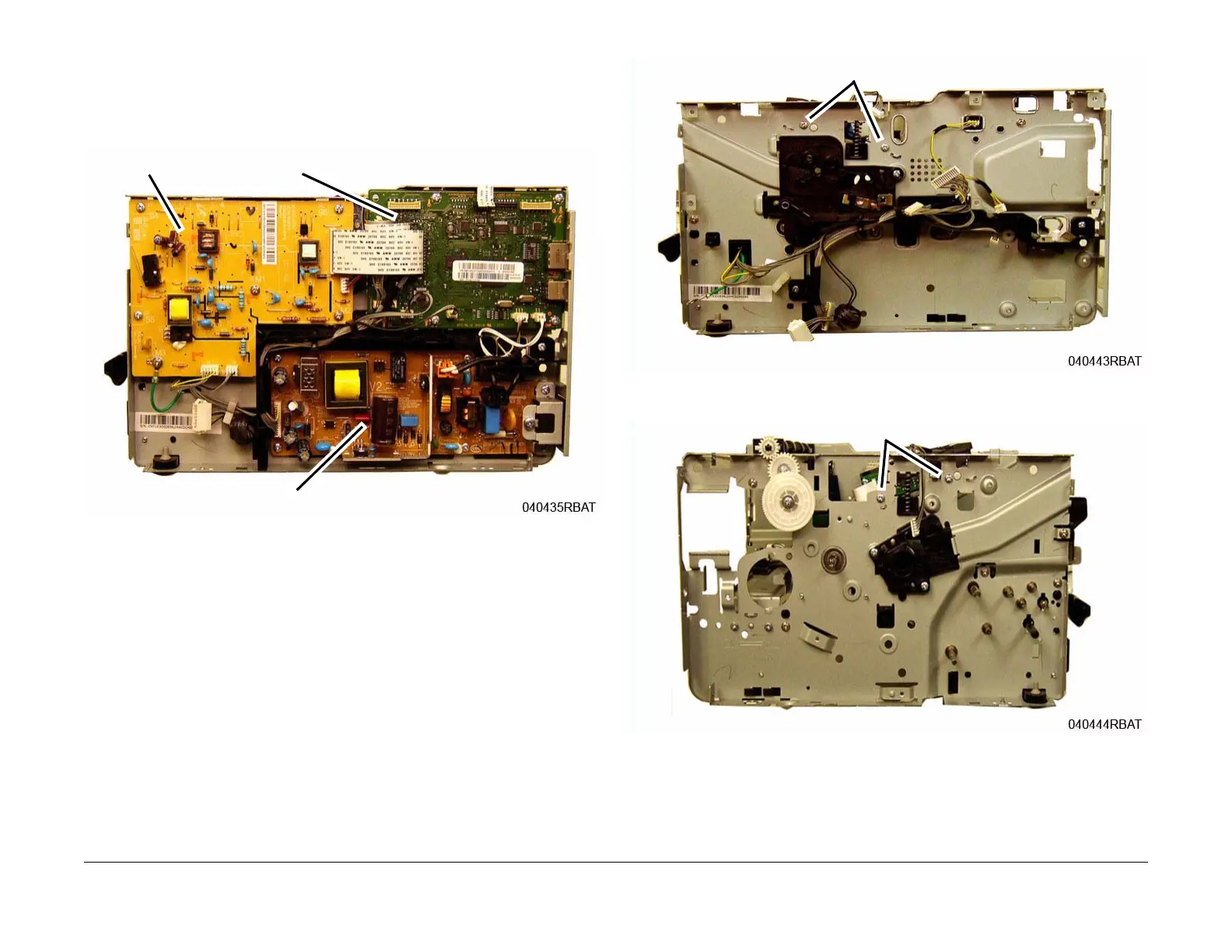

Figure 9 PWB Removal
14. Remove the LSU Assembly (4 screws), 2 on each side of the printer (Figure 10, Figure
11).
Figure 10 LSU Left Side Screws
Figure 11 LSU Right Side Screws
HVPS PWB
Main PWB
LVPS PWB
Screws
Screws
