Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.34
Repairs

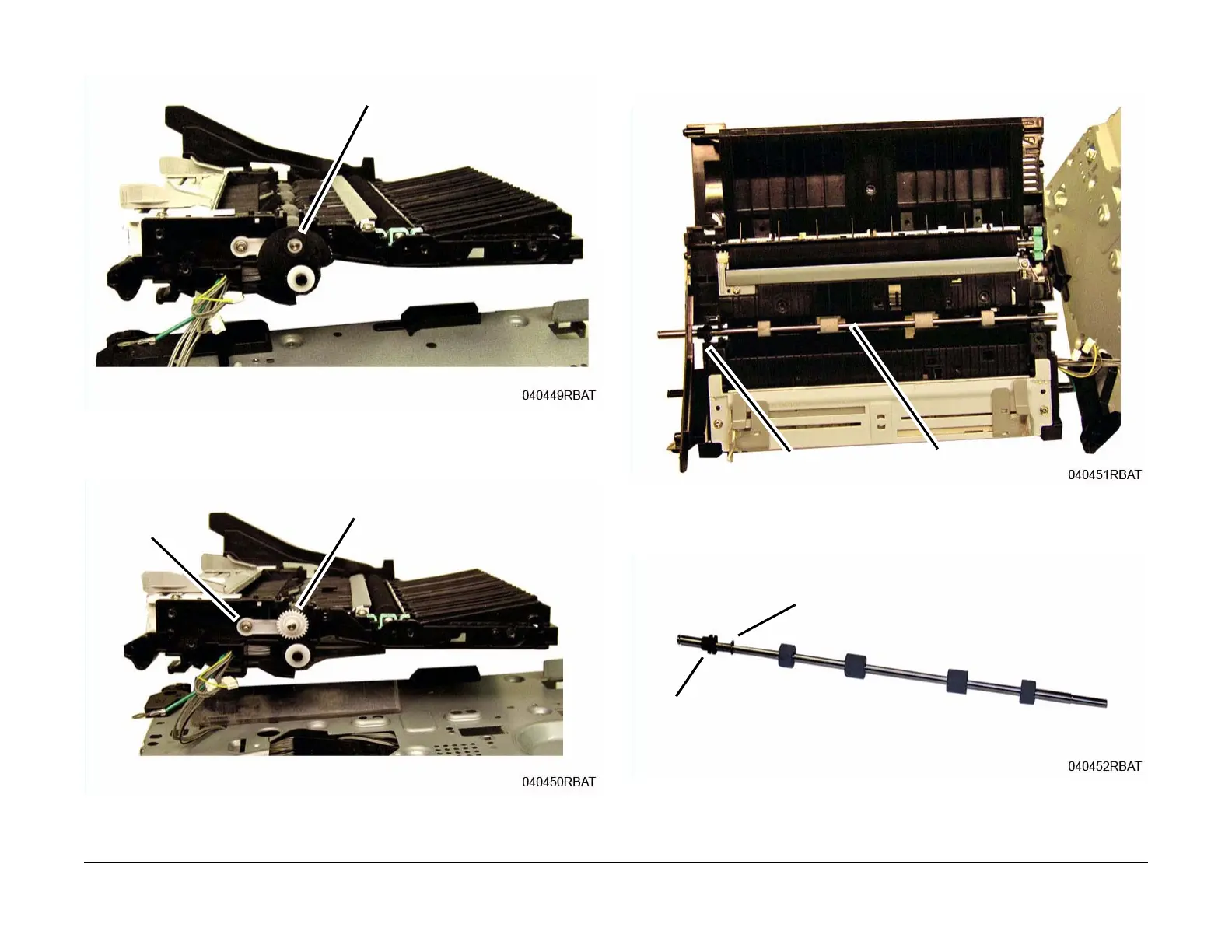

20. Remove the Reg Roll Drive Pivot Gears from the Paper Path Frame (Figure 16).
Figure 16 Registration Roll Drive Pivot Gears
21. Remove the Reg Roll Drive Gear and Bushing (1 screw) (Figure 17).
Figure 17 Registration Roll Drive Gear and Bushing
22. Remove the Reg Roll from the Paper Path Frame (Figure 18).
Note the location of the Bushing in the frame for reinstallation.
Figure 18 Registration Roll Removal
23. Remove the Bushing and E-ring from the Reg Roll (Figure 19).
Figure 19 Registration Roll
Pivot Drive Gears
Screw
Drive Gear
Registration Roll
Bushing
Bushing
E-ring
