4-55
Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.34, REP 1.35
Repairs
Replacement
NOTE: Tapered Plastic Screws and Round Machine Screws are used to hold the parts to the
frame. Make sure that the Plastic Screws go into plastic components and Machine Screws go
into the metal frame.
Install the components in the reverse of removal.
NOTE: The Frame is flexible and can be bowed out if the screws are not tightened in the cor-
rect order.
Reinstall the Frame as follows so it seats flush against the printer’s internal modules.
1. After aligning the left and right frames together with the inside modules; install, but do not
tighten, the Paper Path Frame screws, (3) on the Left and Right Side Frame to hold the
printer together.
Refer to (Figure 14) and (Figure 15).
2. On the bottom of the printer, refer to (Figure 8):
a. Install the ground screw (1).
b. Connect the Printer Drive Motor Connector.
3. Tighten the Paper Path Frame screws installed in Step 1.
4. Continue with the parts replacement.
a. When installing the Paper Feed Sensor Actuator made sure the spring is seated in
the frame cutout, refer to (Figure 7).
b. Refer to Figure 20 for installation of the Feed and Registration Drive Gears, and
Snap Ring.

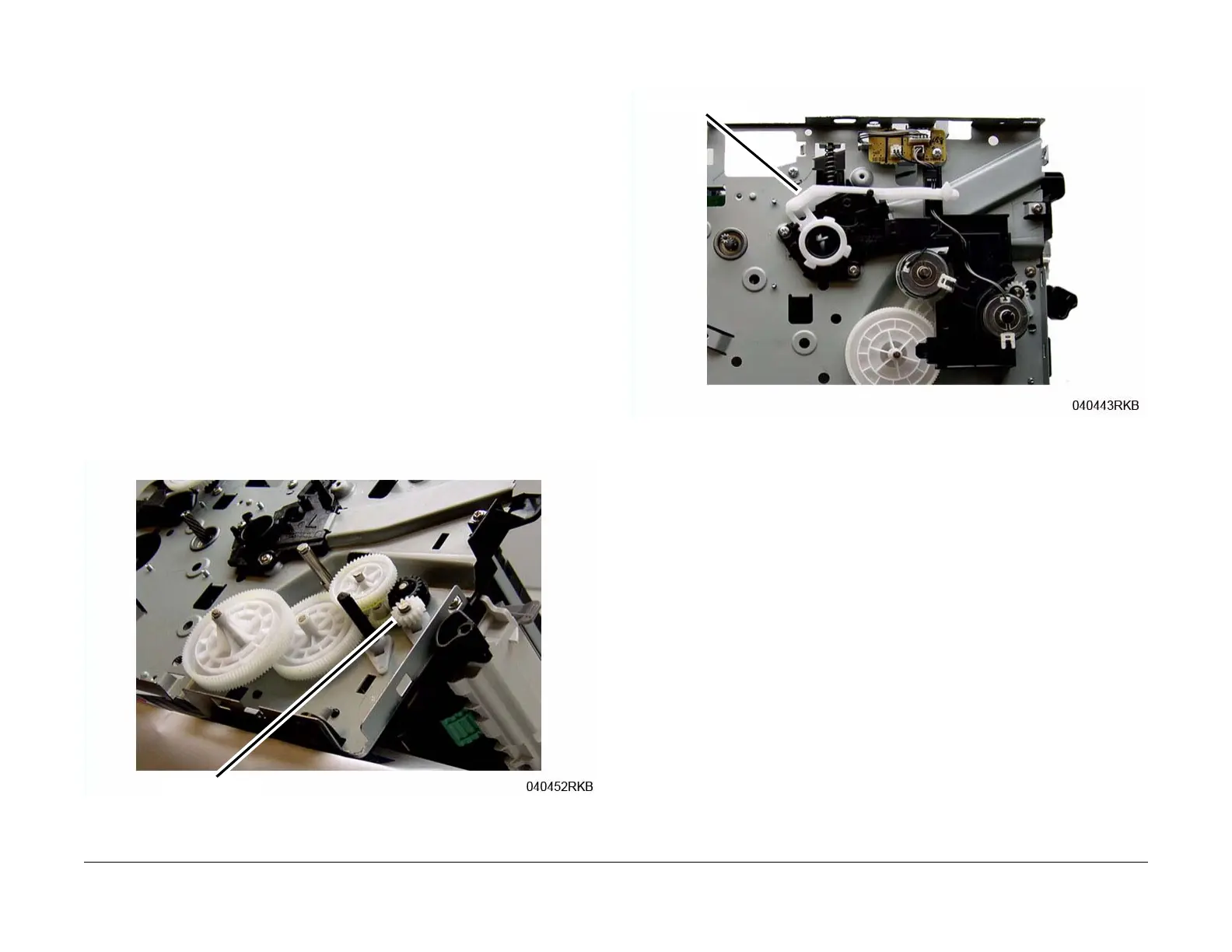

Figure 20 Feed and Registration Drive Gears
c. When installing the Front Cover Support Arm, ensure that it is placed correctly on
the Stop Bracket (Figure 21).
Figure 21 Front Cover Support Arm Placement
Snap Ring
Support Arm

Xerox WorkCentre 3225 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 600 x 600 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Memory	128 MB
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Paper Output Capacity	120 sheets
Duplex Printing	Manual
Copy Resolution	Up to 600 x 600 dpi
First Copy Out Time	As fast as 10 seconds
Maximum Number of Copies	99 copies
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Weight	11.4 kg
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	Letter, Legal, A4, A5, B5
Operating System Compatibility	Windows, Mac, Linux
Fax Transmission Speed	Approx. 3 seconds per page
