WorkCentre Pro 423/428 7-8 CHAPTER 7 ELECTRICAL WIRING DIAGRAMS
03/02 7.2 Plug/Jack Location Diagrams

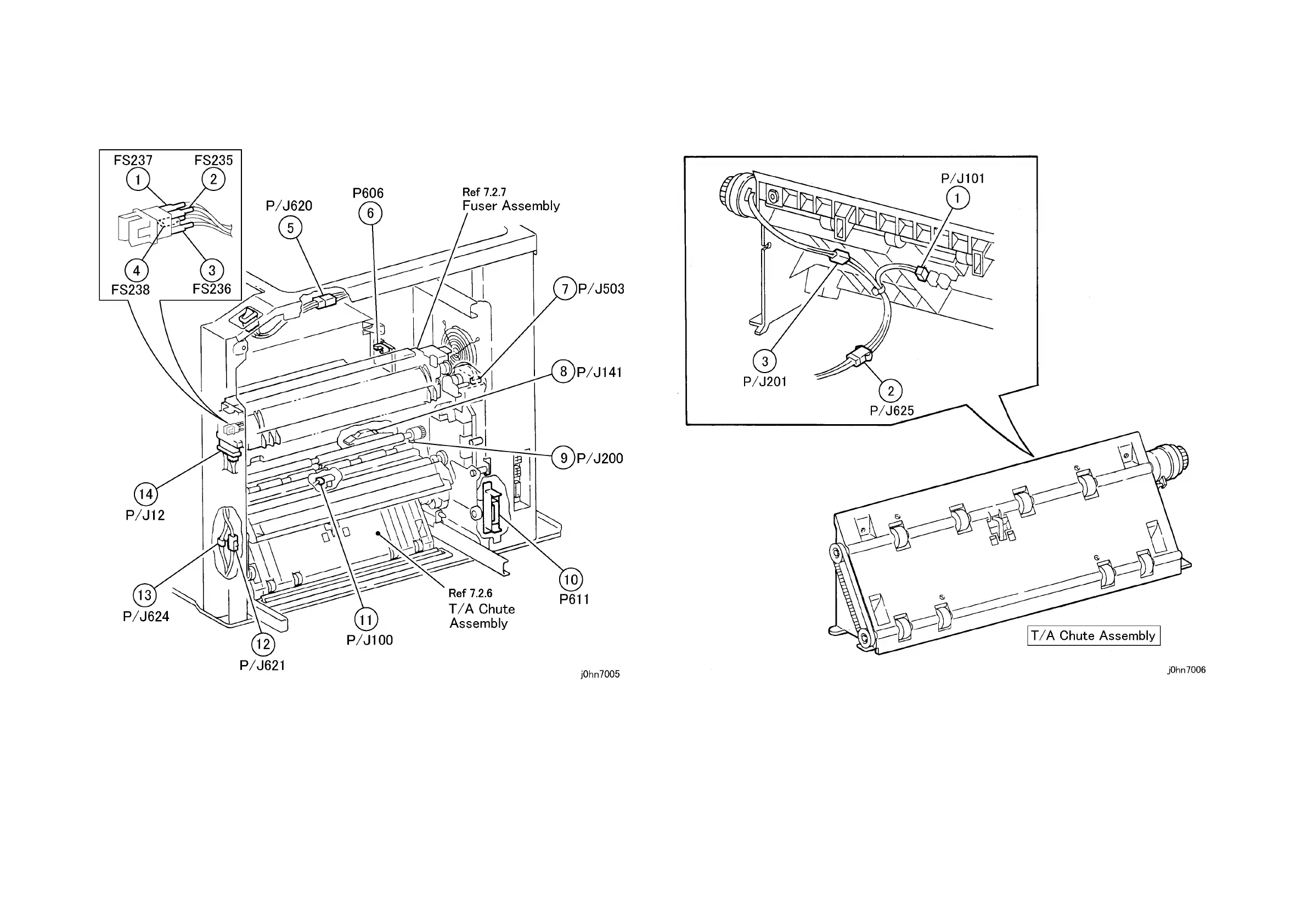

7.2.5 IOT Right Location
(Figure-5) j0hn7005
7.2.6 T/A Chute Assembly
(Figure-6) j0hn7006
