Xerox WorkCentre Pro 423 - IOT Rear Location; Mcusw Pwb

03/02 7.2 Plug/Jack Location Diagrams
WorkCentre Pro 423/428 7-13 CHAPTER 7 ELECTRICAL WIRING DIAGRAMS

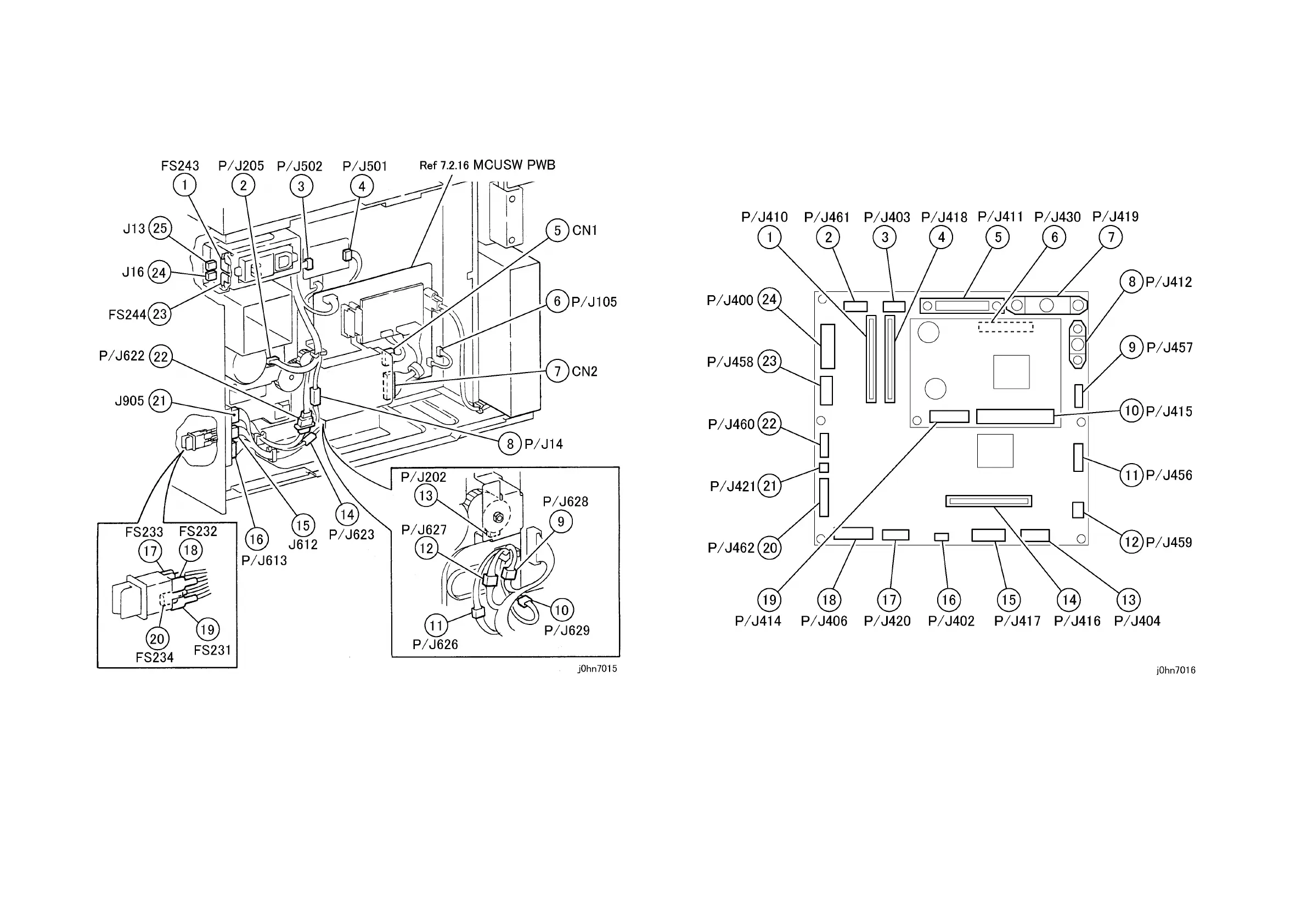

7.2.15 IOT Rear Location
(Figure-15) j0hn7015
7.2.16 MCUSW PWB
(Figure-16) j0hn7016
