WorkCentre Pro 423/428 7-10 CHAPTER 7 ELECTRICAL WIRING DIAGRAMS
03/02 7.2 Plug/Jack Location Diagrams

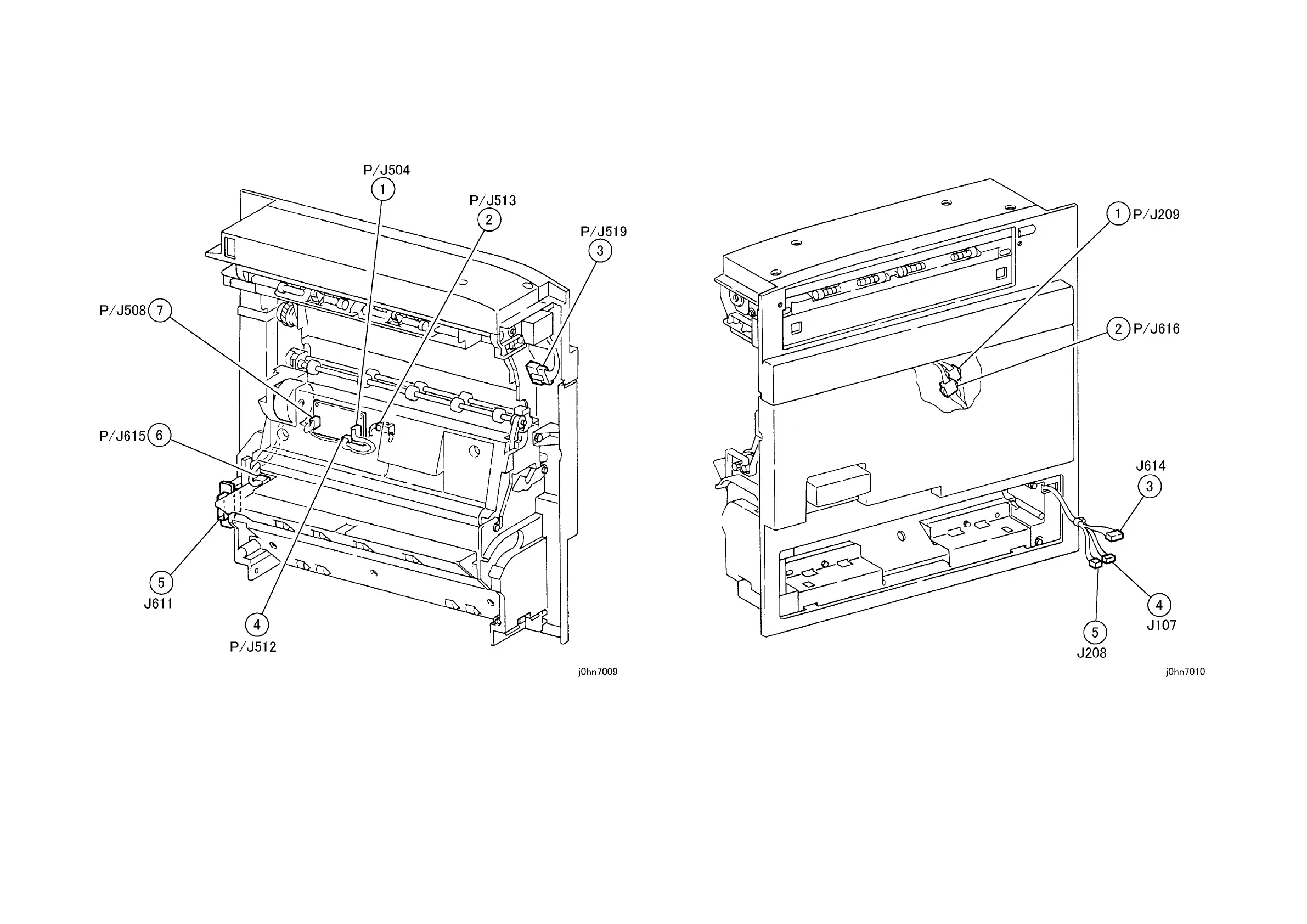

7.2.9 RH Unit 1
(Figure-9) j0hn7009
7.2.10 RH Unit 2
(Figure-10) j0hn7010
