WorkCentre Pro 423/428 8-6 CHAPTER 8 ACCESSORIES
03/02 8.3 Electronic Sort Kit
8.3 Electronic Sort Kit
8.3.1
Product Outline
This kit enables the electronic sort function.
8.3.2 Product Code
Electronic Sort Kit: EL200127
8.3.3 Installation Procedure
WARNING
Switch off the machine and disconnect the power cord.
1. Check the accessories. (Figure-1)
1) HDD Assembly…………… 1
2) HDC PWB………………… 1
3) Spacer……………………. 2
4) Core………………………. 2
5) Screw…………………….. 6
6) Wire Harness……….…… 1
7) Flat Cable………………… 1

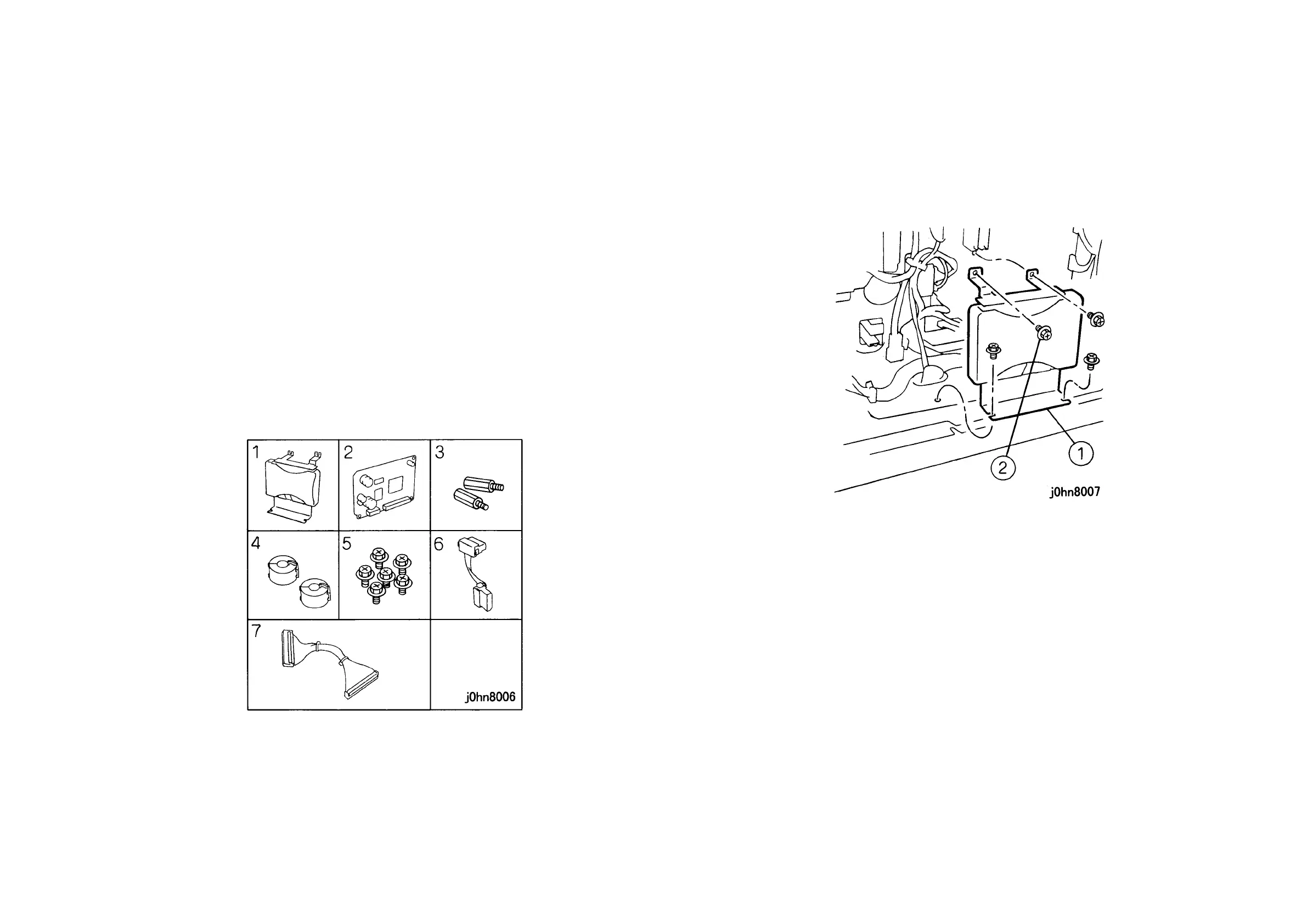

(Figure-1) j0hn8006
2. Remove the Screws (3) and the Rear Cover.
3. Remove the Screws (7) and the Electrical Cover.
4. Install the HDD Assembly. (Figure-2)
CAUTION
Electric parts may be damaged by static electricity. Be sure to wear a wrist strap when handling
electric parts. If no wrist strap is available, touch a metal section before work to eliminate static
electricity as far as possible.
1) Install the HDD Assembly.
2) Tighten the screws (4).
(Figure-2) j0hn8007
5. Install the HDC PWB. (Figure-3)
1) Install the Spacers (2).
2) Install the HDC PWB.
3) Tighten the screws (2).
To Next Page
