WorkCentre Pro 423/428 8-16 CHAPTER 8 ACCESSORIES
03/02 8.7 Side Tray Kit

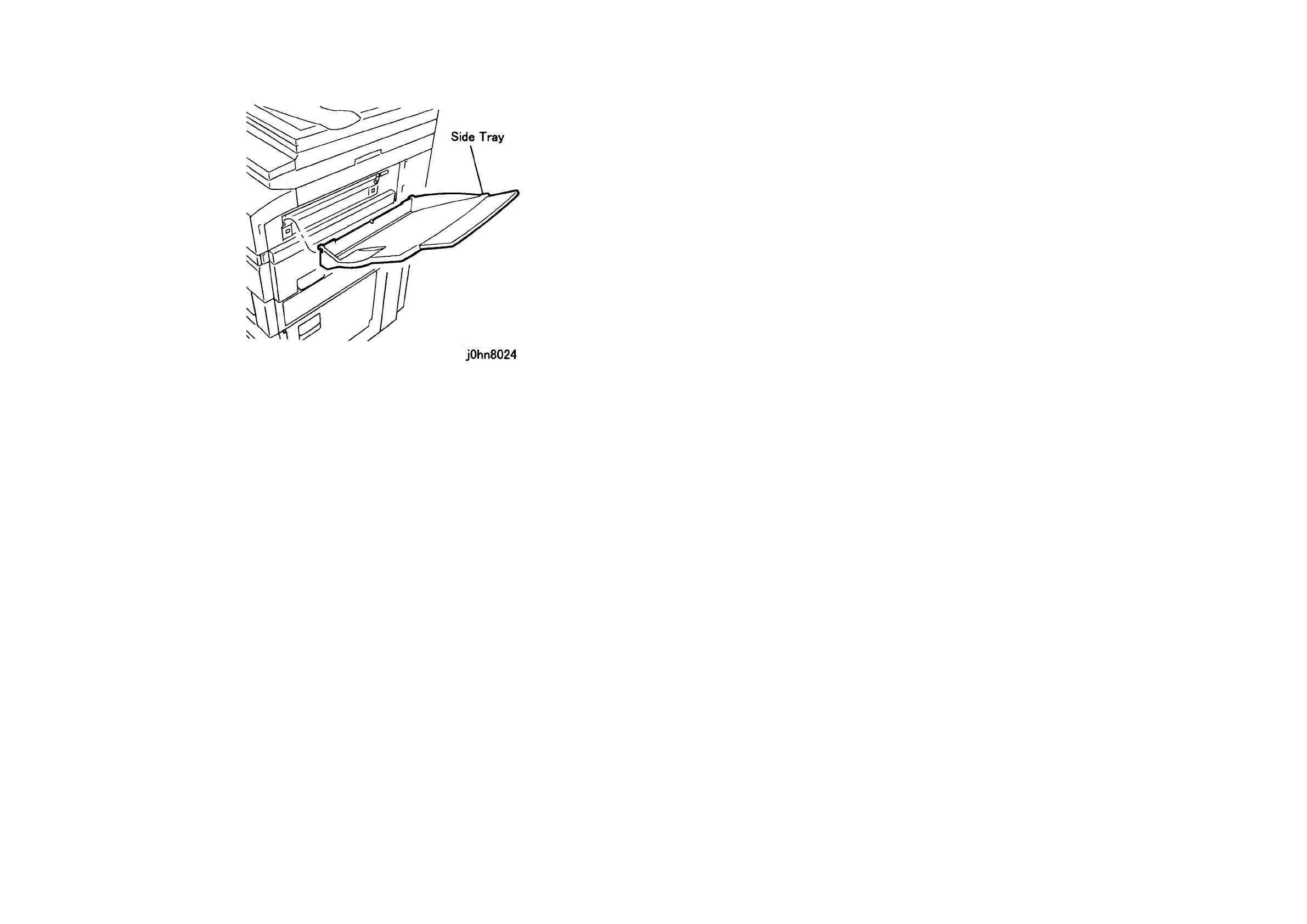

5. Install the Side Tray. (Figure-3)
(Figure-3) j0hn8024
6. Connect the power cord and turn on the power.
7. Perform the setting that the Face Up Tray is installed.
1) Enter C/E Mode.
2) Set the Chain/Function code "50/7" and press the Start button.
3) Change the set value to 1.
4) Exit C/E Mode.
8. Check that "Side Output Tray” is displayed on IIT display.
9. Ensure that copy is ejected to the Side Tray.
10. Explain to the key operator how to eject copy to the Side Tray.
To Next Page
