03/02 8.17 8MB Memory
WorkCentre Pro 423/428 8-41 CHAPTER 8 ACCESSORIES

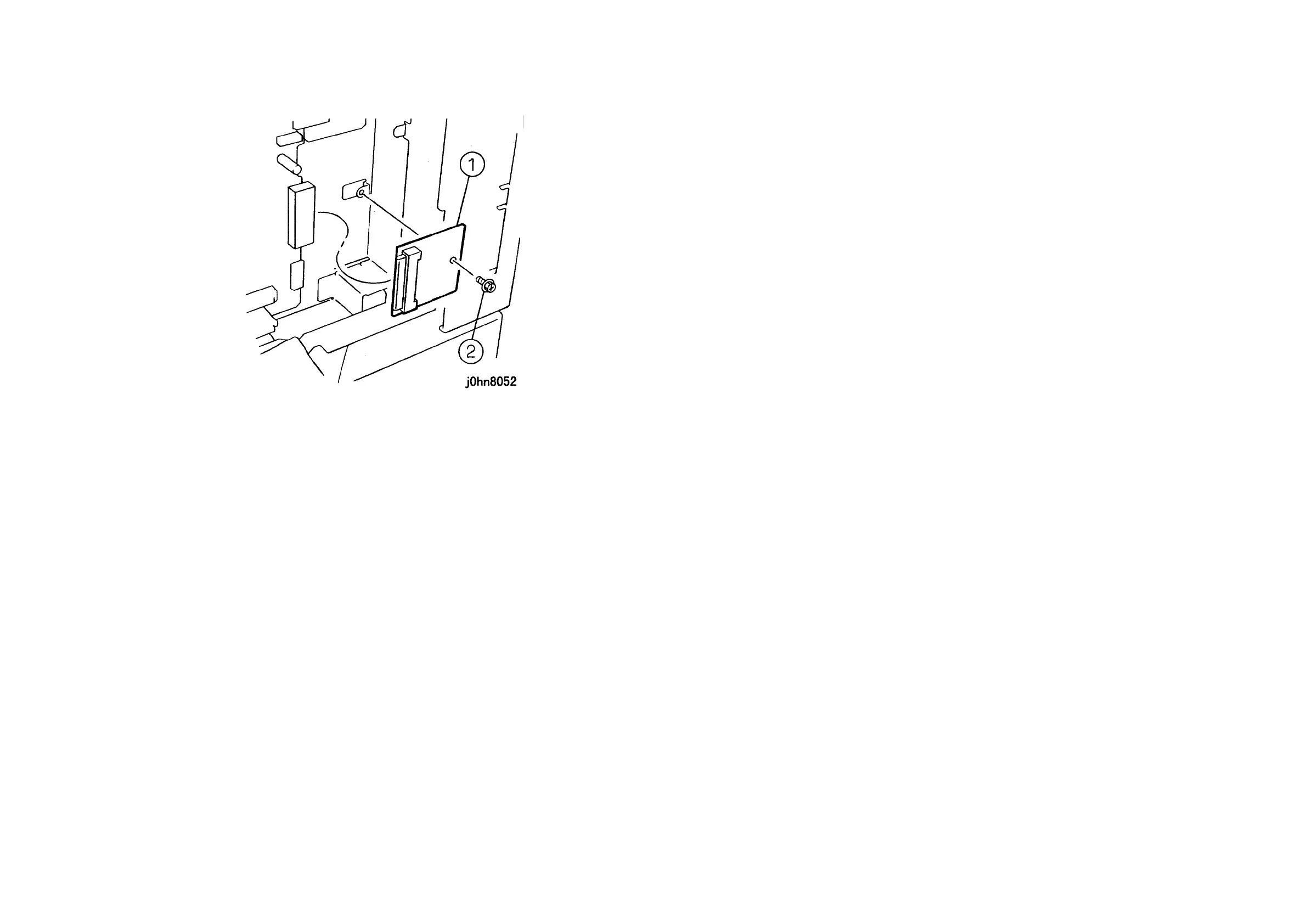

7. Install the OM3 PWB. (Figure-3)
1) Install the OM3 PWB.
2) Tighten the screw.
(Figure-3) j0hn8052
8. Reinstall the G3M0 PWB.
9. Reinstall the Electrical Cover and Rear Cover.
10. Connect the power cord and turn on the power.
