Xilinx 7 Series User Manual

7 Series FPGAs GTP Transceivers User Guide www.xilinx.com 211
UG482 (v1.9) December 19, 2016
RX Gearbox
synchronization state machine to the RX gearbox and tells it to slip the data alignment. This process
of slipping and testing the synchronization header repeats until block lock is achieved. When using
the RX gearbox, a block synchronization state machine is required in the FPGA logic. Figure 4-57
shows the operation of a block synchronization state machine. The 7 Series FPGAs Transceivers
Wizard has example code for this type of module.
X-Ref Target - Figure 4-57

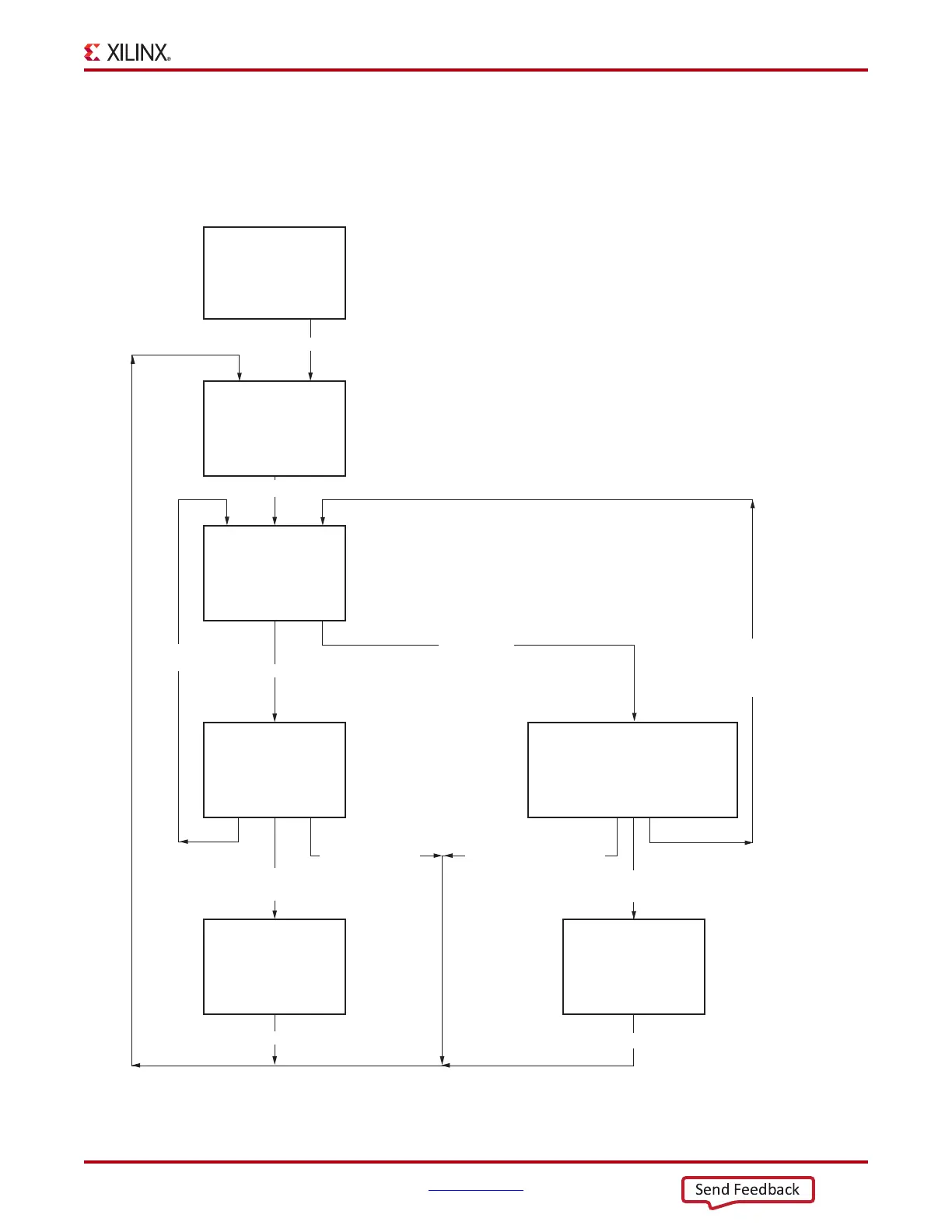

Figure 4-57: Block Synchronization State Machine
LOCK_INIT
block_lock <= false
test_sh <= false
RESET_CNT
sh_cnt <= 0
sh_invalid_cnt <= 0
slip_done <= false
TEST_SH
test_sh <= false
VALID_SH
sh_cnt <= sh_cnt + 1
64_GOOD
block_lock <= true
SLIP
block_lock <= false
SLIP <= true
INVALID_SH
sh_cnt <= sh_cnt + 1
sh_invalid_cnt <= sh_invalid_cnt + 1
sh_cnt = 64 AND
sh_invalid_cnt = 0
sh_cnt = 64 AND
sh_invalid_cnt > 0
sh_cnt = 64 AND
sh_invalid_cnt < 16 AND
block_lock = true
sh_invalid_cnt = 16 OR
block_lock = false
slip_done = true
sh_valid = 0
Unconditional Transition
sh_valid = 1
test_sh = true AND
sh_cnt < 64
test_sh = 1
Unconditional Transition
test_sh = true AND
sh_cnt < 64 AND
sh_invalid_cnt < 16 AND
block_lock = true
UG482_c4_39_111011
Send Feedback

Xilinx 7 Series Specifications

General

Process Technology	28nm
Transceivers	Up to 96
I/O Pins	Up to 1, 200
Transceiver Data Rate	Up to 28.05 Gbps
Power Consumption	Varies by device
Operating Temperature	Commercial, Industrial
Package Options	BGA, CSP
Family	Artix-7, Kintex-7, Virtex-7
DSP Slices	16 - 3600
