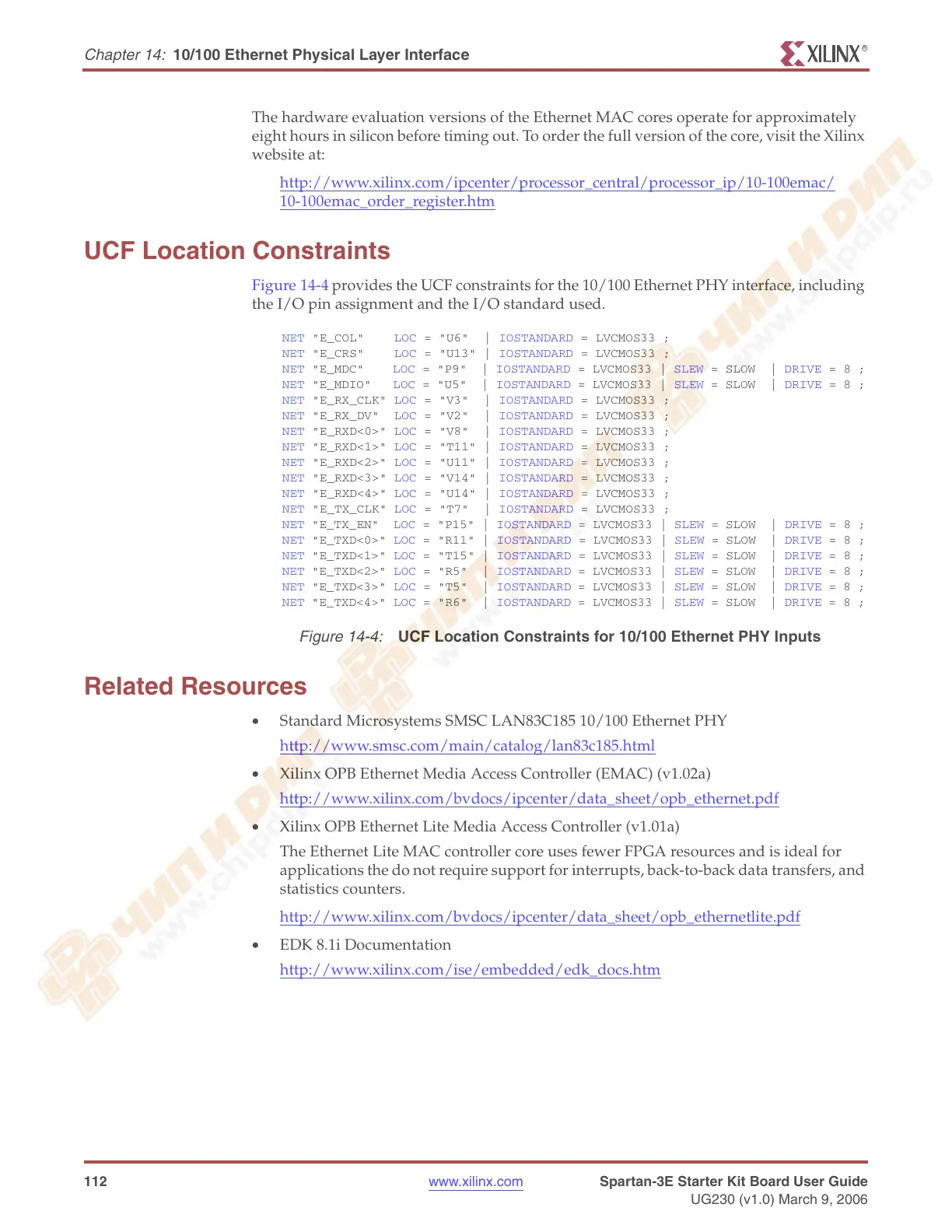

Chapter 14: 10/100 Ethernet Physical Layer Interface
R
The hardware evaluation versions of the Ethernet MAC cores operate for approximately
eight hours in silicon before timing out. To order the full version of the core, visit the Xilinx
website at:
http://www.xilinx.com/ipcenter/processor_central/processor_ip/10-100emac/
10-100emac_order_register.htm
UCF Location Constraints
Figure 14-4 provides the UCF constraints for the 10/100 Ethernet PHY interface, including
the I/O pin assignment and the I/O standard used.
Related Resources
• Standard Microsystems SMSC LAN83C185 10/100 Ethernet PHY
http://www.smsc.com/main/catalog/lan83c185.html
• Xilinx OPB Ethernet Media Access Controller (EMAC) (v1.02a)
http://www.xilinx.com/bvdocs/ipcenter/data_sheet/opb_ethernet.pdf
• Xilinx OPB Ethernet Lite Media Access Controller (v1.01a)
The Ethernet Lite MAC controller core uses fewer FPGA resources and is ideal for
applications the do not require support for interrupts, back-to-back data transfers, and
statistics counters.
http://www.xilinx.com/bvdocs/ipcenter/data_sheet/opb_ethernetlite.pdf
• EDK 8.1i Documentation
http://www.xilinx.com/ise/embedded/edk_docs.htm
Figure 14-4: UCF Location Constraints for 10/100 Ethernet PHY Inputs
NET "E_COL" LOC = "U6"
|
IOSTANDARD = LVCMOS33 ;
NET "E_CRS" LOC = "U13" | IOSTANDARD = LVCMOS33 ;
NET "E_MDC" LOC = "P9" | IOSTANDARD = LVCMOS33 | SLEW = SLOW | DRIVE = 8 ;
NET "E_MDIO" LOC = "U5" | IOSTANDARD = LVCMOS33 | SLEW = SLOW | DRIVE = 8 ;
NET "E_RX_CLK" LOC = "V3" | IOSTANDARD = LVCMOS33 ;
NET "E_RX_DV" LOC = "V2" | IOSTANDARD = LVCMOS33 ;
NET "E_RXD<0>" LOC = "V8" | IOSTANDARD = LVCMOS33 ;
NET "E_RXD<1>" LOC = "T11" | IOSTANDARD = LVCMOS33 ;
NET "E_RXD<2>" LOC = "U11" | IOSTANDARD = LVCMOS33 ;
NET "E_RXD<3>" LOC = "V14" | IOSTANDARD = LVCMOS33 ;
NET "E_RXD<4>" LOC = "U14" | IOSTANDARD = LVCMOS33 ;
NET "E_TX_CLK" LOC = "T7" | IOSTANDARD = LVCMOS33 ;
NET "E_TX_EN" LOC = "P15" | IOSTANDARD = LVCMOS33 | SLEW = SLOW | DRIVE = 8 ;
NET "E_TXD<0>" LOC = "R11" | IOSTANDARD = LVCMOS33 | SLEW = SLOW | DRIVE = 8 ;
NET "E_TXD<1>" LOC = "T15" |
IOSTANDARD =
LVCMOS33 | SLEW = SLOW | DRIVE = 8 ;
NET "E_TXD<2>" LOC = "R5" | IOSTANDARD = LVCMOS33 | SLEW = SLOW | DRIVE = 8 ;
NET "E_TXD<3>" LOC = "T5" | IOSTANDARD = LVCMOS33 | SLEW = SLOW | DRIVE = 8 ;
NET "E_TXD<4>" LOC = "R6" | IOSTANDARD = LVCMOS33 | SLEW = SLOW | DRIVE = 8 ;
