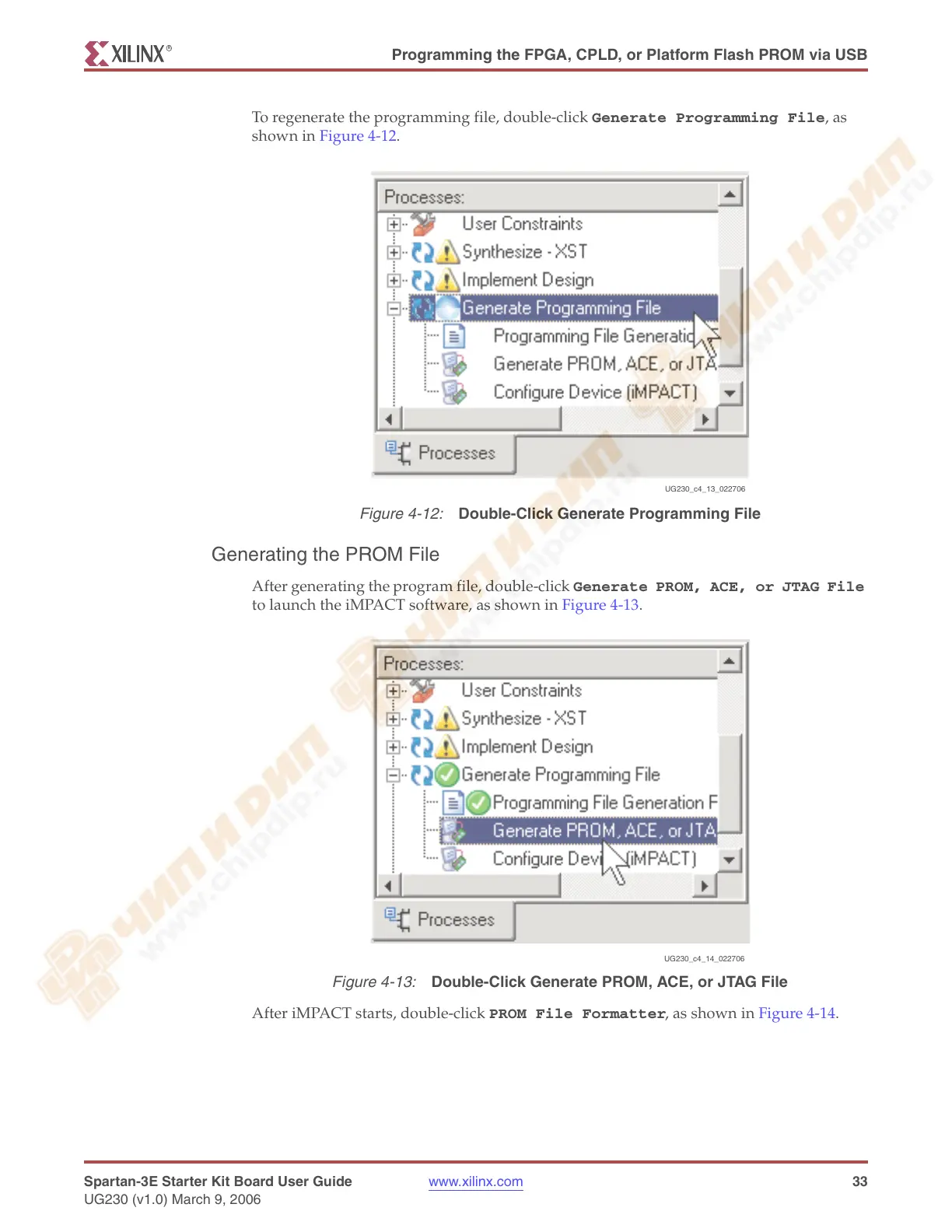

Spartan-3E Starter Kit Board User Guide www.xilinx.com 33
UG230 (v1.0) March 9, 2006
Programming the FPGA, CPLD, or Platform Flash PROM via USB
R
To regenerate the programming file, double-click Generate Programming File, as
shown in Figure 4-12.
Generating the PROM File
After generating the program file, double-click Generate PROM, ACE, or JTAG File
to launch the iMPACT software, as shown in Figure 4-13.
After iMPACT starts, double-click PROM File Formatter, as shown in Figure 4-14.
Figure 4-12:
Double-Click Generate Programming File
UG230_c4_13_022706
Figure 4-13:
Double-Click Generate PROM, ACE, or JTAG File
UG230_c4_14_022706
