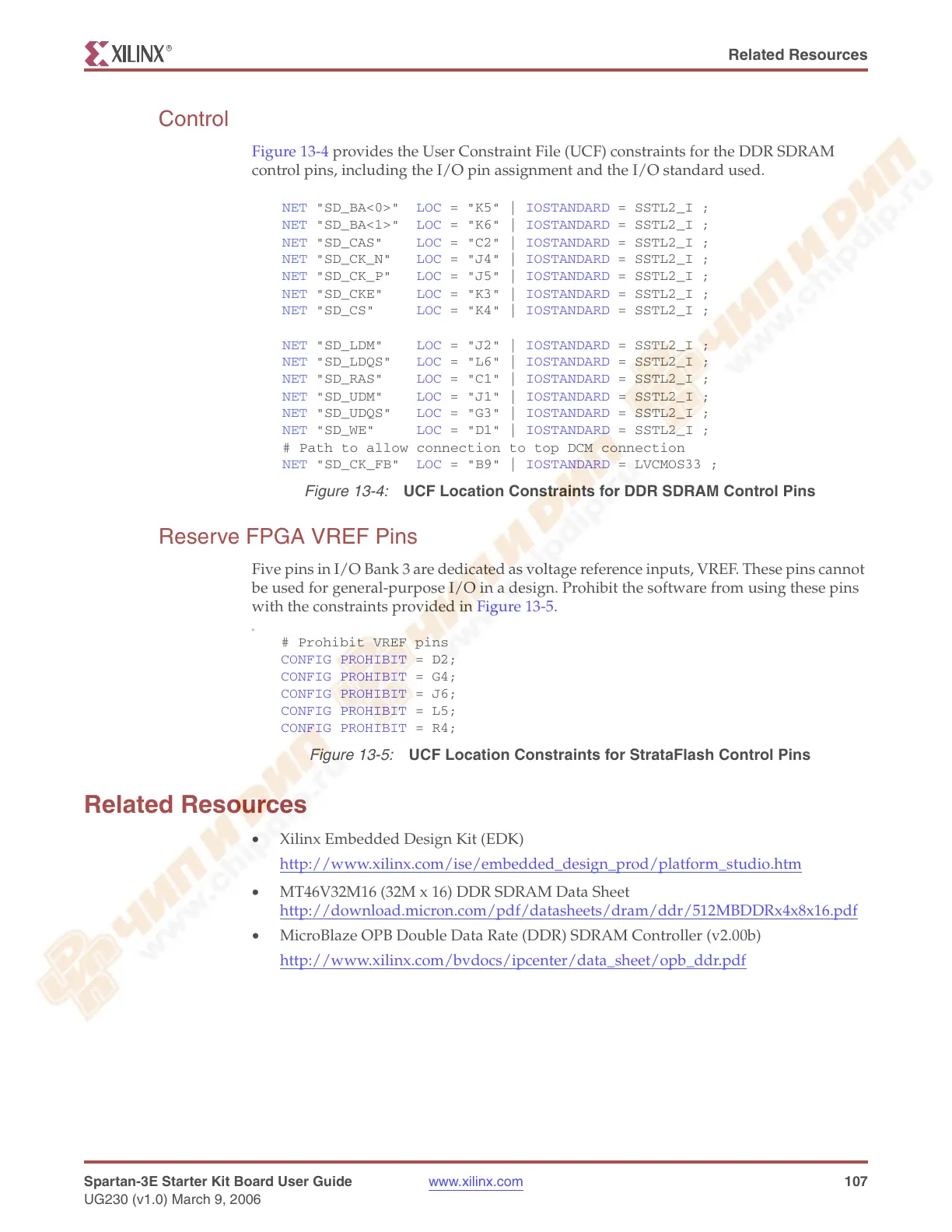

Control
Figure 13-4 provides the User Constraint File (UCF) constraints for the DDR SDRAM
control pins, including the I/O pin assignment and the I/O standard used.
Reserve FPGA VREF Pins
Five pins in I/O Bank 3 are dedicated as voltage reference inputs, VREF. These pins cannot
be used for general-purpose I/O in a design. Prohibit the software from using these pins
with the constraints provided in Figure 13-5.
5i
Related Resources
• Xilinx Embedded Design Kit (EDK)
http://www.xilinx.com/ise/embedded_design_prod/platform_studio.htm
• MT46V32M16 (32M x 16) DDR SDRAM Data Sheet
http://download.micron.com/pdf/datasheets/dram/ddr/512MBDDRx4x8x16.pdf
• MicroBlaze OPB Double Data Rate (DDR) SDRAM Controller (v2.00b)
http://www.xilinx.com/bvdocs/ipcenter/data_sheet/opb_ddr.pdf
Figure 13-4: UCF Location Constraints for DDR SDRAM Control Pins
NET "SD_BA<0>" LOC = "K5" | IOSTANDARD = SSTL2_I ;
NET "SD_BA<1>" LOC = "K6" | IOSTANDARD = SSTL2_I ;
NET "SD_CAS" LOC = "C2" | IOSTANDARD = SSTL2_I ;
NET "SD_CK_N" LOC = "J4" | IOSTANDARD = SSTL2_I ;
NET "SD_CK_P" LOC = "J5" | IOSTANDARD = SSTL2_I ;
NET "SD_CKE" LOC = "K3" | IOSTANDARD = SSTL2_I ;
NET "SD_CS" LOC = "K4" | IOSTANDARD = SSTL2_I ;
NET "SD_LDM" LOC = "J2" | IOSTANDARD = SSTL2_I ;
NET "SD_LDQS" LOC = "L6" | IOSTANDARD = SSTL2_I ;
NET "SD_RAS" LOC = "C1" | IOSTANDARD = SSTL2_I ;
NET "SD_UDM" LOC = "J1" | IOSTANDARD = SSTL2_I ;
NET "SD_UDQS" LOC = "G3" | IOSTANDARD = SSTL2_I ;
NET "SD_WE" LOC = "D1" | IOSTANDARD = SSTL2_I ;
# Path to allow connection to top DCM connection
NET "SD_CK_FB" LOC = "B9" | IOSTANDARD = LVCMOS33 ;
Figure 13-5: UCF Location Constraints for StrataFlash Control Pins
# Prohibit VREF pins
CONFIG PROHIBIT = D2;
CONFIG PROHIBIT = G4;
CONFIG PROHIBIT = J6;
CONFIG PROHIBIT = L5;
CONFIG PROHIBIT = R4;
