Appendix A: Schematics
R

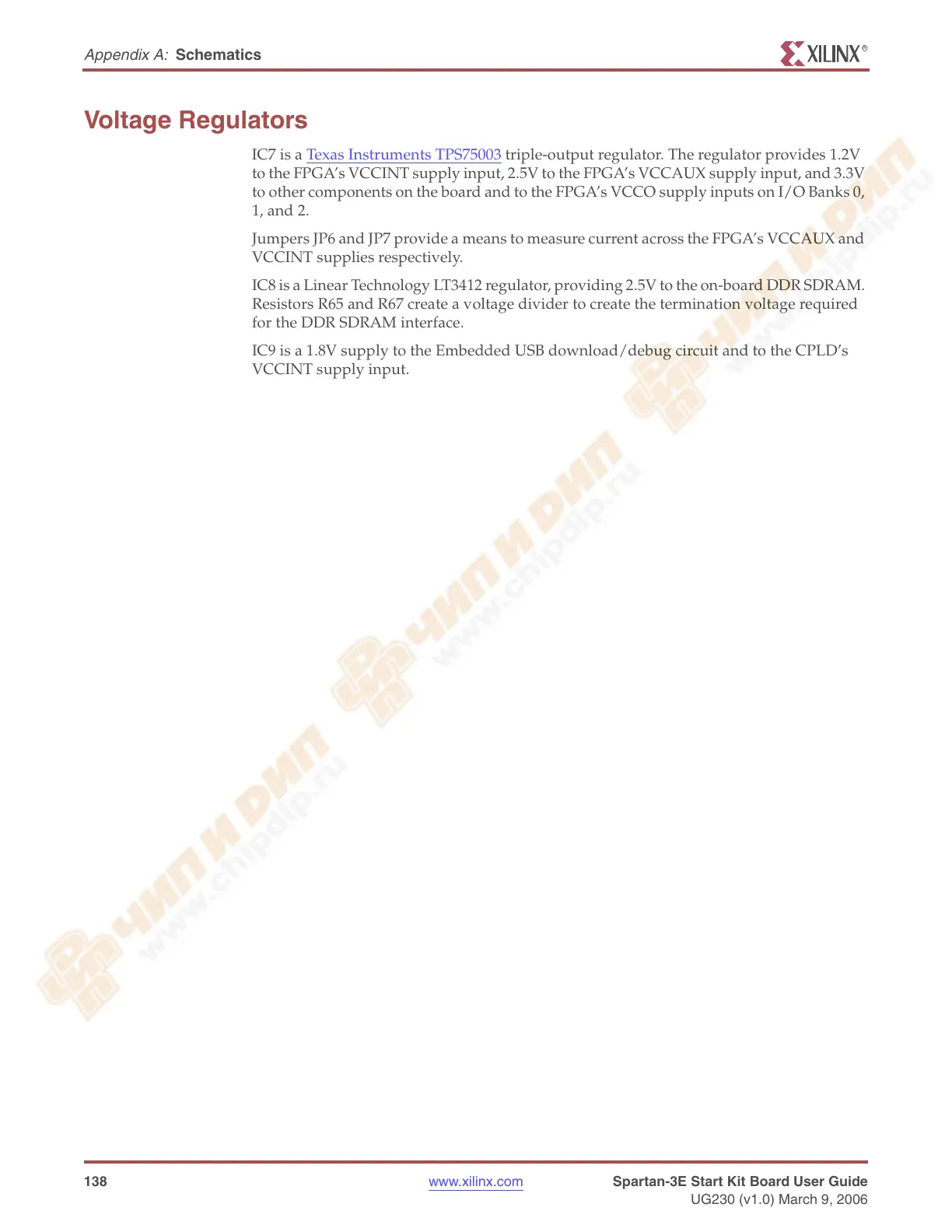

Voltage Regulators
IC7 is a Texas Instruments TPS75003 triple-output regulator. The regulator provides 1.2V
to the FPGA’s VCCINT supply input, 2.5V to the FPGA’s VCCAUX supply input, and 3.3V
to other components on the board and to the FPGA’s VCCO supply inputs on I/O Banks 0,
1, and 2.
Jumpers JP6 and JP7 provide a means to measure current across the FPGA’s VCCAUX and
VCCINT supplies respectively.
IC8 is a Linear Technology LT3412 regulator, providing 2.5V to the on-board DDR SDRAM.
Resistors R65 and R67 create a voltage divider to create the termination voltage required
for the DDR SDRAM interface.
IC9 is a 1.8V supply to the Embedded USB download/debug circuit and to the CPLD’s
VCCINT supply input.
