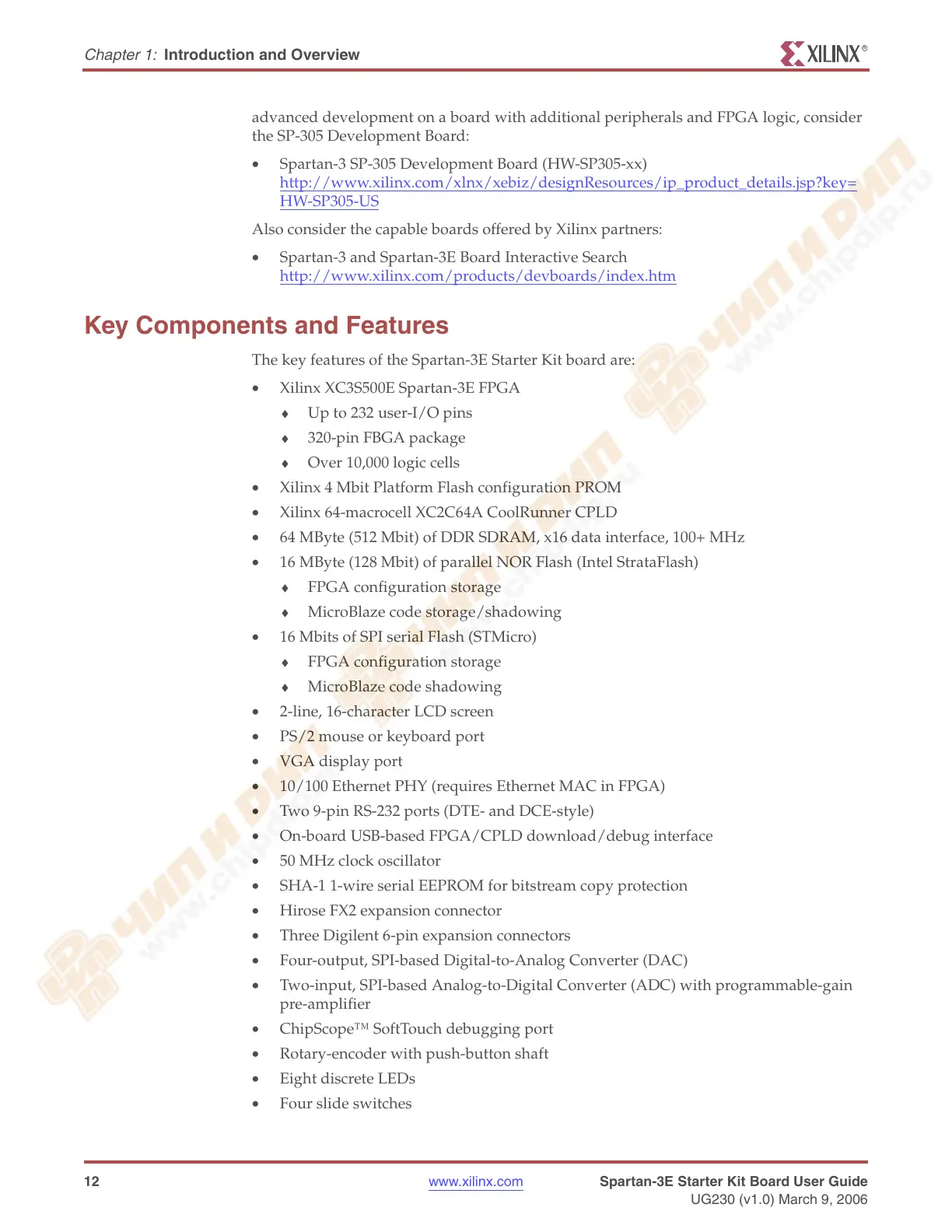

12 www.xilinx.com Spartan-3E Starter Kit Board User Guide
UG230 (v1.0) March 9, 2006
Chapter 1: Introduction and Overview
R
advanced development on a board with additional peripherals and FPGA logic, consider
the SP-305 Development Board:
• Spartan-3 SP-305 Development Board (HW-SP305-xx)
http://www.xilinx.com/xlnx/xebiz/designResources/ip_product_details.jsp?key=
HW-SP305-US
Also consider the capable boards offered by Xilinx partners:
• Spartan-3 and Spartan-3E Board Interactive Search
http://www.xilinx.com/products/devboards/index.htm
Key Components and Features
The key features of the Spartan-3E Starter Kit board are:
• Xilinx XC3S500E Spartan-3E FPGA
♦ Up to 232 user-I/O pins
♦ 320-pin FBGA package
♦ Over 10,000 logic cells
• Xilinx 4 Mbit Platform Flash configuration PROM
• Xilinx 64-macrocell XC2C64A CoolRunner CPLD
• 64 MByte (512 Mbit) of DDR SDRAM, x16 data interface, 100+ MHz
• 16 MByte (128 Mbit) of parallel NOR Flash (Intel StrataFlash)
♦ FPGA configuration storage
♦ MicroBlaze code storage/shadowing
• 16 Mbits of SPI serial Flash (STMicro)
♦ FPGA configuration storage
♦ MicroBlaze code shadowing
• 2-line, 16-character LCD screen
• PS/2 mouse or keyboard port
• VGA display port
• 10/100 Ethernet PHY (requires Ethernet MAC in FPGA)
• Two 9-pin RS-232 ports (DTE- and DCE-style)
• On-board USB-based FPGA/CPLD download/debug interface
• 50 MHz clock oscillator
• SHA-1 1-wire serial EEPROM for bitstream copy protection
• Hirose FX2 expansion connector
• Three Digilent 6-pin expansion connectors
• Four-output, SPI-based Digital-to-Analog Converter (DAC)
• Two-input, SPI-based Analog-to-Digital Converter (ADC) with programmable-gain
pre-amplifier
• ChipScope™ SoftTouch debugging port
• Rotary-encoder with push-button shaft
• Eight discrete LEDs
• Four slide switches
