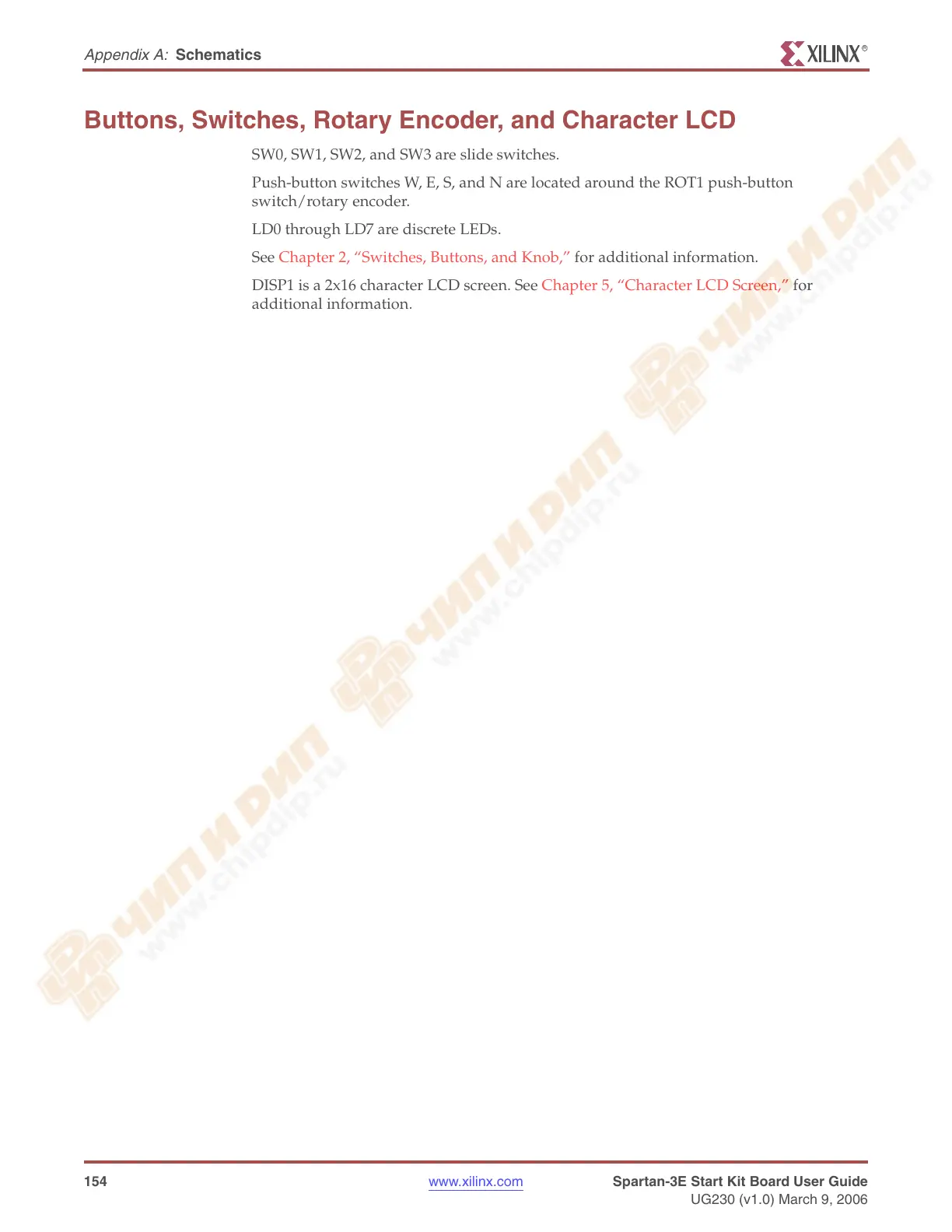

154 www.xilinx.com Spartan-3E Start Kit Board User Guide
UG230 (v1.0) March 9, 2006
Appendix A:
Schematics
R
Buttons, Switches, Rotary Encoder, and Character LCD
SW0, SW1, SW2, and SW3 are slide switches.
Push-button switches W, E, S, and N are located around the ROT1 push-button
switch/rotary encoder.
LD0 through LD7 are discrete LEDs.
See Chapter 2, Switches, Buttons, and Knob, for additional information.
DISP1 is a 2x16 character LCD screen. See Chapter 5, “Character LCD Screen,” for
additional information.
