• Enter the desired parameter to the “Seng parameter and command” then click “write” icon. If buzzer
beeps twice, it means your seng is successful.
• If the buzzer beeps connuously, it means your seng is in failure.

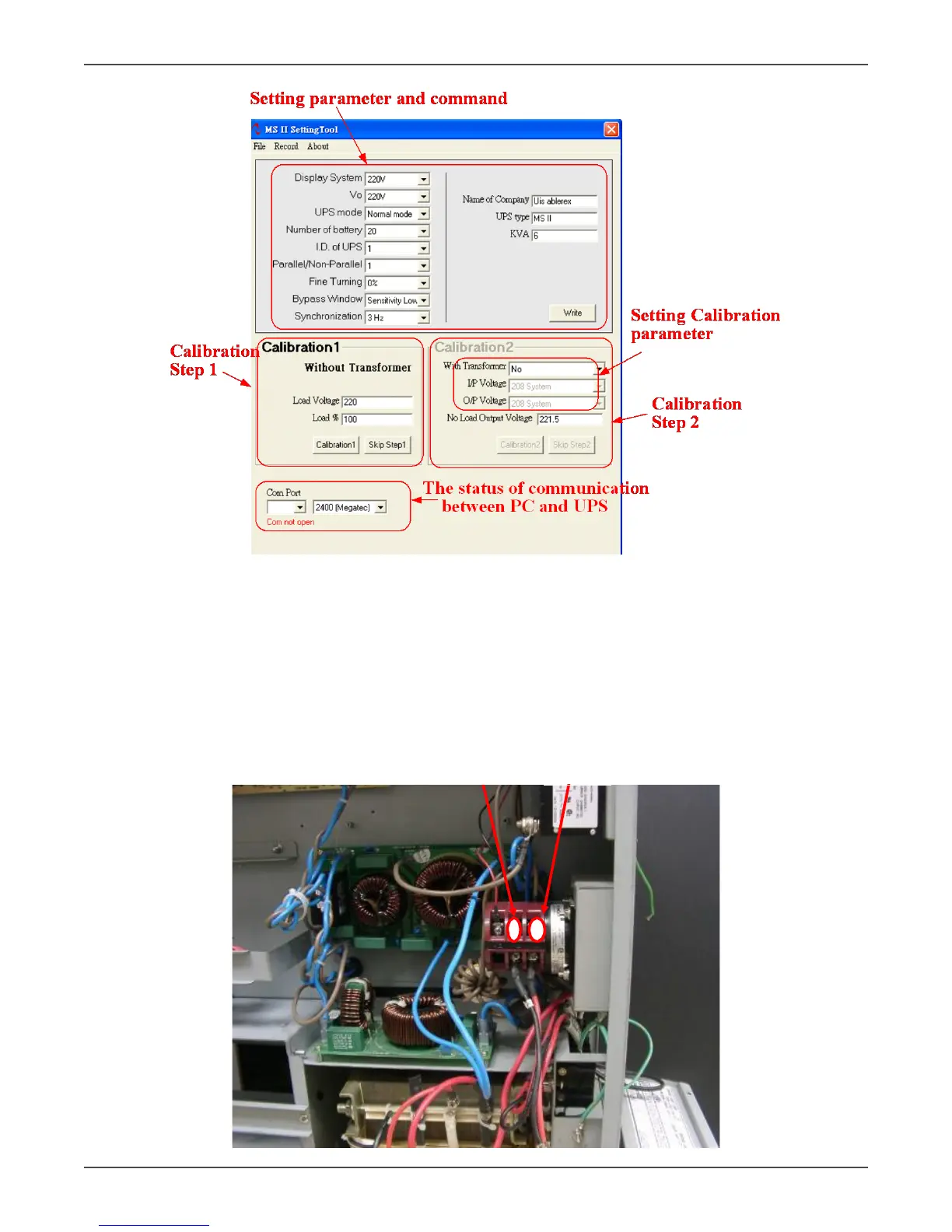

Calibraon: It is divided into two parts, one is front panel calibraon and the other is PC calibraon
Noce: The calibraon with load connected doesn’t include the power loss of the galvanic isolaon transformer;
therefore, the load can only be connected behind the output lter as indicated as A & B (the UPS with galvanic
isolaon transformer or the output terminal bar(the UPS without galvanic isolaon transformer.)
