7000 Series Parts Manual
21
Copyright © 1998-2020, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved.
Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and
Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

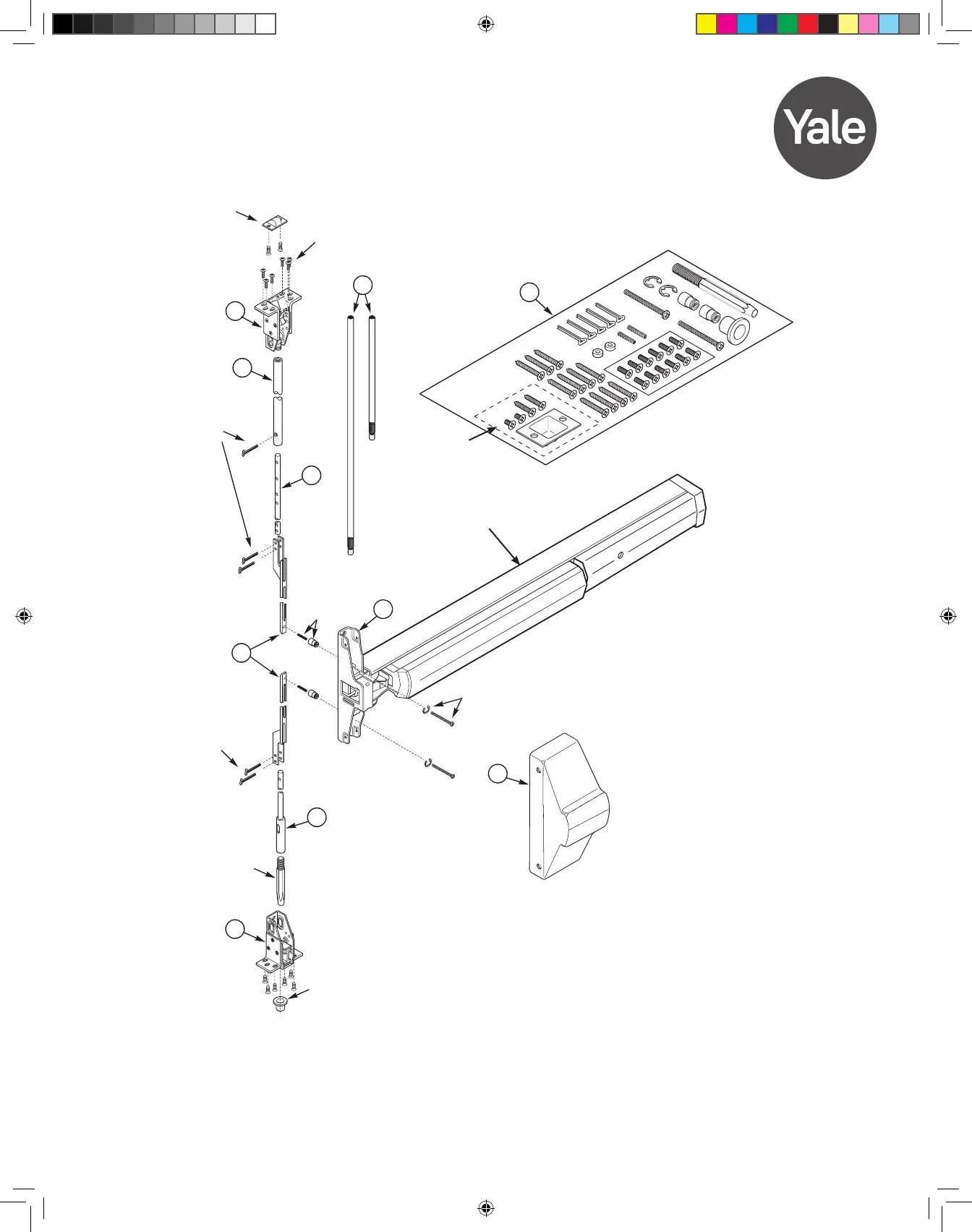

7160(F) Concealed Vertical Rod
52
PART OF
CVR PACK
ITEM 46
1
47
51
PART OF
CVR PACK
ITEM 46
PART OF
CVR PACK
ITEM 46
PART OF
CVR PACK
ITEM 46
PART OF
CVR PACK
ITEM 46
2
35
PART OF
CVR PACK
ITEM 46
46
36
37
49
PART OF
CVR PACK
ITEM 46
PART OF
CVR
PACK
ITEM 46
SEE TOUCHBAR SECTION FOR
TOUCHBAR COMPONENTS
Pages 28 & 29
761
STRIKE PACKET
