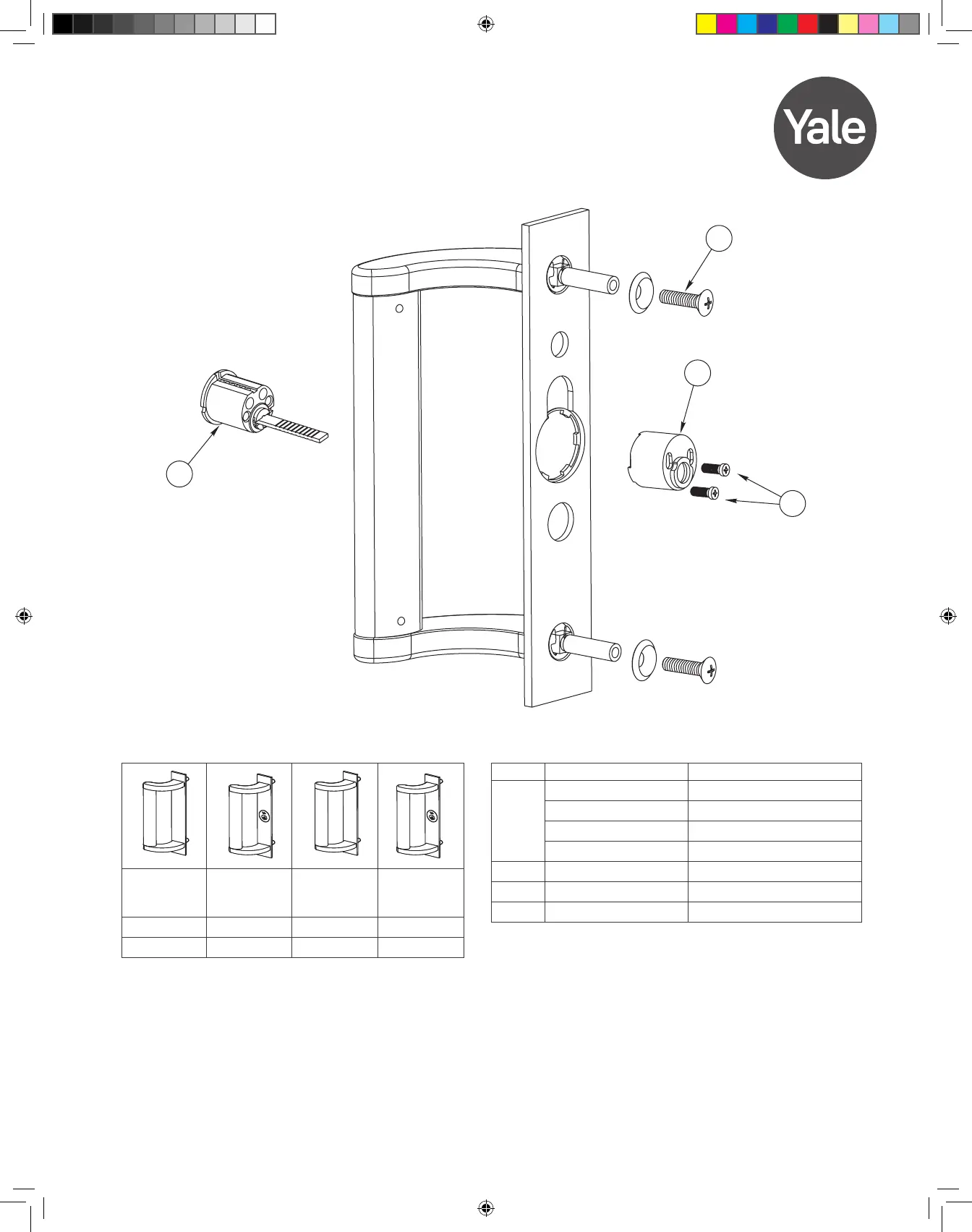

480F, 481F, 482F, 483F Trim
5
6
1
3
481F
Item Part No. Description
1
8195001476FIN Screw Packet, Mtg.
Consists of the following:
8100130670FIN Screw 1/420 x 1 OPHMS(2)
9999997156FIN Washer #14 Finish (2)
3 See Chart Page 61 Cylinder, Rim
5 6020006206082 Housing, Cylinder (481F)
6 6070001235048 Screw, Cylinder Mtg. (2)
Note: Handle and Escutcheon sold as assembly only.
Dummy
Pull
Nightlatch
Dummy
Pull (Special
lengths)
Nightlatch
(Special
lengths)
02 03 02 03
480F 481F 482F 483F
