Yale 7000 Series User Manual

7000 Series Parts Manual
6
Copyright © 2002-2020, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved.
Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress
Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

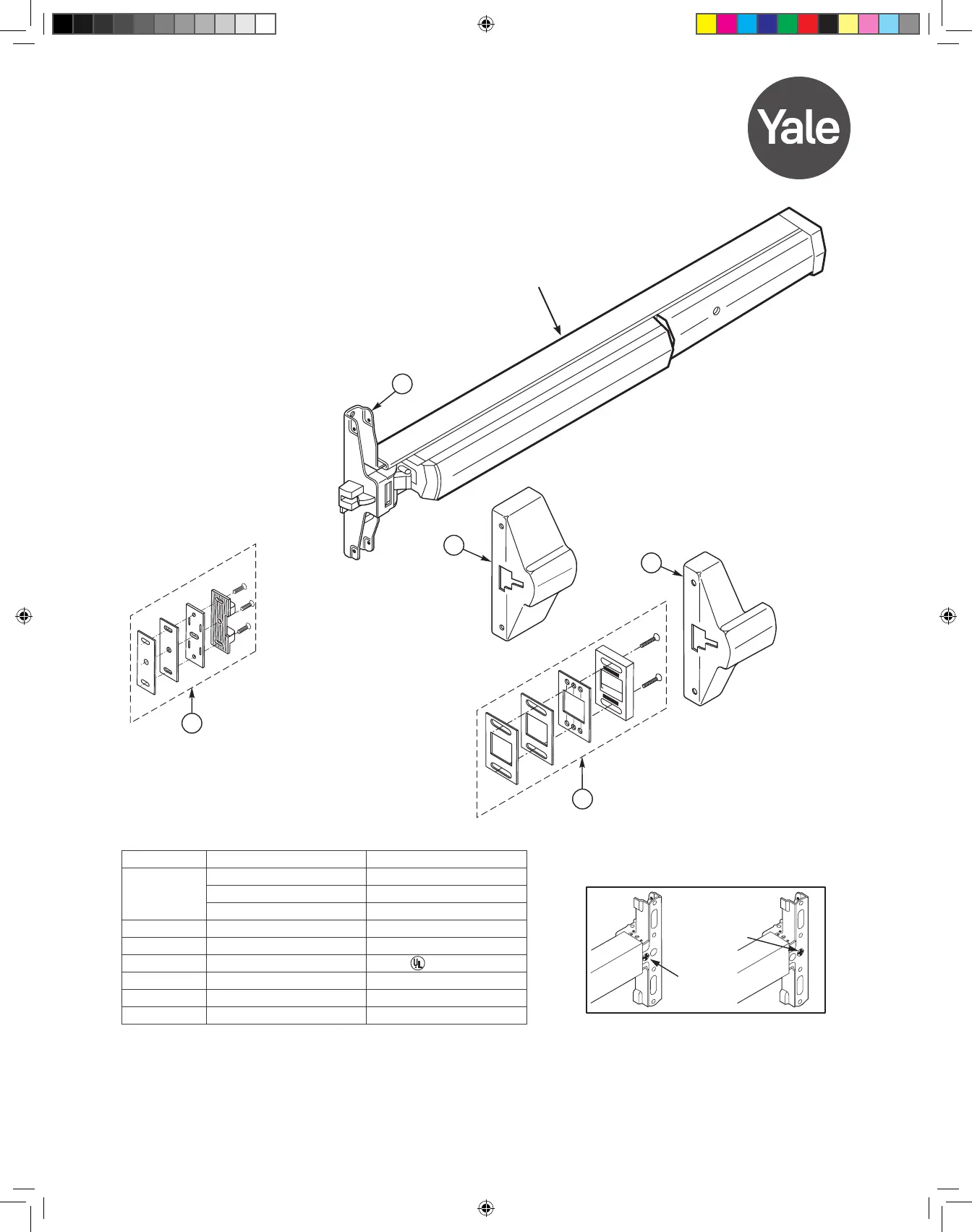

757F STRIKE PKG.
[7150(F)]
2
30
1
31
759 STRIKE PKG.
(7250)
7250
7150(F)
2
Difference in Latch Assemblies
7250
Hub Position
7150(F)
Hub Position
Item Part No. Description
1
Latch Assembly
6071500005048 7150, 7150F
6072500001048 7250
2 Cover
607150X001FIN 7150
Not Available 7150F
607250X001FIN 7250
30 8198000001999 757F Strike Packet 7150(F)
31 8195001357200 759 Strike Packet 7250
7150(F)/7250 Rim Exit Device
SEE TOUCHBAR SECTION FOR
TOUCHBAR COMPONENTS
Pages 28 & 29
