Yale 7000 Series User Manual

7000 Series Parts Manual
4
Copyright © 2002-2020, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved.
Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress
Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
757F STRIKE PKG.
[7100(F)]
2
31
1
32
759 STRIKE PKG.
(7200)
7200
7100(F)
2
Difference in Latch Assemblies
7200
Hub Position
7100(F)
Hub Position

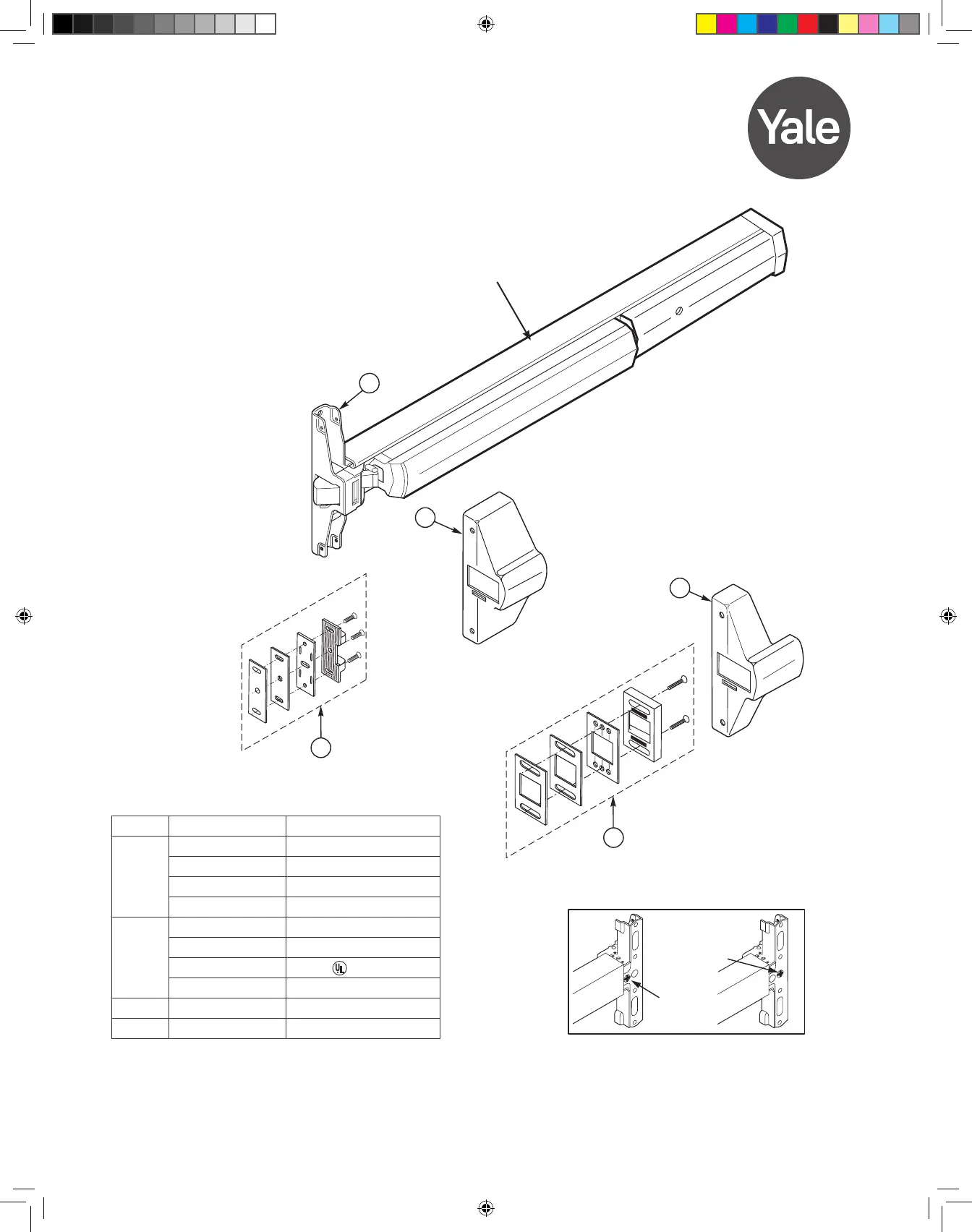

7100(F)/7200 Rim Exit Device
Item Part No. Description
1
Latch Assembly
6070000419048 7100
6070000425048 7100F
6072000354048 7200
2
Cover
607100X026FIN 7100
Not Available 7100F
607000X111FIN 7200
31 8198000001999 757F Strike Packet 7100(F)
32 8195001357200 759 Strike Packet 7200
SEE TOUCHBAR SECTION FOR
TOUCHBAR COMPONENTS
Pages 28 & 29
