Yale 7000 Series User Manual

7000 Series Parts Manual
5
Copyright © 1998-2020, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved.
Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and
Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
757F STRIKE PKG.
[7200M(F)]
2
31
1
Latch Assembly
7200M(F)
Hub Position

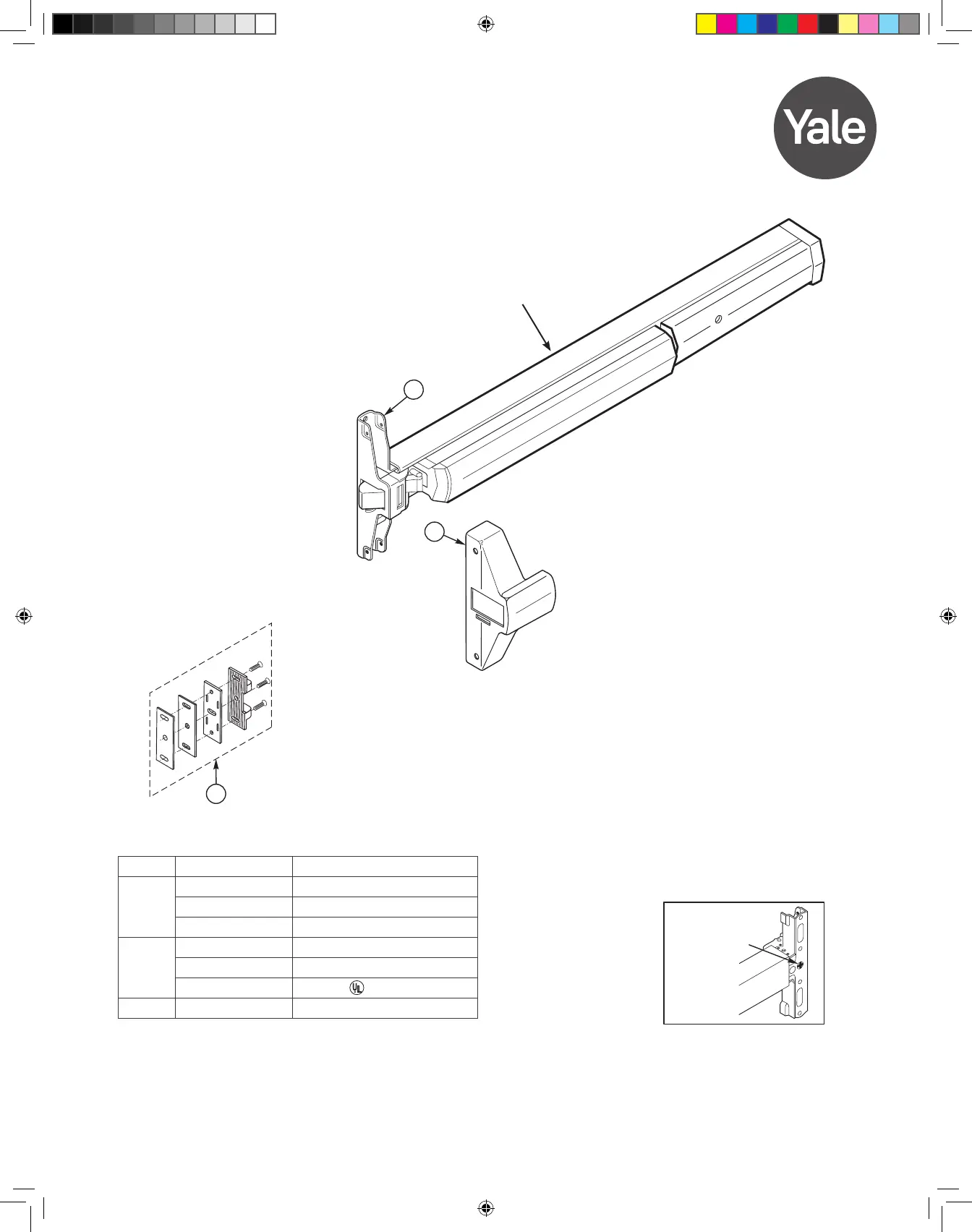

7200M(F) Rim Exit Device
SEE TOUCHBAR SECTION FOR
TOUCHBAR COMPONENTS
Pages 28 & 29
Item Part No. Description
1
Latch Assembly
6072000354048 7200M
6072000362048 7100MF
2
Cover
607000X111FIN 7200M
Not Available 7100MF
31 8198000001999 757F Strike Packet 7200M(F)
