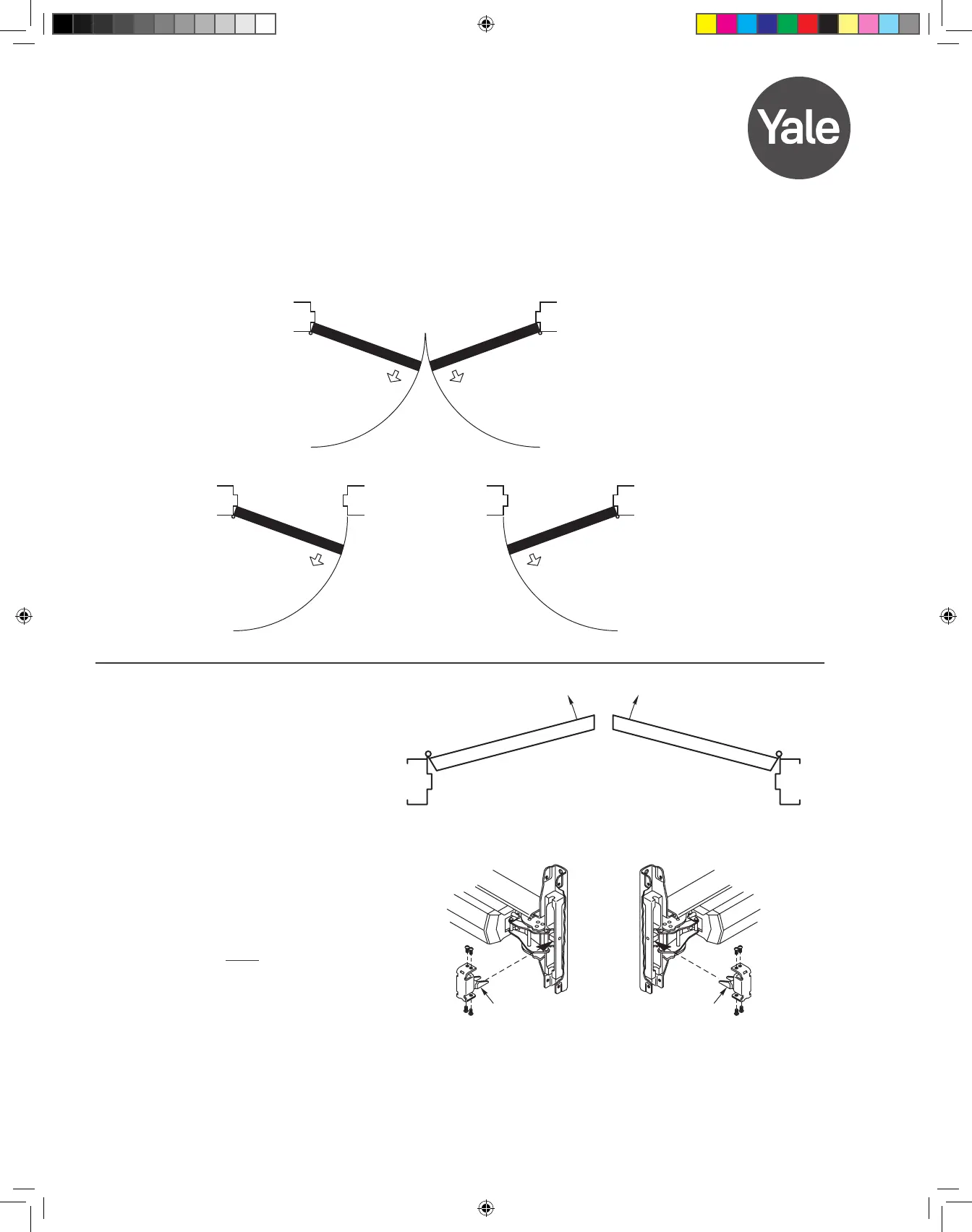

Handing Instructions
Rim Devices
7100(F), 7150(F), 7200(F) Series
These devices are non-handed.
Vertical Rod Devices, Surface
and Concealed
7110(F), 7120(F), 7160(F), 7170(F),
7210(F), 7220 Series
Remove four screws and vertical lifter
assembly. Turn device to opposite (180
degrees) orientation, insert lifter assembly
and reinstall screws.
NOTE: Lifter must fit under lift block
as shown.
Device Side
LHR DoorRHR Door
VERTICAL LIFTER
ASSEMBLY
RHR DEVICE
UNDER
LIFT BLOCK
LHR DEVICE
VERTICAL LIFTER
ASSEMBLY
UNDER
LIFT BLOCK
Handing
Left Hand Reverse: Hinges on left, opens outward. For handed devices, specify LHR.
Right Hand Reverse: Hinges on right, opens outward. For handed devices, specify RHR.
Note: Doors with Panic-Exit and Fire Exit hardware must open out. Therefore, hands must be reverse bevel.
PUSH SIDE
PULL SIDE
LEFT HAND
REVERSE
BEVEL DOOR
RIGHTHAND
REVERSE
BEVEL DOOR
PUSH SIDE PUSH SIDE
PULL SIDEPULL SIDE
STRIKE
JAMB
STRIKE
JAMB
HINGE
JAMB
HINGE
JAMB
LHR RHR
