Yale 7000 Series

7000 Series Parts Manual
61
Copyright © 1998-2020, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved.
Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and
Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

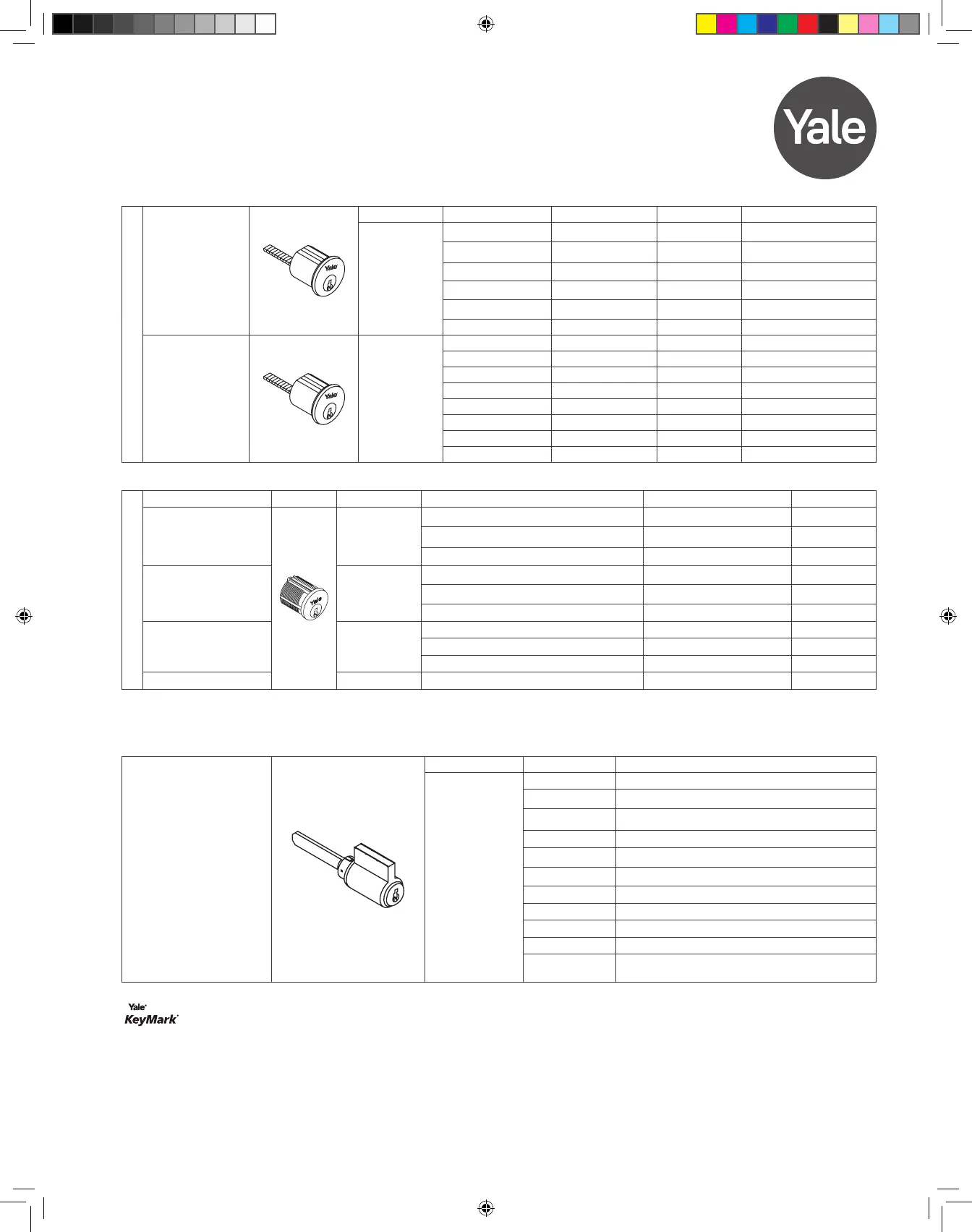

Cylinders
Note: Mounting screw part numbers shown are the screws to mount the cylinder.
As with exit device trim you must order a cylinder to go with a keyed removable mullion. The Yale
®
keyed removable mullion accepts a standard 6-pin 2153 mortise
cylinder with cam #2160. Other cylinders are optional.
*U5153 6 and 7-pin cylinders cannot be used with a keyed removable mullion.
*AU & PB levers only.
Refer to separate catalog section for availability.
Rim Cylinder
Narrow
Escutcheon Trim
500F/510F Series
Rim cylinders
with special #599
cylinder rings. NOT
AVAILABLE with
U5109 cylinder.
Application: Cylinder(s) Description Cylinder Ring Mounting Screws
7200, 7200M,
7200MF Rim
7250, 7250M,
7250MF
SquareBolt
®
7210, 7210M,
7210MF SVR
7220, 7220M,
7220MF CVR
1109 / 5109 6-pin Standard / Security 599-.419 6070001235048
1109 / 5109 7-pin Standard / Security 599-.419 6070001235048
1193 / 5193 6-pin I.C. / Sec. I.C. 599-.544 1011931018048
1193 / 5193 7-pin I.C. / Sec. I.C. 599-.544 1011931018048
1709 6-pin CMK Cylinder 599-.544 3423118738048
1709 7-pin CMK Cylinder 599-.700 3423118738048
Escutcheon Trim
620F/630F and 600
Series Electric Trim
Rim Cylinders
7100(F), Rim
7150(F)
SquareBolt
®
7110(F),
7170(F) SVR
7120(F),
7160(F) CVR
1109 / 5109 6-pin Standard / Security ----- 6070001235048
U5109 6-pin High Security ----- 6070001235048
1109 / 5109 7-pin Standard / Security ----- 6070001235048
U5109 7-pin High Security ----- 6070001235048
1709 6-pin CMK Cylinder 1765-.250 3423118738048
1709 7-pin CMK Cylinder 1765-.250 3423118738048
1193 / 5193 6-pin Std. / Sec. I.C. 1765-.250 1011931018048
1193 / 5193 7-pin Std. / Sec. I.C. 1765-.344 1011931018048
Mortise Cylinder
Application: Cylinder(s) Description Cylinder Ring
Mortise Exit Devices
Escutcheon Trim
650F/660F Series
7130(F) Mortise
2153 / 5153, 6 or 7-pin, 11/2" (38mm) Standard / Security ----
2196 / 5196 6-pin Std. I.C. / Sec. I.C. ----
2197 / 5197 7-pin Std. I.C. / Sec. I.C. 1765 - .062
Keyed Removable Mullions
KRM200/200F
7100(F),
7150(F), 7200,
7250, 7200M(F),
7250(F)
2153/5153*, 6 or 7-pin, 11/8" (29mm) Standard / Security -----
2196 / 5196 6-pin Std. I.C. / Sec. I.C. 1765-.250
2197 / 5197 7-pin Std. I.C. / Sec. I.C. 1765-.250
Cylinder Dogging Panic-rated
devices
2153 , 6-pin, 11/8" (29mm) Standard ----
2153, 7-pin 11/4" (32mm) Optional 7-pin 1765 - .156
2196, 6-pin 11/2" (38mm) Std. I.C. 6-pin 1765 - .406
SecureX™ & Alarm Kit All Exit Devices 2197, 7-pin 111/16" (42mm) Std. I.C. 7-pin 1765 - .594
Knob or Leverset Trim
540F Series Trim
Keyed trim uses Yale
®
cylindrical lock cylinders.
Application: Cylinder(s) Description
7100(F) Rim
7150(F)
SquareBolt
7110(F), 7170(F)
SVR
7120(F) CVR
1801 6-pin Knob Cyl. (Std.)
1802 6-pin Lever Cyl. (Std.)
1802A 7-pin Lever Cylinder
1210 6-pin I.C. Lever Cylinder
1220 7-pin I.C. Lever Cylinder
5802 6-pin Security Lever Cyl.
5802A 7-pin Security Lever Cyl.
5210 6-pin I.C. Security Cyl.
5220 7-pin I.C. Security Cyl.
107S Adaptor kit for Schlage® Cyl.
“B” Trim Prefix
Trim with lever for Best®, Arrow® or Falcon® SFIC
cylinder (specify 6 or 7-pin)
