7000 Series Parts Manual
46
Copyright © 2002-2020, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved.
Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress
Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

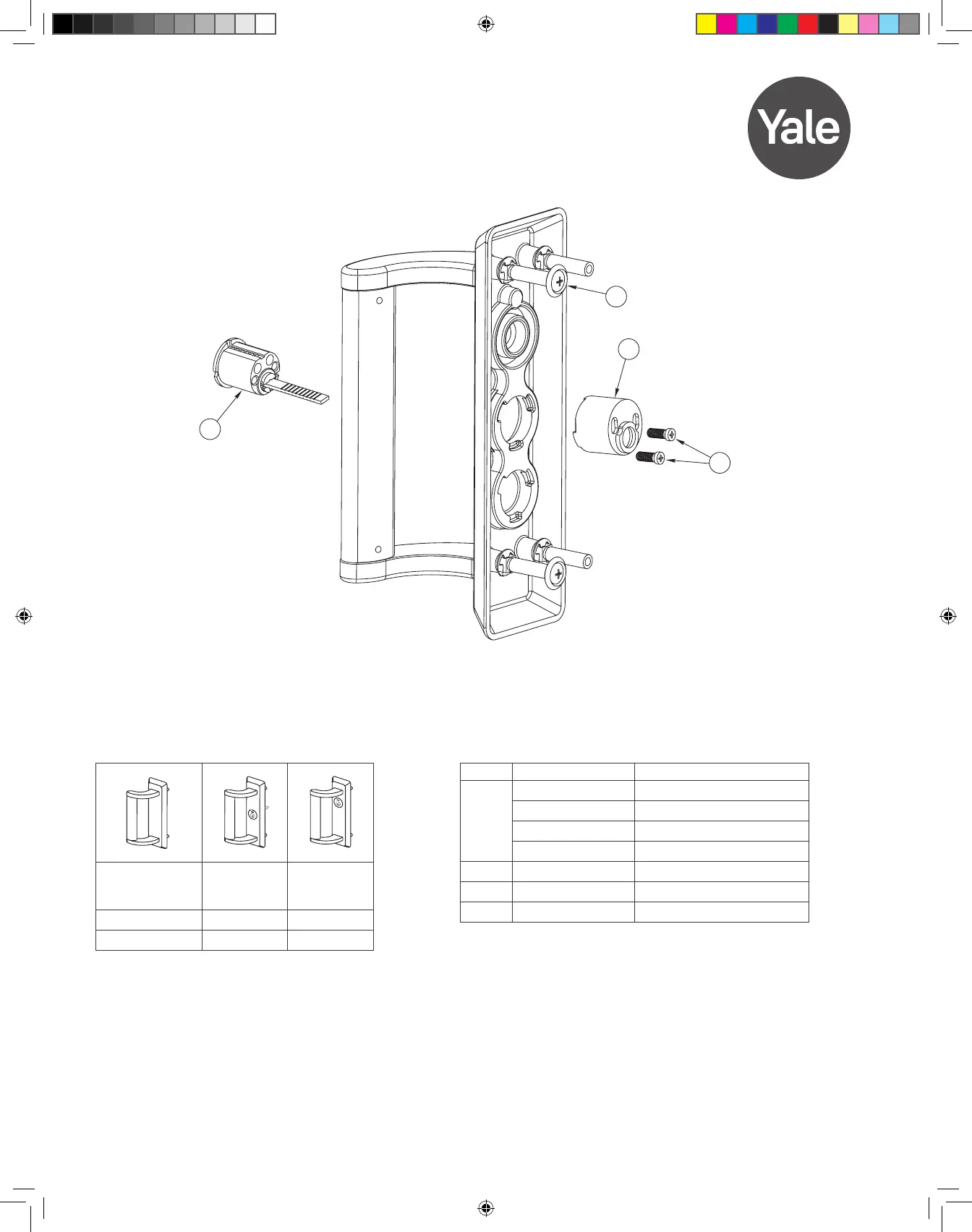

680F, 681F, 684F Trim
5
6
1
3
681F
Item Part No. Description
1
8195001476FIN Screw Packet, Mtg.
Consists of the following:
8100130670FIN Screw 1/420 x 1 OPHMS(2)
9999997156FIN Washer #14 Finish (2)
3 See Chart Page 61 Cylinder, Rim or Mortise
5 6020006206082 Housing, Cylinder (681F)
6 6070001235048 Screw, Cylinder Mtg. (2)
Note: Handle and Escutcheon sold as assembly only.
Dummy
Pull
Nightlatch
Mortise
Nightlatch
02 03 03
680F 681F 684F
