7000 Series Parts Manual
23
Copyright © 1998-2020, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved.
Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and
Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
52
PART OF
CVR PACK
ITEM 46
1
47
51
PART OF
CVR PACK
ITEM 46
PART OF
CVR PACK
ITEM 46
2
55
CVR PACK
ITEM 46
46
36
37
PART OF
PACK
ITEM 46
(Less Bottom Rod)
SEE TOUCHBAR SECTION FOR
TOUCHBAR COMPONENTS
Pages 28 & 29

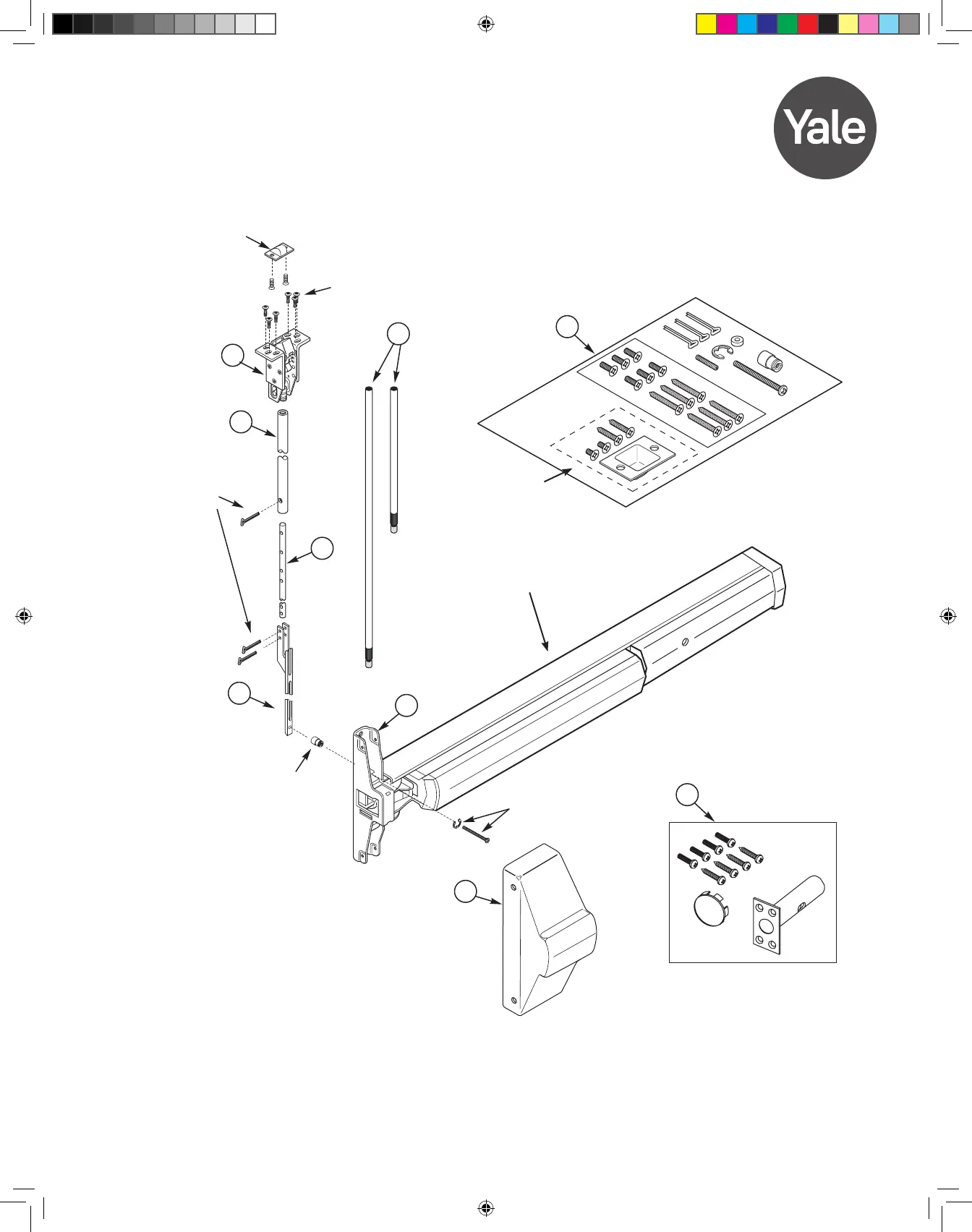

7160(F) LBR Concealed Vertical Rod
761
STRIKE PACKET
