Yale 7000 Series User Manual

7000 Series Parts Manual
9
Copyright © 1998-2020, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved.
Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and
Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
32
PART OF
SVR PACK
ITEM 34
Difference in Latch Assemblies
7210
Hub Position
7110(F)
Hub Position
23
PART OF
SVR PACK
ITEM 34
PART OF
SVR PACK
ITEM 34
PART OF
SVR PACK
ITEM 34
PART OF
SVR PACK
ITEM 34
PART OF
SVR
PACK
ITEM 34
791 TOP
STRIKE
PACKET
PART OF
ITEM 34
35
39
39
37
2
40
2
7210 Only
1
39
39
36
32
3
23
33
34

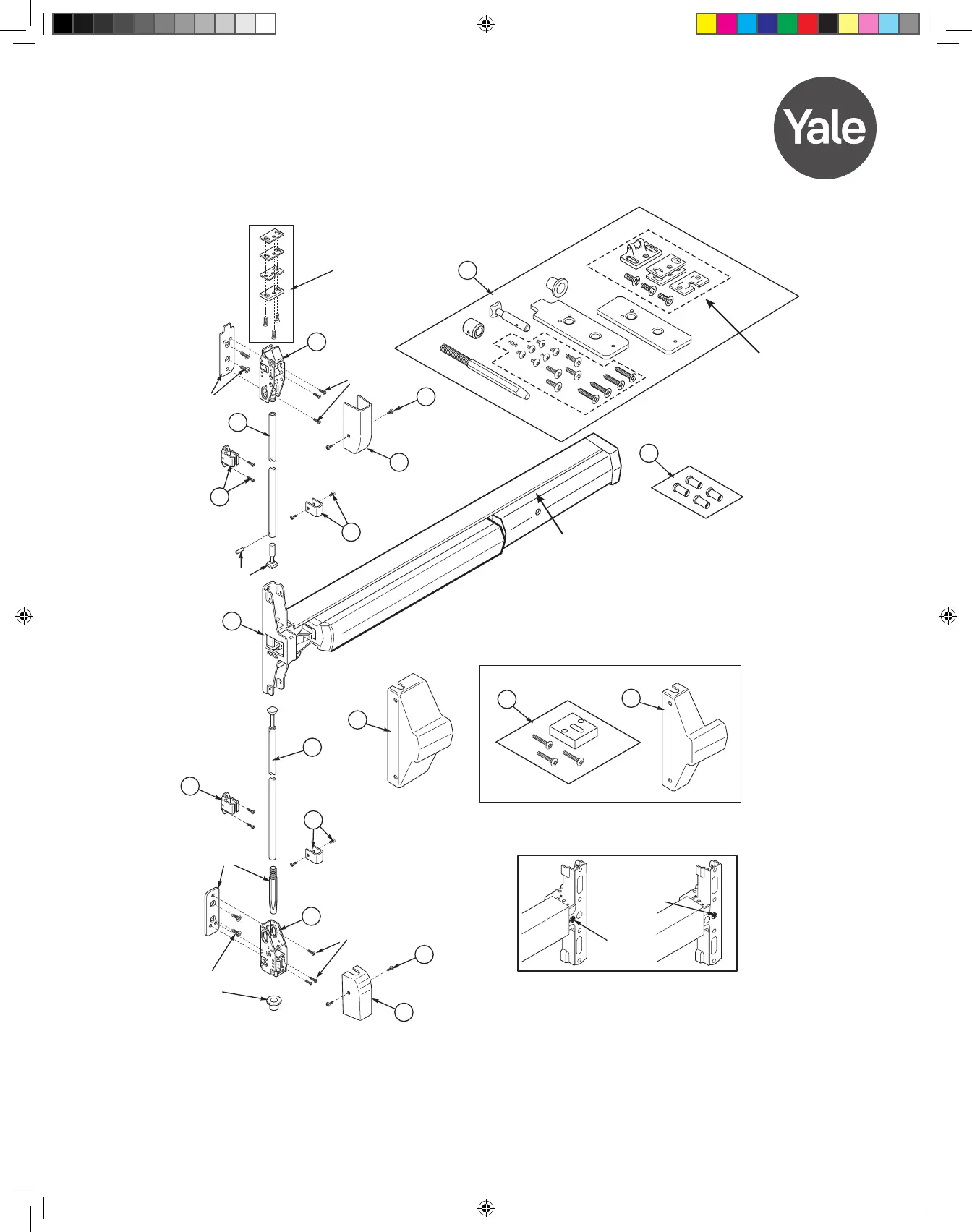

7110(F)/7210 Surface Vertical Rod
SEE TOUCHBAR SECTION FOR
TOUCHBAR COMPONENTS
Pages 28 & 29
791
STRIKE
PACKET
