5-37
ELEC

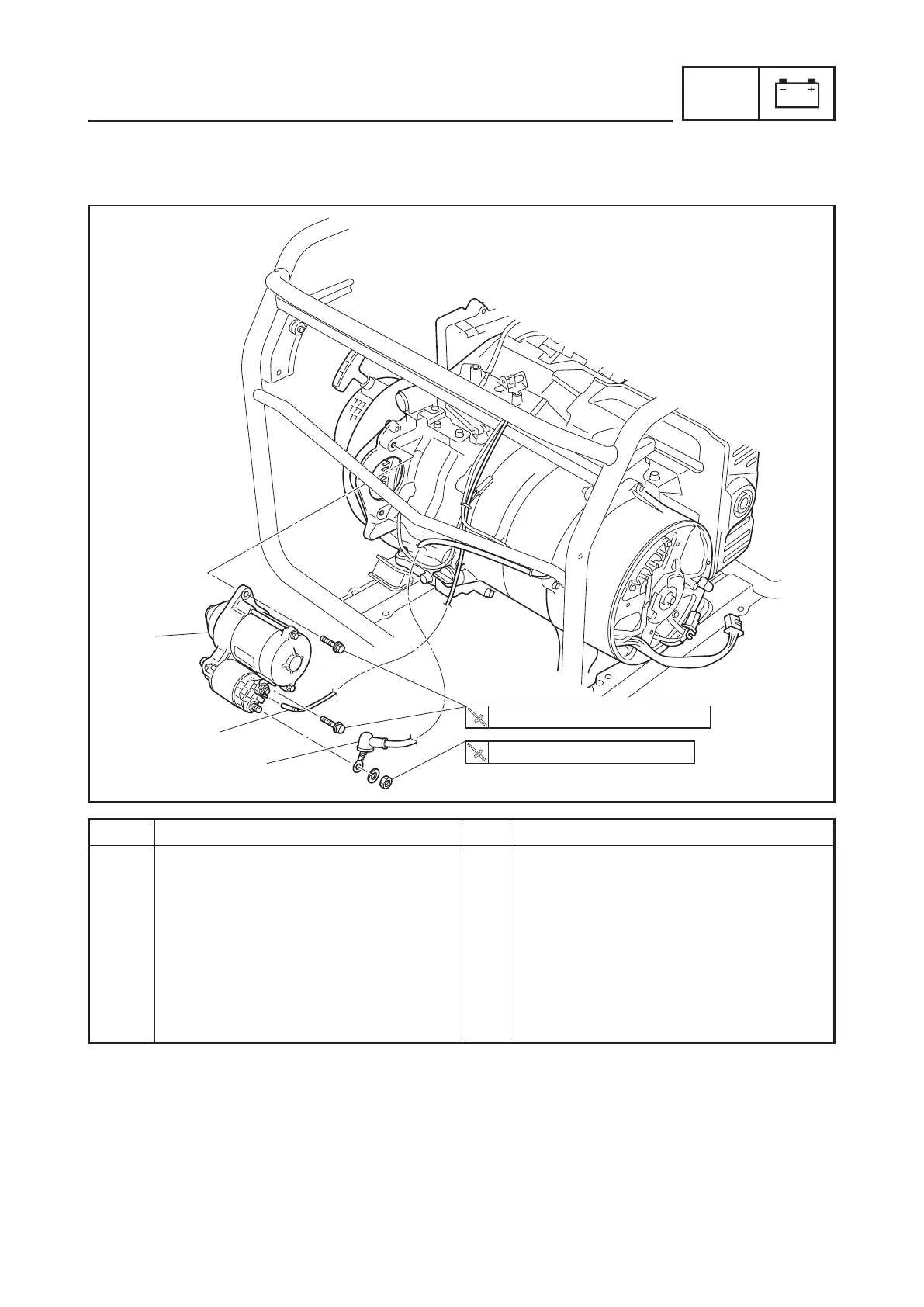

ELECTRIC STARTING SYSTEM
(EF7000E/EF7200E/EF7200DE)
1
3
16 Nm (1.6 m · kgf, 12 ft · lbf)
2
9 Nm (0.9 m · kgf, 6.5 ft · lbf)
Order Job/Parts to remove Q’ty Remarks
Removing the starter motor Remove the parts in the order listed.
Negative battery lead Disconnect.
Carrier frame Refer to “HANDLE AND WHEELS (FOR
EF7200DE CAN)” on 3-23.
Control box Refer to “CONTROL BOX” on 3-1.
Fuel tank Refer to “FUEL TANK, CANISTER” on 3-7.
1 Positive battery lead 1 Disconnect.
2 Starter relay lead 1 Disconnect.
3 Starter motor assembly 1
REMOVING THE STARTER MOTOR
