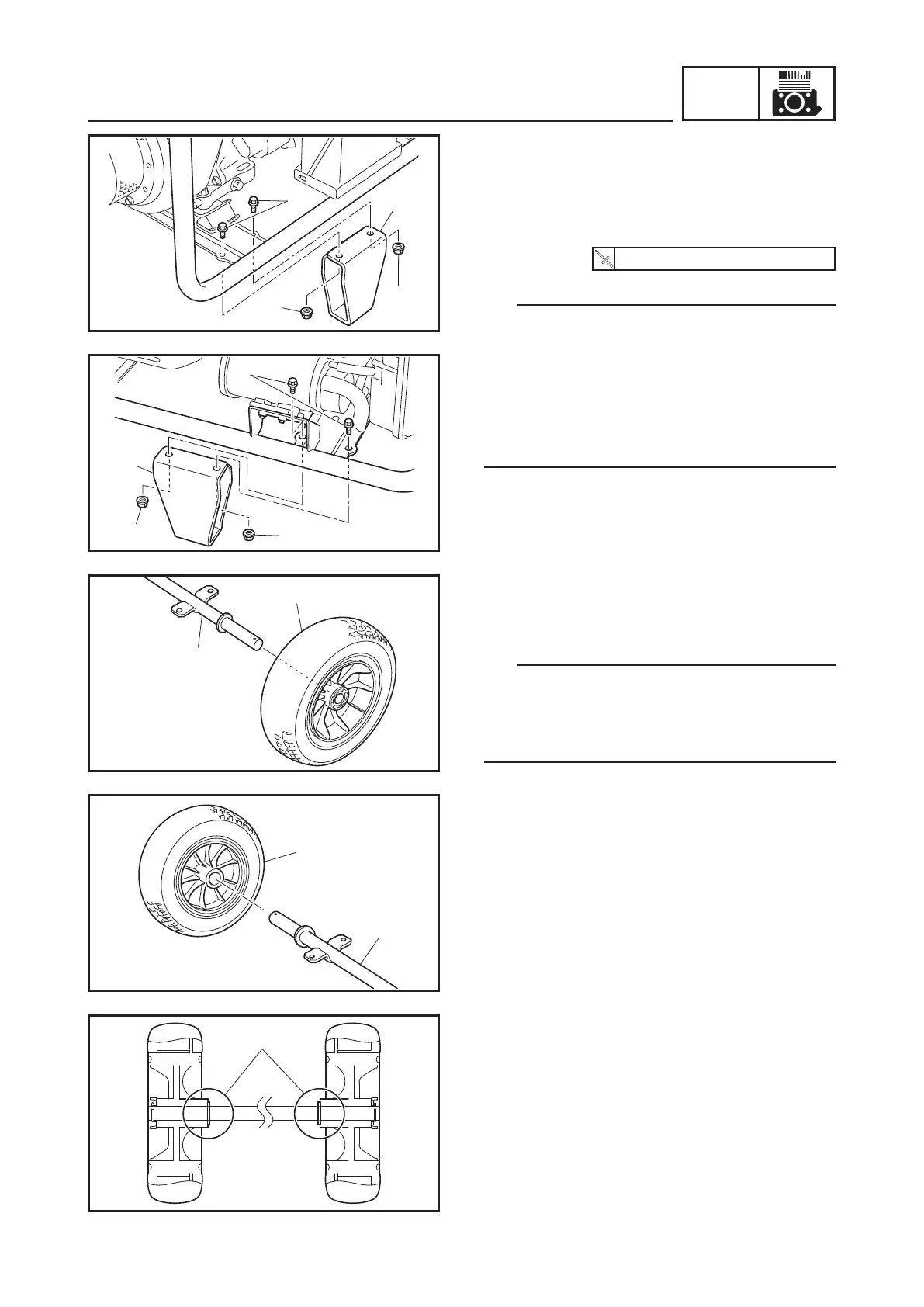

HANDLE AND WHEELS (FOR EF7200DE CAN)
INSTALLING THE WHEELS
1. Install:
9 Main stand 1
9 Main stand bolts 2
9 Main stand nuts 3
16 Nm (1.6 m · kgf, 12 ft · lbf)
TIP
9 Lift the generator 20 cm (7.87 in) off the
ground using a winch or other suitable lift-
ing device.
9 Fasten the main stand 1 to the left side of
the generator frame as viewed when look-
ing at the control panel with the main stand
bolts 2 and nuts 3.
2. Install:
9 Wheels 1
9 Wheel axle frame 2
TIP
9 Install the wheels 1 into wheel axle frame
2.
9 Make sure the installation direction a of the
wheels 1 are correct.
1
2
3
3
1
2
3
3
1
2
1
2
a
To Next Page
