3-27
ENG

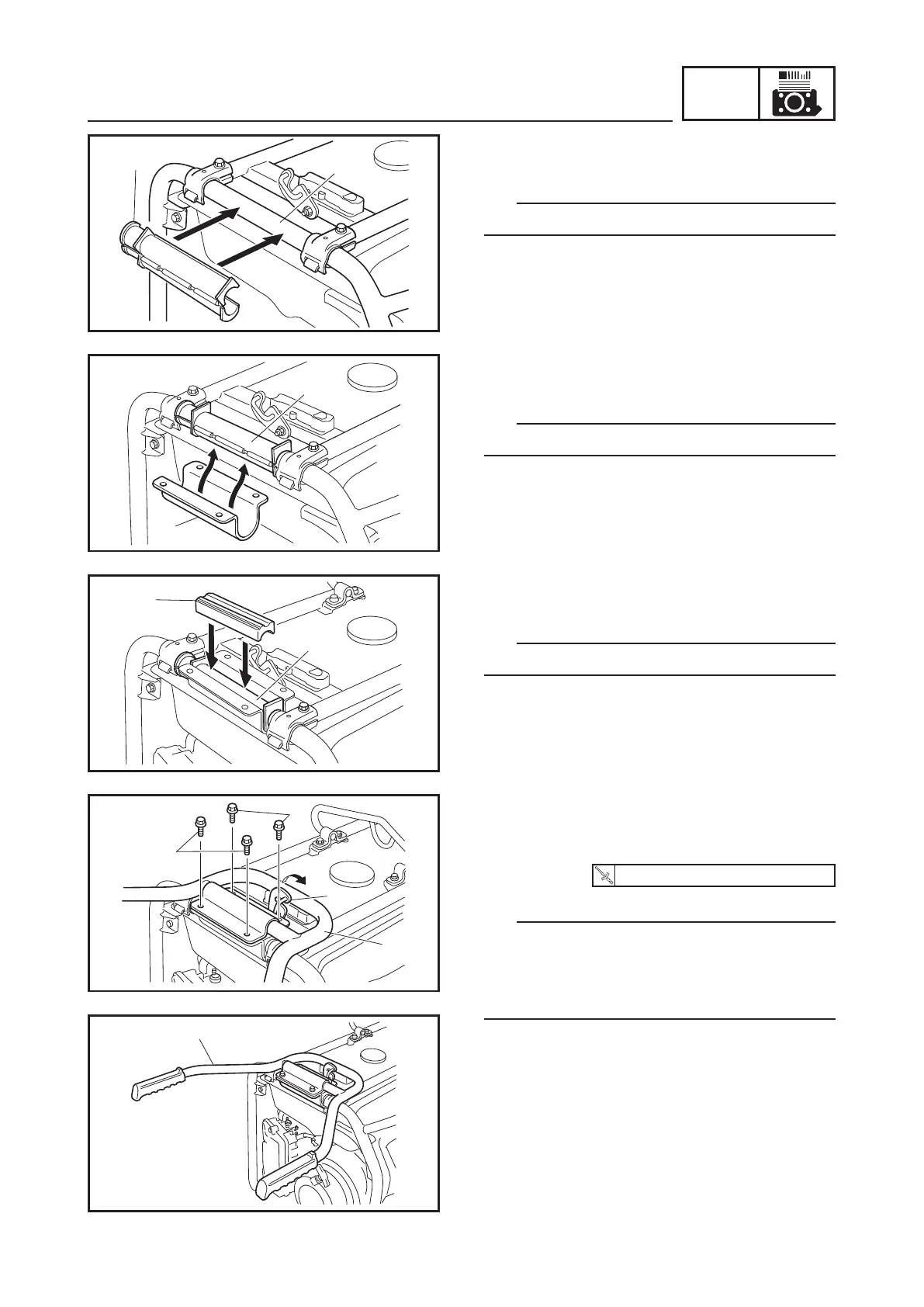

HANDLE AND WHEELS (FOR EF7200DE CAN)
1
2
1
2
1
2
2
2
3
1
1
5. Install:
9 Sleeve 1
TIP
Install the sleeve 1 on the generator frame 2.
6. Install:
9 Bracket handle 1
TIP
Install the bracket handle 1 to the sleeve 2.
7. Install:
9 Locating damper 1
TIP
Install the locating damper 1 on the sleeve 2.
8. Install:
9 Handle 1
9 Handle bolts 2
16 Nm (1.6 m · kgf, 12 ft · lbf)
TIP
9 Place the handle 1 on the carrier frame,
and then fasten with the handle bolts 2.
9 Lock the handle 1 into position with the
lock lever 3.
To Next Page
