Yamaha EF7000 - Ef7000 E;Ef7200 E;Ef7200 De

4-5
CARB

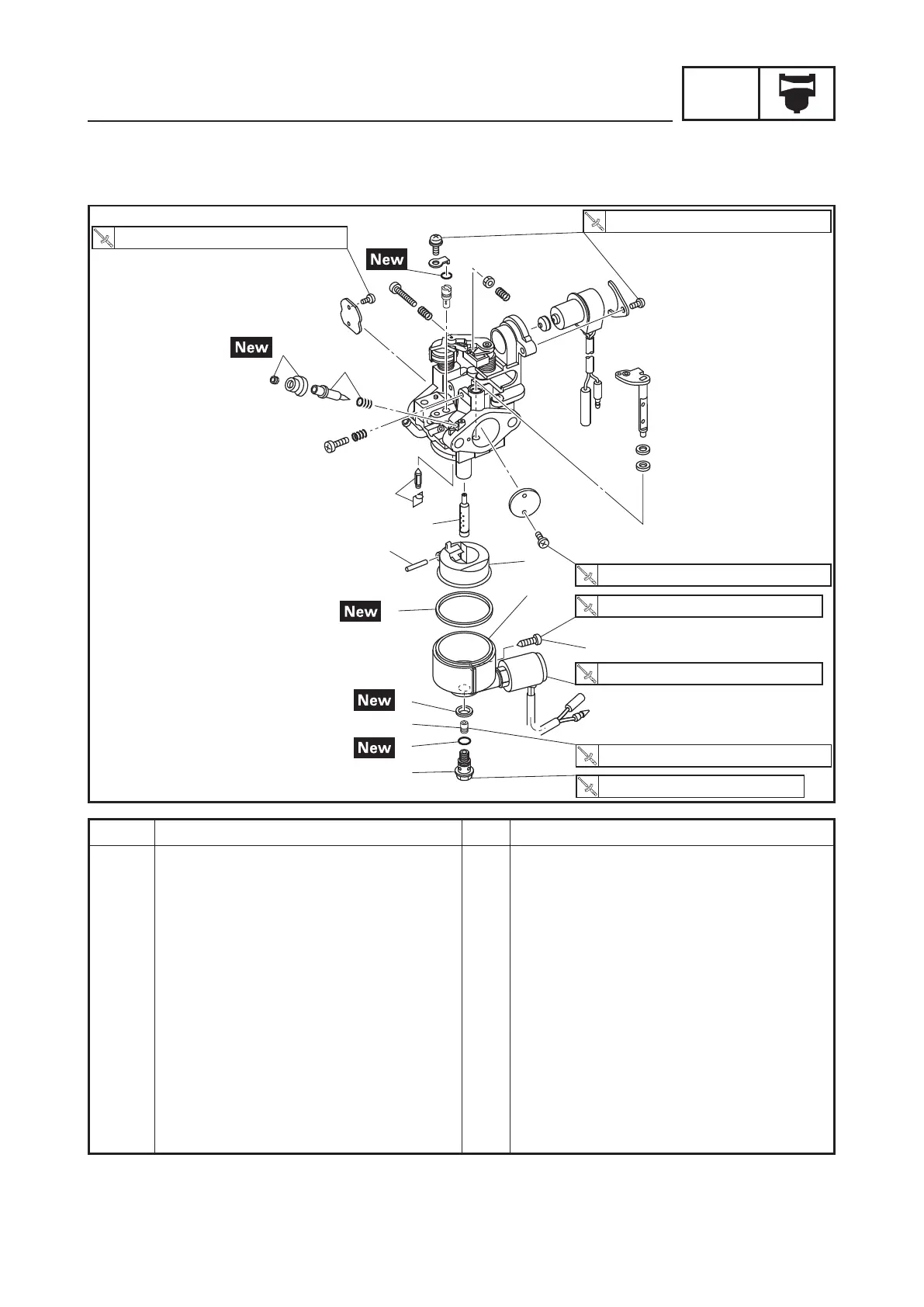

DISASSEMBLING THE CARBURETOR
EF7000E/EF7200E/EF7200DE
1
4
5
3
2
2.5 Nm (0.25 m · kgf, 1.8 ft · lbf)
1.0 Nm (0.10 m · kgf, 0.72 ft · lbf)
4.0 Nm (0.40 m · kgf, 2.9 ft · lbf)
7 Nm (0.7 m · kgf, 5.1 ft · lbf)
0.7 Nm (0.07 m · kgf, 0.51 ft · lbf)
3.5 Nm (0.35 m · kgf, 2.5 ft · lbf)
0.7 Nm (0.07 m · kgf, 0.51 ft · lbf)
6
7
8
9
0
q
w
e
Order Job/Parts to remove Q’ty Remarks
Disassembling the carburetor Disassemble the parts in the order listed.
1
Drain screw 1
2
Main jet holder 1
3
O-ring 1
4
Gasket 1
5
Main jet 1
6
Float chamber 1
7
Gasket 1
8
Main nozzle 1
9
Needle assembly 1
0
Float pin 1
q
Float 1
w
Cap 1
e
Pilot adjusting screw/Spring 1/1 2-1/2 turns out.
