4-1
CARB

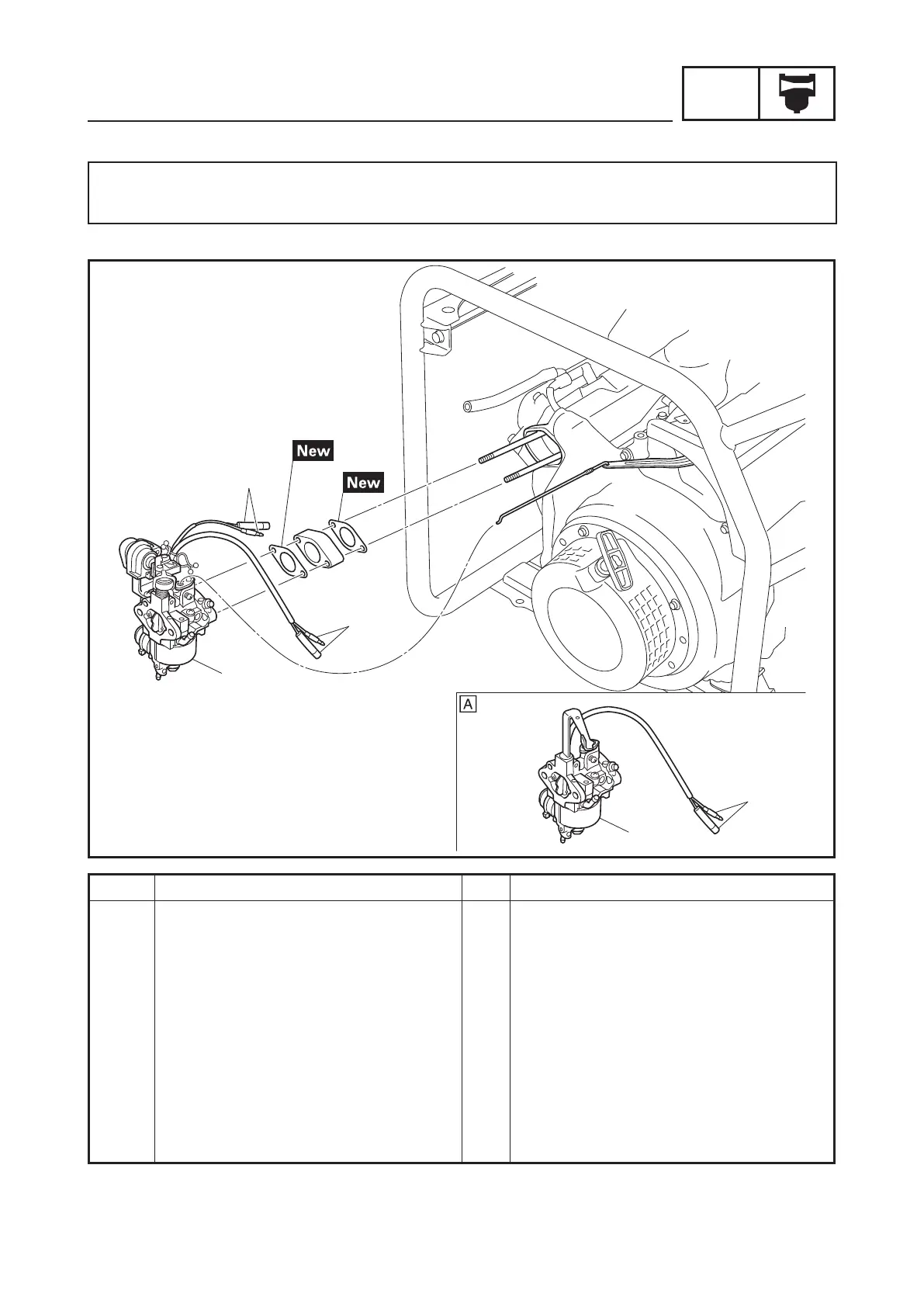

REMOVING THE CARBURETOR
1
2
3
1
3
Order Job/Parts to remove Q’ty Remarks
Removing the carburetor Remove the parts in the order listed.
Negative battery lead
Turn the fuel cock lever to the “OFF”
position.
Disconnect.
EF7000E/EF7200E/EF7200DE
Carrier frame Refer to “HANDLE AND WHEELS (FOR
EF7200DE CAN)” on 3-23.
Fuel tank Refer to “FUEL TANK, CANISTER” on 3-7.
Air filter Refer to “AIR FILTER” on 3-6.
1 Fuel cut solenoid valve lead 2
2 Auto choke lead 2 EF7000E/EF7200E/EF7200DE
3 Carburetor assembly 1
CARBURETOR
For complete information about procedures for carburetor maintenance, it is necessary to refer
to the MZ SERIES ENGINE SERVICE MANUAL 7VB-F8197-E0.
REMOVING THE CARBURETOR
To Next Page
