Yamaha EF7000 - ENGINE

3-12
ENG
ENGINE
1
2
3
10 Nm (1.0 m á kgf, 7.2 ft á lbf)
2
32 Nm (3.2 m á kgf, 23 ft á lbf)
32 Nm (3.2 m á kgf, 23 ft á lbf)

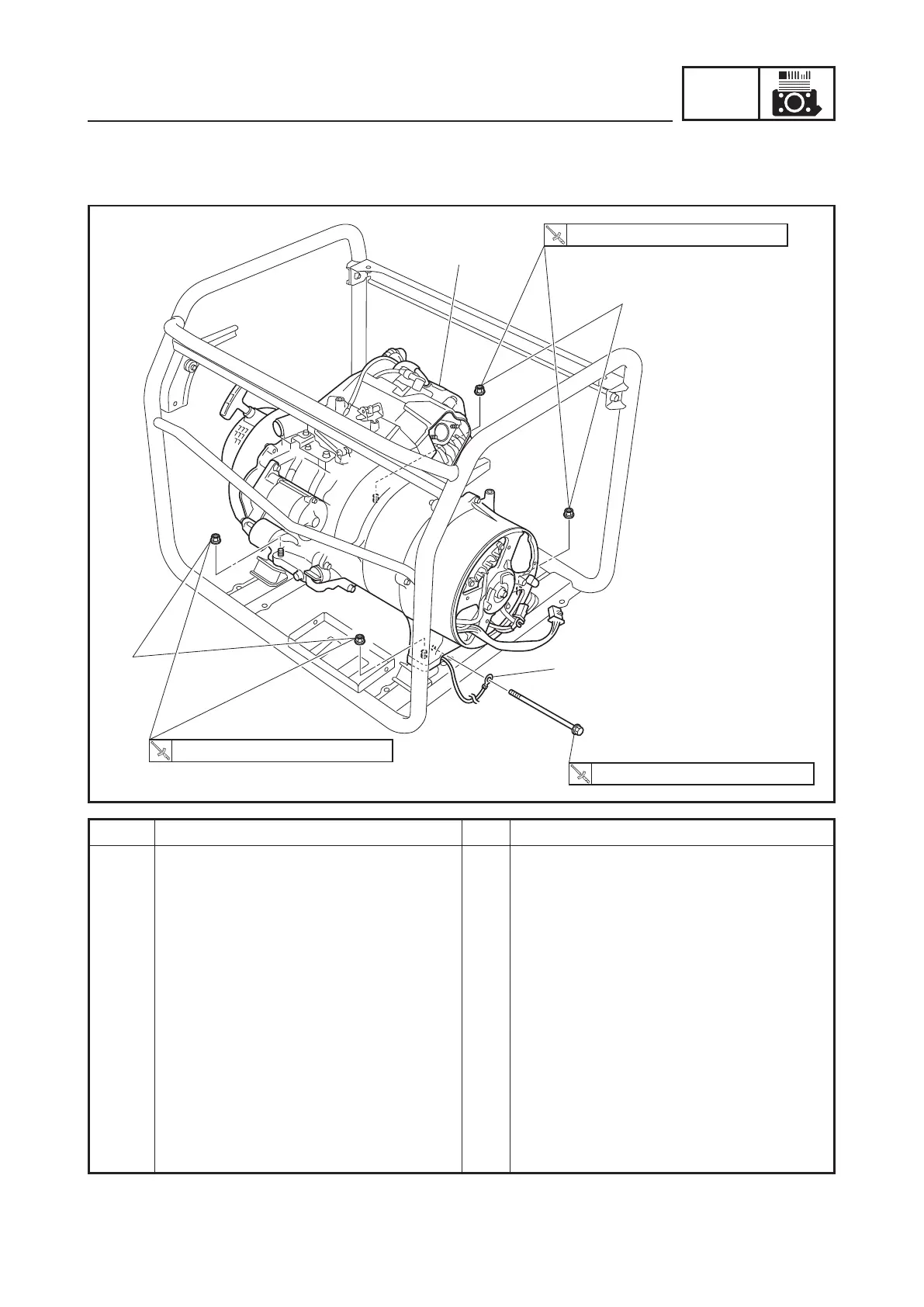

Order Job/Parts to remove Q’ty Remarks
Removing the engine Remove the parts in the order listed.
Engine oil Drain.
Refer to “REPLACING THE ENGINE
OIL” on 2-6.
Handle and wheels Refer to “HANDLE AND WHEELS (FOR
EF7200DE CAN)” on 3-23.
Control box Refer to “CONTROL BOX” on 3-1.
Fuel tank/Canister Refer to “FUEL TANK, CANISTER” on 3-7.
Air filter Refer to “AIR FILTER” on 3-6.
Muffler Refer to “MUFFLER” on 3-10.
Battery Refer to “BATTERY (EF7000E/
EF7200E/EF7200DE)” on 5-18.
1 Ground lead 1 For EF7200DE CAN
2 Engine mounting nut 4
3 Engine assembly 1
