CONTROL BOX
1
a
b

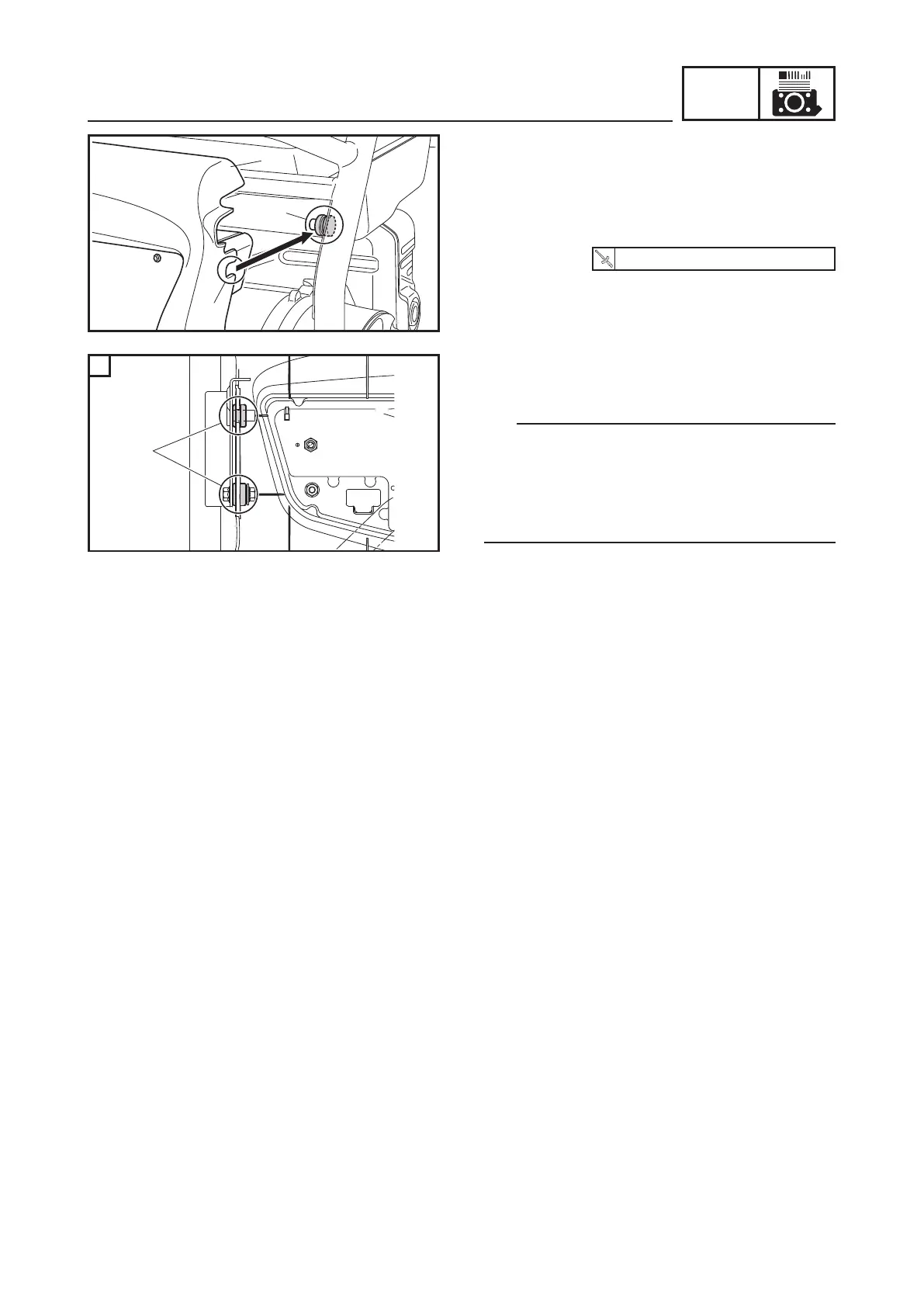

INSTALLING THE CONTROL BOX
1. Install:
9 Control box 1
9 Control box bolts
9 Control box nuts
7 Nm (0.7 m · kgf, 5.1 ft · lbf)
c
A
A
Behind the control box
TIP
9 Install the a portion of the control box to
the frame b at both sides.
9 When installing the grommet c, make sure
that it is facing direction shown in the illus-
tration.
