Yamaha EF7000 - Piston, Camshaft and Crankshaft

3-20
ENG
PISTON, CAMSHAFT, CRANKCASE, AND
CRANKSHAFT
1
2
3
3
4
5
6
7
7
8
9
10
20 Nm (2.0 m á kgf, 14 ft á lbf)

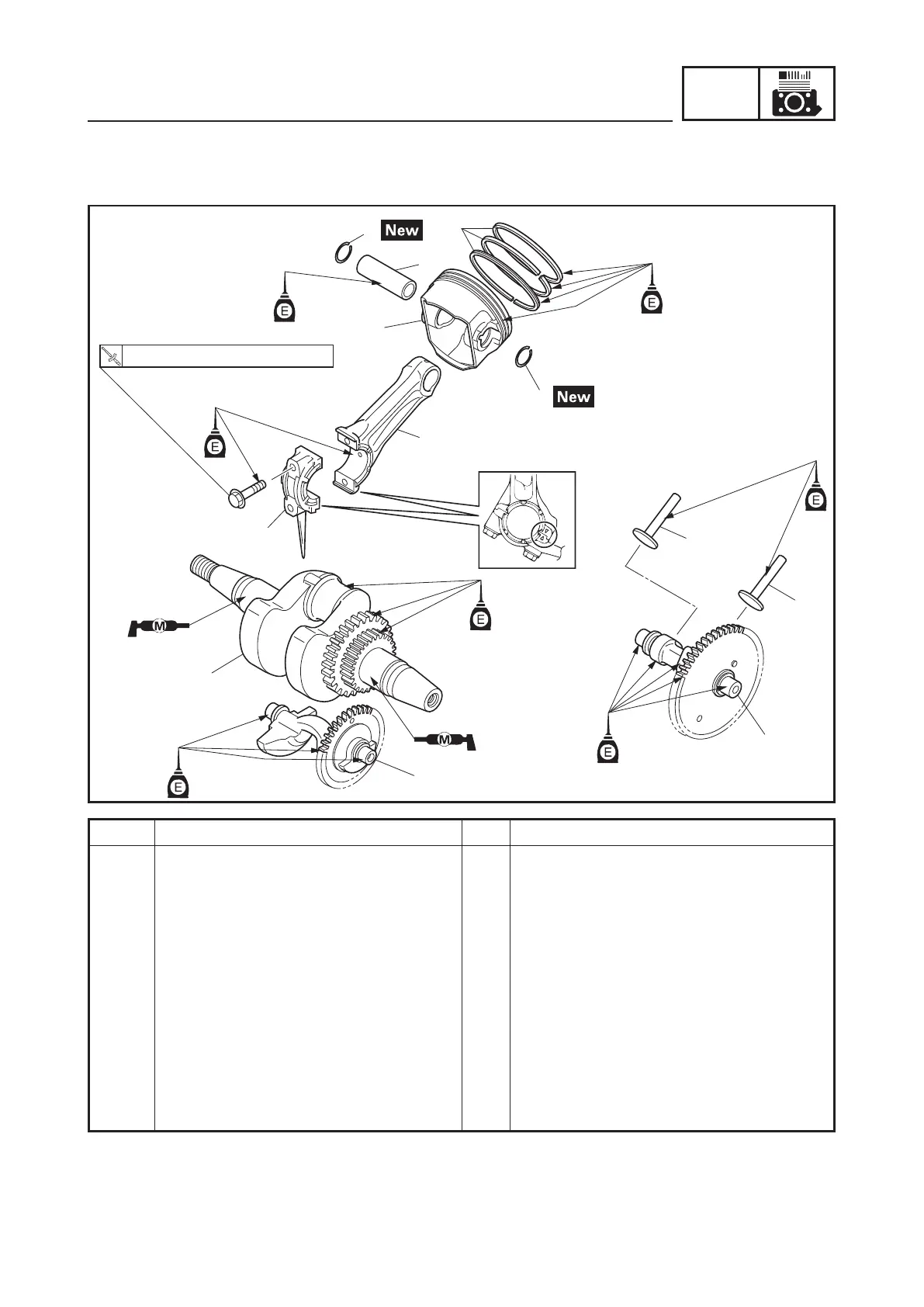

Order Job/Parts to remove Q’ty Remarks
Removing the piston, camshaft and
crankshaft
Remove the parts in the order listed.
Crankcase Refer to “CRANKCASE” on 3-18.
1 Balancer shaft 1
2 Camshaft 1
3 Valve lifter 2
4 Connecting rod cap 1
5 Crankshaft 1
6 Connecting rod 1
7 Piston pin circlip 2
8 Piston pin 1
9 Piston 1
10 Piston ring set 1
PISTON, CAMSHAFT AND CRANKSHAFT
