Yamaha EF7000 - CONTROL PANEL

5-8
ELEC
8
7
9
10
2
3
4
1
5
5
6
7 Nm (0.7 m á kgf, 5.1 ft á lbf)
0.4 Nm (0.04 m á kgf, 0.29 ft á lbf)
0.4 Nm (0.04 m á kgf, 0.29 ft á lbf)
1.4 Nm (0.14 m á kgf, 1.0 ft á lbf)
1.3 Nm (0.13 m á kgf, 0.94 ft á lbf)
1.8 Nm (0.18 m á kgf, 1.3 ft á lbf)
1.7 Nm (0.17 m á kgf, 1.2 ft á lbf)

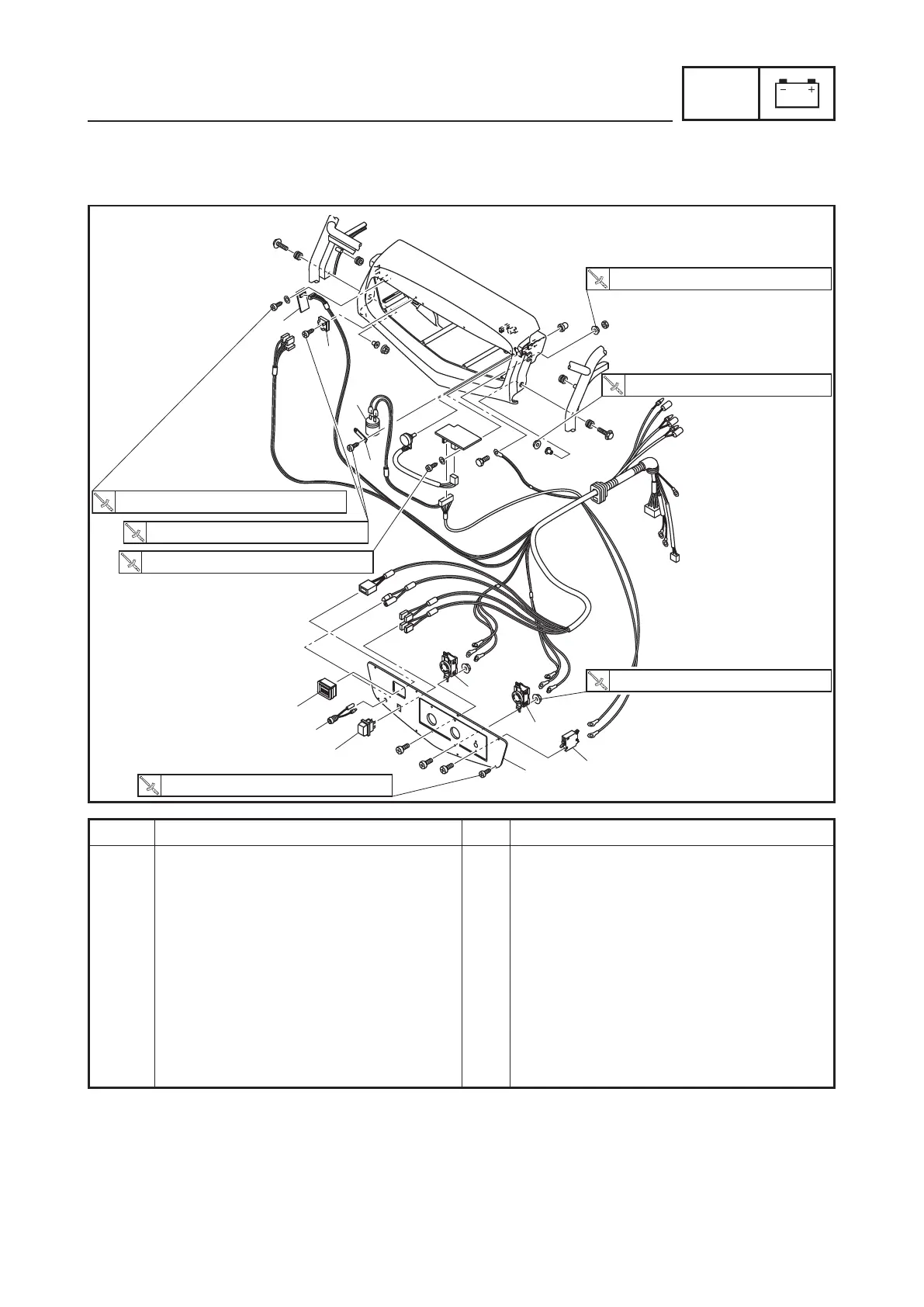

Order Job/Parts to remove Q’ty Remarks
Removing the control panel Remove the parts in the order listed.
1 Panel cover 1
2 Voltage/hour meter 1
3 Oil warning light 1
4 Engine switch 1
5
AC receptacle 2
6 AC switch (N.F.B.) 1 Lever switch
7 Oil warning unit 1
8 Rectifier 1
9 Condenser holder 1
10 Condenser 1
CONTROL PANEL
EF7000/EF7200
CONTROL PANEL
