4-7
CARB

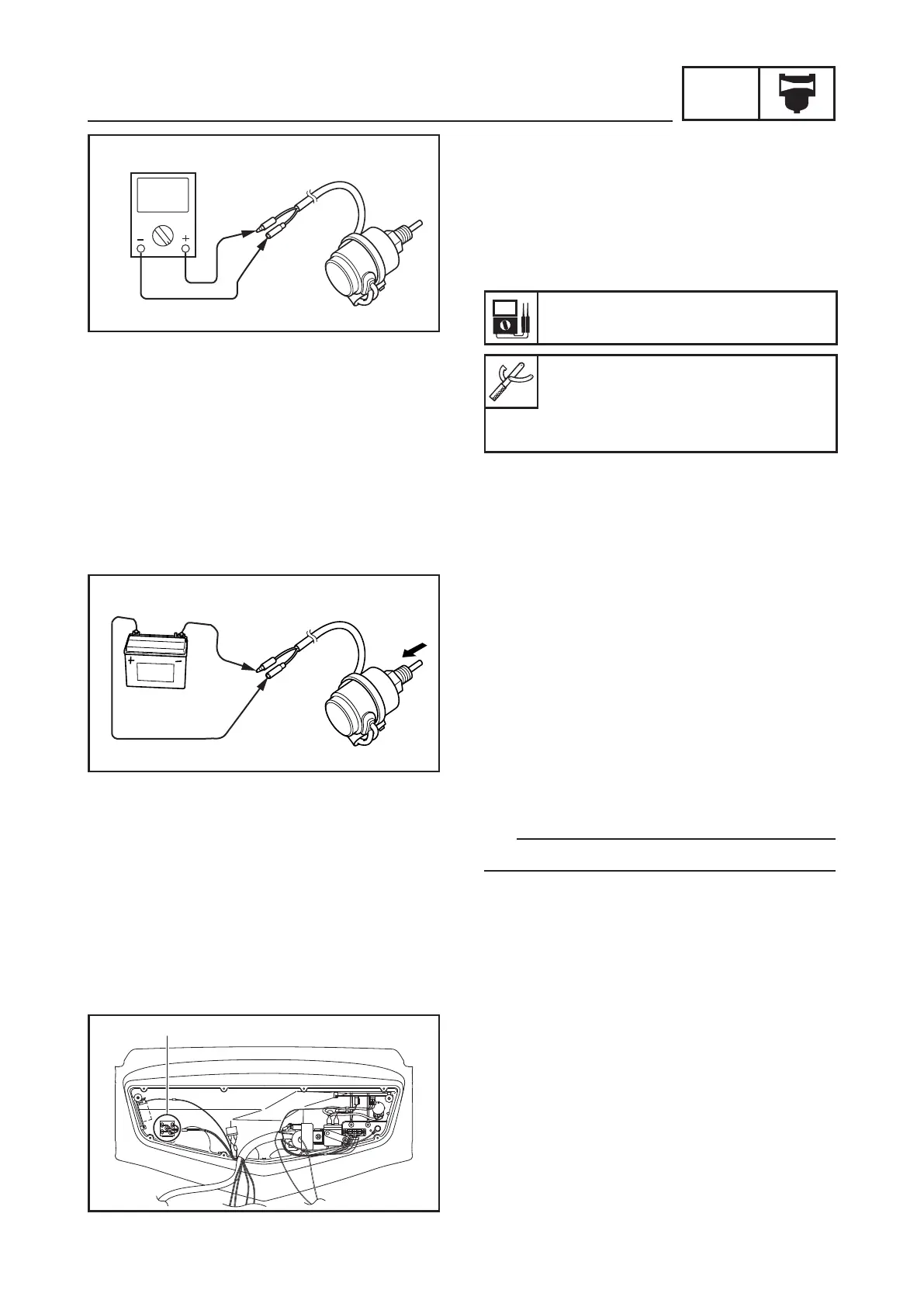

CHECKING THE FUEL CUT SOLENOID
VALVE
1. Check:
9 Fuel cut solenoid valve
Connect the pocket tester (W × 1).
Measure the fuel cut solenoid valve
resistance.
Fuel cut solenoid valve resistance:
9 W ± 10 %
Analog pocket tester:
YU-03112-C
Pocket tester:
90890-03112
Out of specification → Replace
W × 1
DISASSEMBLING THE CARBURETOR
3. Remove:
9 Panel cover
(Refer to “CONTROL PANEL” on 5-8)
9 Rectifier 1
1
2. Check:
9 Fuel cut solenoid valve operation
Check whether the sound of the valve
operation can be heard when the 12V
power from the battery is supplied to
the lead of the fuel cut solenoid valve.
Battery positive → Blue/Red
Battery negative → Blue/White
No sound heard → Replace.
Operation sound heard → Check the
rectifier.
TIP
Use a fully charged battery.
To Next Page
