Yamaha EF7000 - Economy Control System (Ef7000 E;Ef7200 E;Ef7200 De); Economy Control Solenoid

5-54
ELEC
2
7 Nm (0.7 m á kgf, 5.1 ft á lbf)
1
16 Nm (1.6 m á kgf, 12 ft á lbf)
3
16 Nm (1.6 m á kgf, 12 ft á lbf)

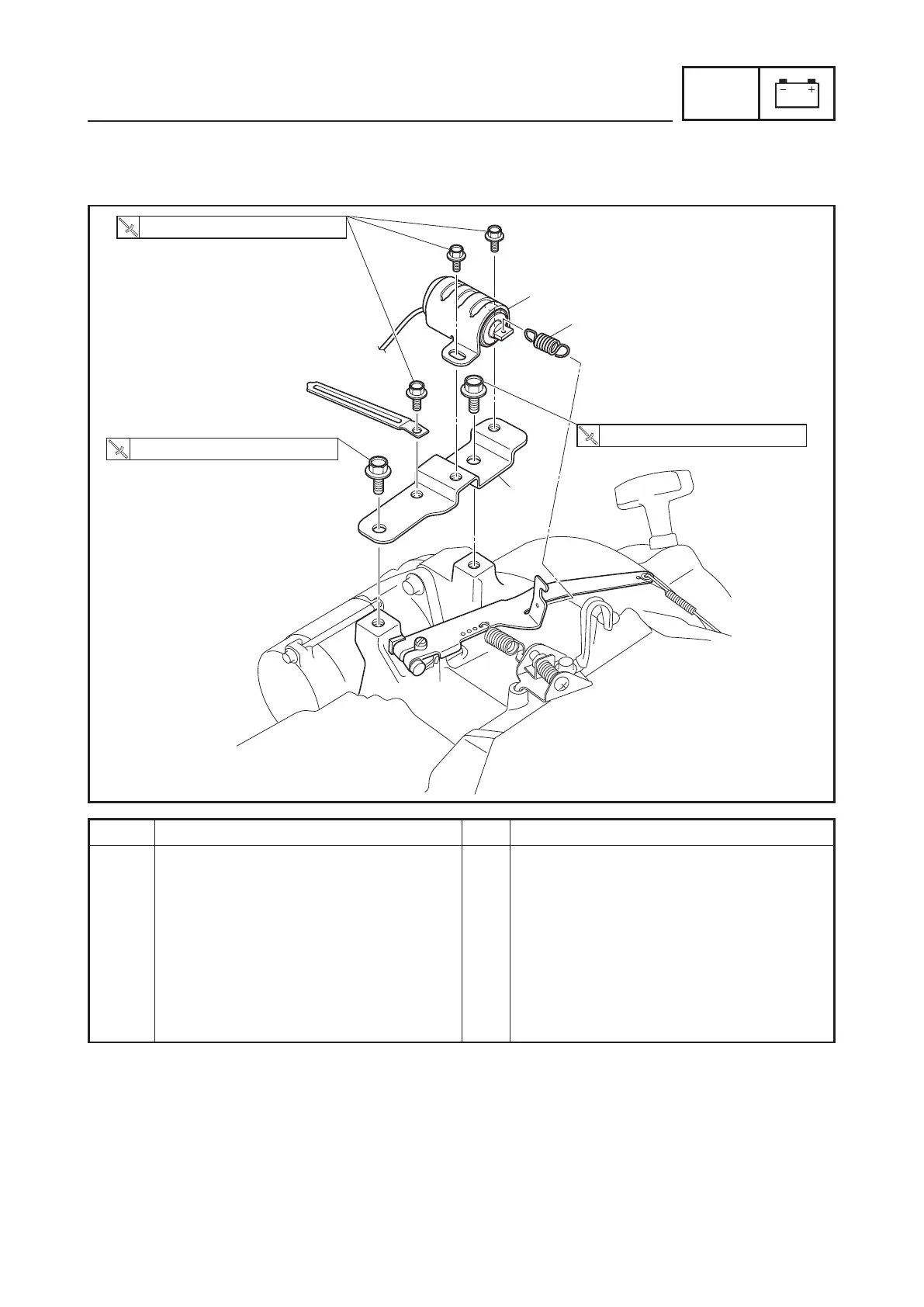

Order Job/Parts to remove Q’ty Remarks
Removing the economy control
solenoid
Remove the parts in the order listed.
Carrier frame Refer to “HANDLE AND WHEELS (FOR
EF7200DE CAN)” on 3-23.
Control box Refer to “CONTROL BOX” on 3-1.
Fuel tank Refer to “FUEL TANK, CANISTER” on 3-7.
1 Economy control solenoid 1
2 Spring 1
3 Bracket 1
ECONOMY CONTROL SYSTEM (EF7000E/EF7200E/EF7200DE)
ECONOMY CONTROL SOLENOID
ECONOMY CONTROL SYSTEM
(EF7000E/EF7200E/EF7200DE)
