2-8
CHK
ADJ
PERIODIC MAINTENANCE
MUFFLER
WARNING
The engine and muffler will be very hot
after the engine has been run.
Avoid touching the engine and muffler
while they are still hot with any part of
your body or clothing during check or
repair.
1
2
1
1
2
3
4

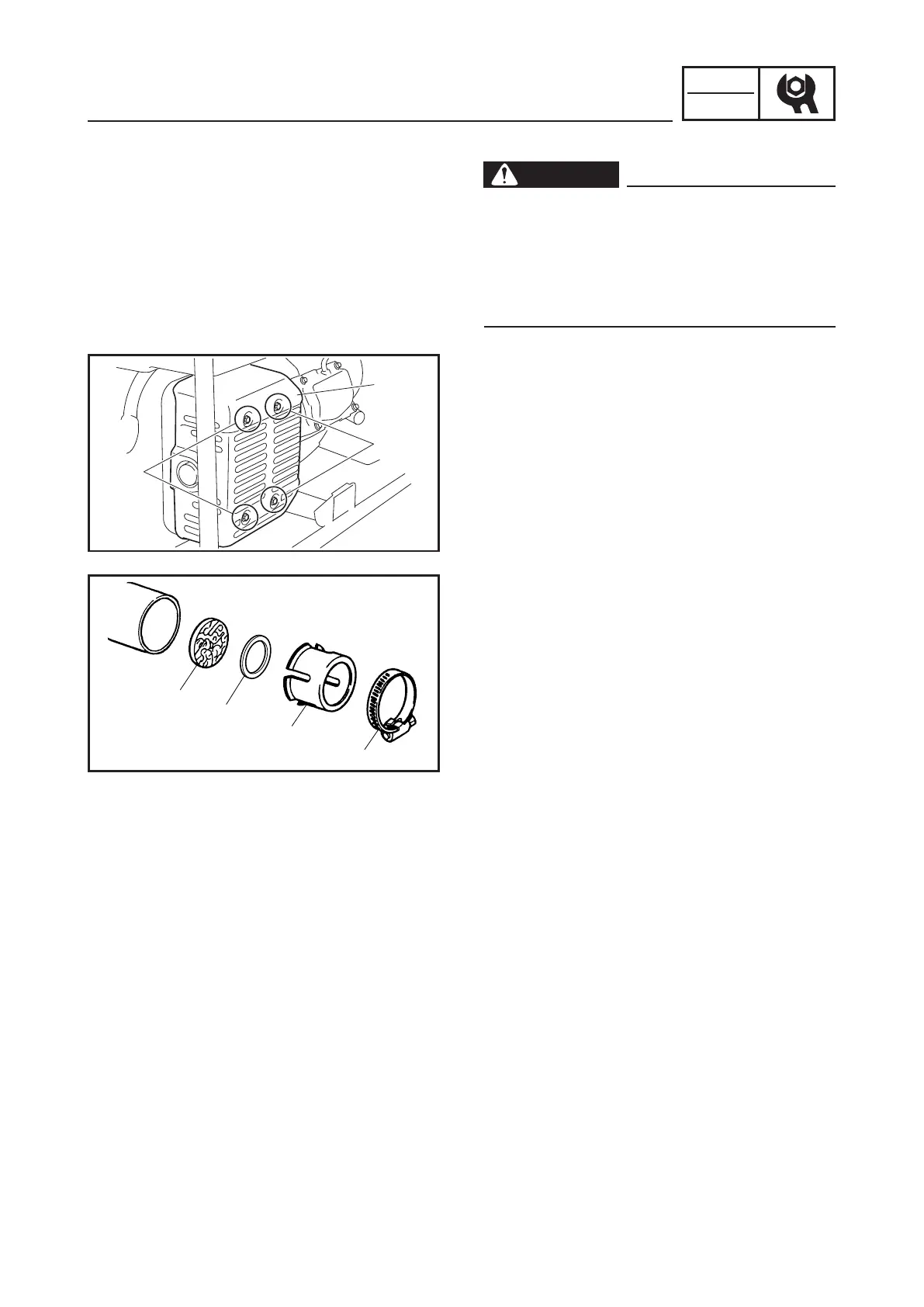

1. Remove:
9 Muffler cover bolts 1
9 Muffler cover 2
2. Remove:
9 Muffler band 1
9 Muffler cap 2
9 Muffler screen 3
9 Washer 4
3. Remove:
9 Muffler
(Refer to “MUFFLER” on 3-10)
To Next Page
