Yamaha EF7000 - Except for EF7200 DE

3-3
ENG

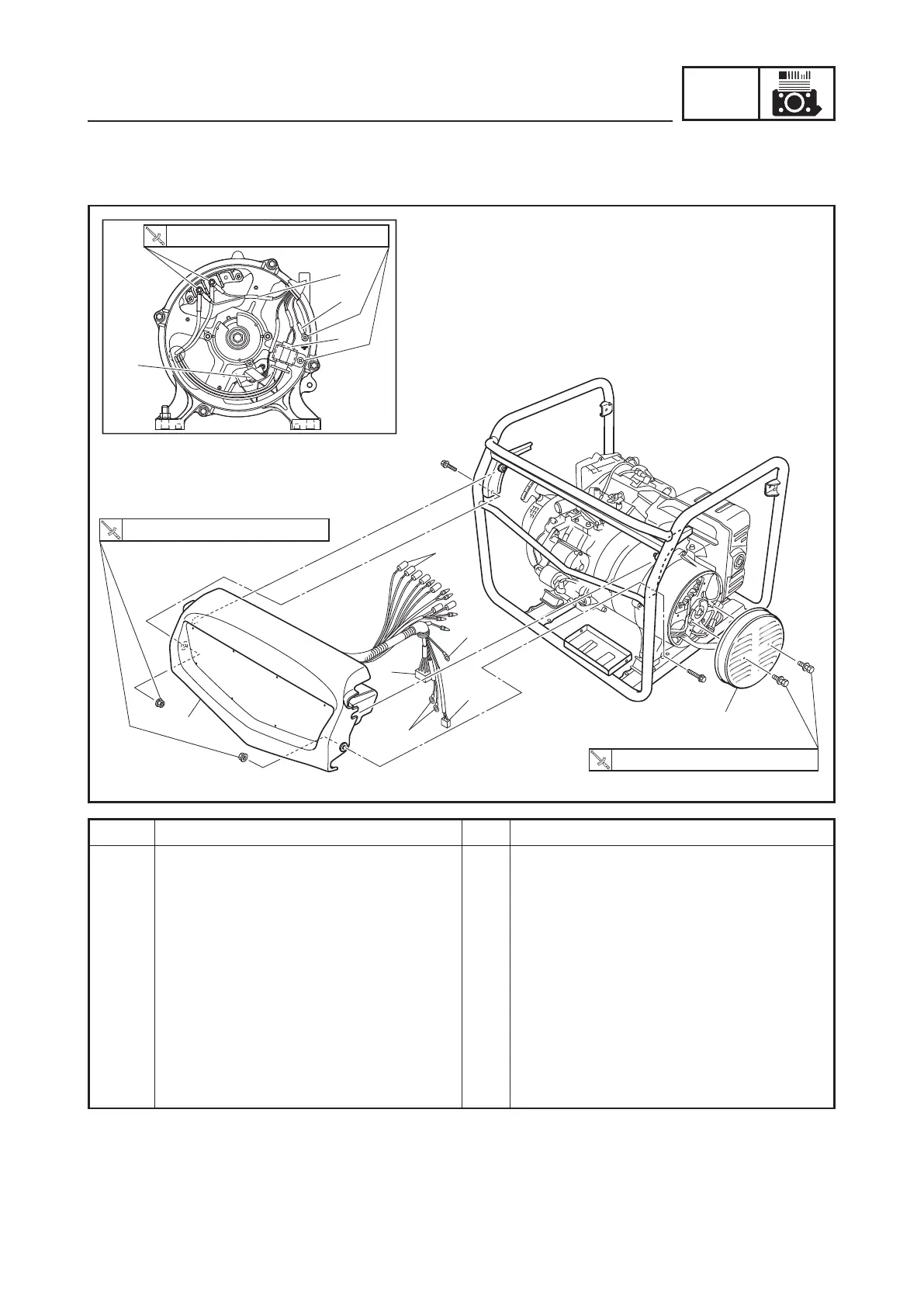

CONTROL BOX
1
2
3
4
5
6
7
7 Nm (0.7 m á kgf, 5.1 ft á lbf)
7 Nm (0.7 m á kgf, 5.1 ft á lbf)
5
6
3
4
3.8 Nm (0.38 m á kgf, 2.8 ft á lbf)
Order Job/Parts to remove Q’ty Remarks
Removing the control box Remove the parts in the order listed.
Negative battery lead Disconnect.
EF7000E/EF7200E
Fuel tank Refer to “FUEL TANK, CANISTER” on 3-7.
1 Generator cover 1
2 Control box 1
3 Ground lead 1
4 Stator assembly (main coil) lead 2
5 Stator assembly (sub coil) coupler 1
6 Exciter field coil coupler 1
7 Economy control solenoid lead con-
nector
2 EF7000E/EF7200E
Except for EF7200DE
